885152 FKL

Net price:

17.013 €/pcs

Main warehouse:

Out of stock

0 pcs

External stock:

On stock

3 pcs

Product number:

885152

Brand:

FKL

Product name:

bearing

Sizes:

15.918X30X69.3/38.9

Replacements:

128558C91 IHC F04100041R GASPARDO AA21015 JOHN DEERE AA35741 JOHN DEERE GA2022 KINZE 751290 AC70593891 TORO ST 022-096 CASE IB 07330 18073305

Inquiry Subscribe

Product details from catalogue

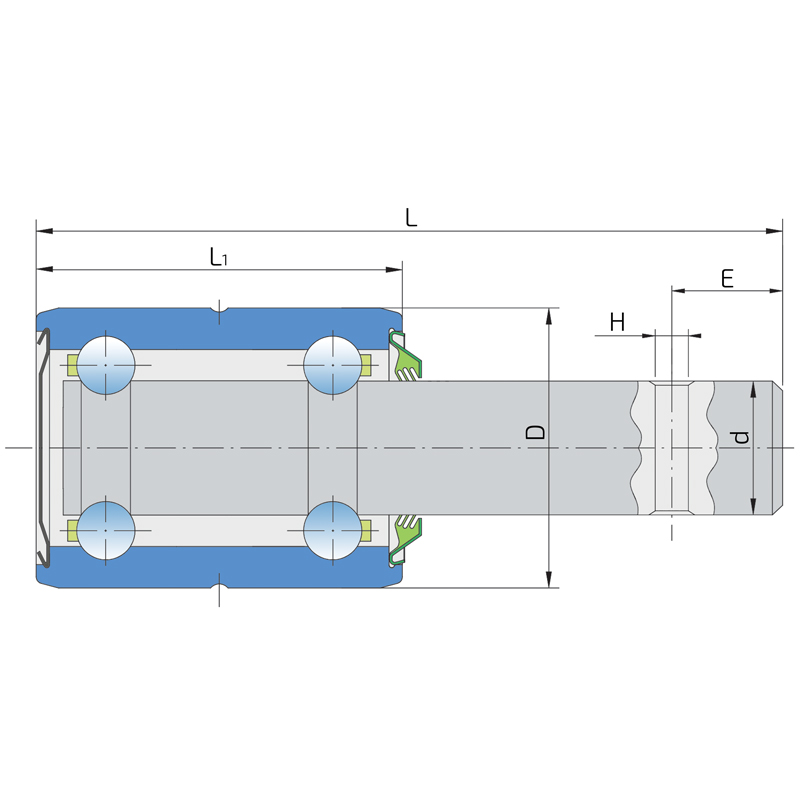

Drawings:

885152 FKL

Technical datasheet:

d	Bore diameter	15.918
D	Outside diameter	30
L	Total length	69.3
L1	Total flange length	38.9
H	Hole diameter	6.5
E	Hole center line distance to the side face of the inner ring	11.2
kg	Mass	0.178
Cdyn	Dynamic load rating	5.15
Co	Static load rating	2.94
Pu	Fatigue load limit	0.124

Interchange:

OEM	Manufacturer	Comments
128558C91	CASE
751290	TORO
AA21015	JOHN DEERE
AA35741	JOHN DEERE
AC70593891	TORO
F04100041R	GASPARDO
FA2022	KINZE
GA2022	KINZE
ST022-096	CASE

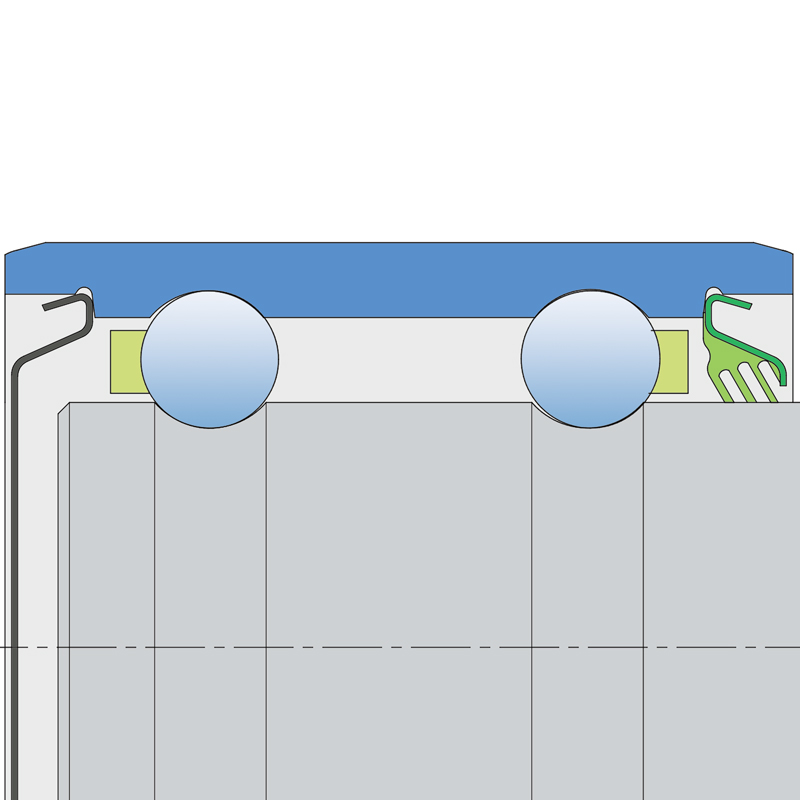

SHEET METAL SHIELD / T SEAL

Sealing SHEET METAL SHIELD / T SEAL Sheet metal shield on one side and triple seal on the other. The sheet metal shield eliminates the possibility of contamination, while the triple seal on the other side provides long-lasting protection against the penetration of all types of contaminants.
