Product number:

885154 B

Brand:

Product name:

bearing

Sizes:

15.918X30X69.3/38.9

Replacements:

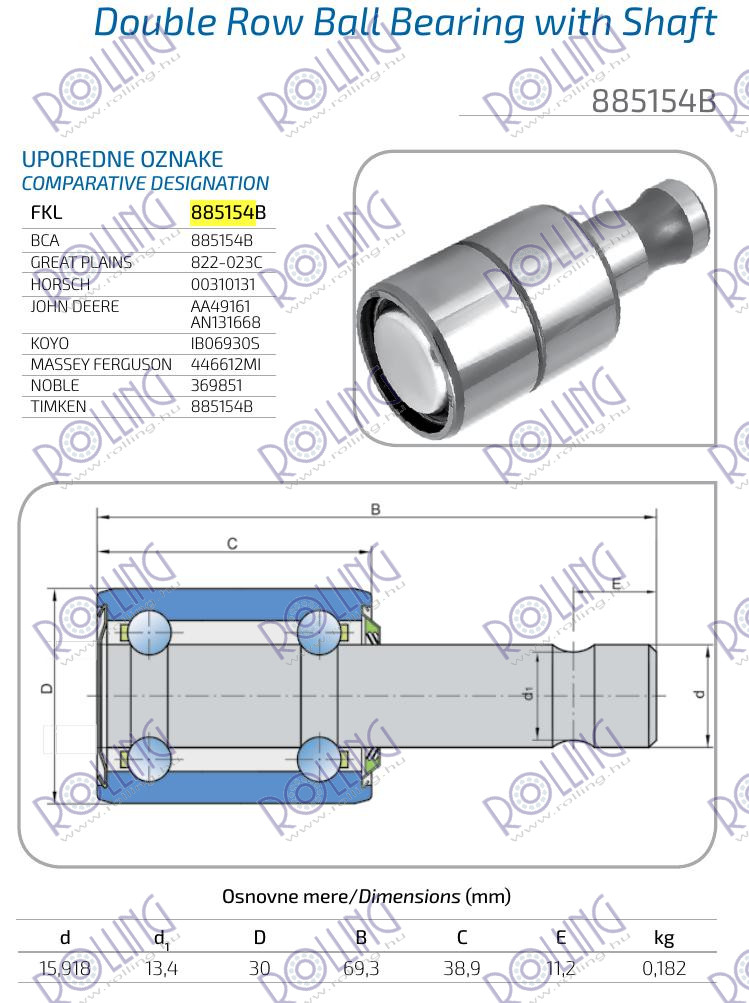

IB 06930 SRR2 W2289-3.T1545 WB0 1750 AN131668 FPS 22 WB0 30X15.88X69-I A01 446612M1 274844R91 00310131 PN00043 1806930 SL 1806930 S AA38106

Inquiry Subscribe

885154B.1 FKL

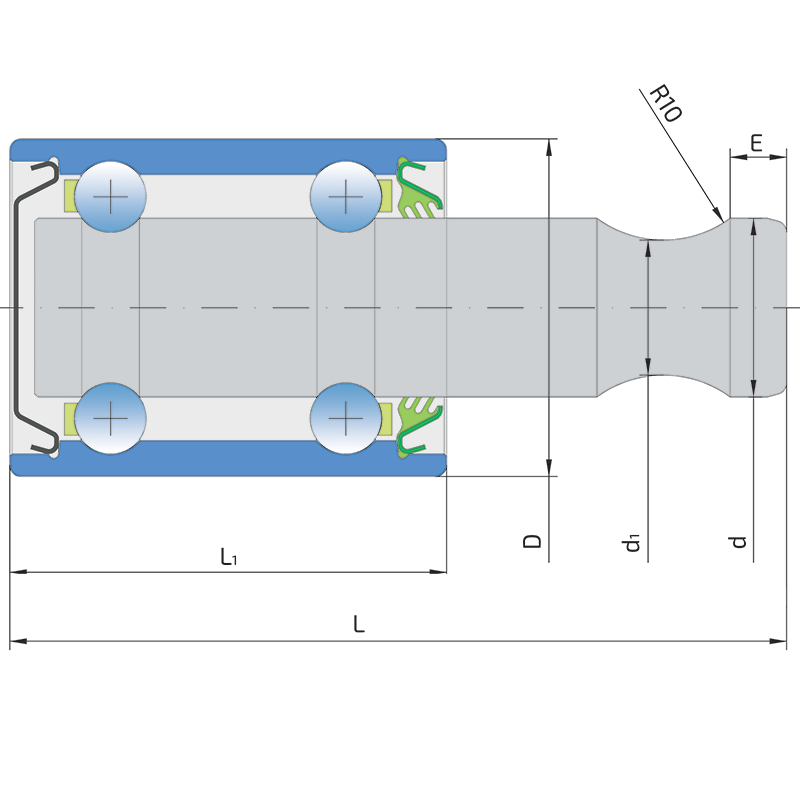

Technical datasheet:

d	Shaft diameter	15.88
d1	Shaft diameter at the location of the circular groove	12
D	Outside diameter	30
L	Total length	69
L1	Total flange length	38.8
E	Length of shaft diameter	5
kg	Mass	0.183
Cdyn	Dynamic load rating	5.15
Co	Static load rating	2.94
Pu	Fatigue load limit	0.124

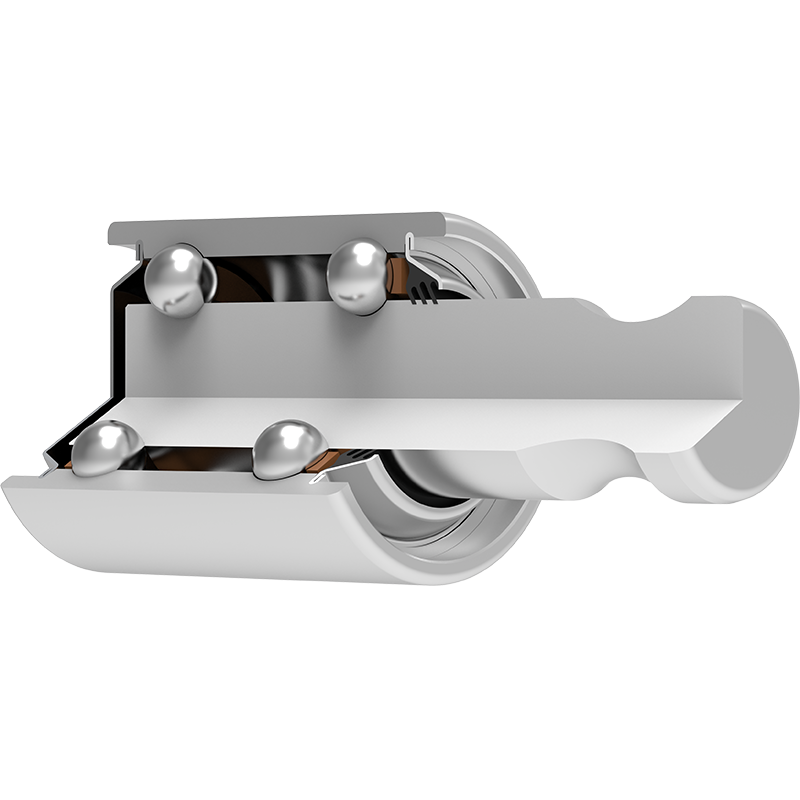

SHEET METAL SHIELD / T SEAL

Sealing SHEET METAL SHIELD / T SEAL Sheet metal shield on one side and triple seal on the other. The sheet metal shield eliminates the possibility of contamination, while the triple seal on the other side provides long-lasting protection against the penetration of all types of contaminants.
