BW1-457523 FKL

Net price:

13.779 €/pcs

Main warehouse:
On stock
10 pcs

Product number:

BW1-457523

Brand:

FKL

Product name:

bearing

Sizes:

45X75X23/15 B:23 C:15

Replacements:
DAC 45750023/15 GB 10721 S03 81104575

Inquiry Subscribe

Product details from catalogue

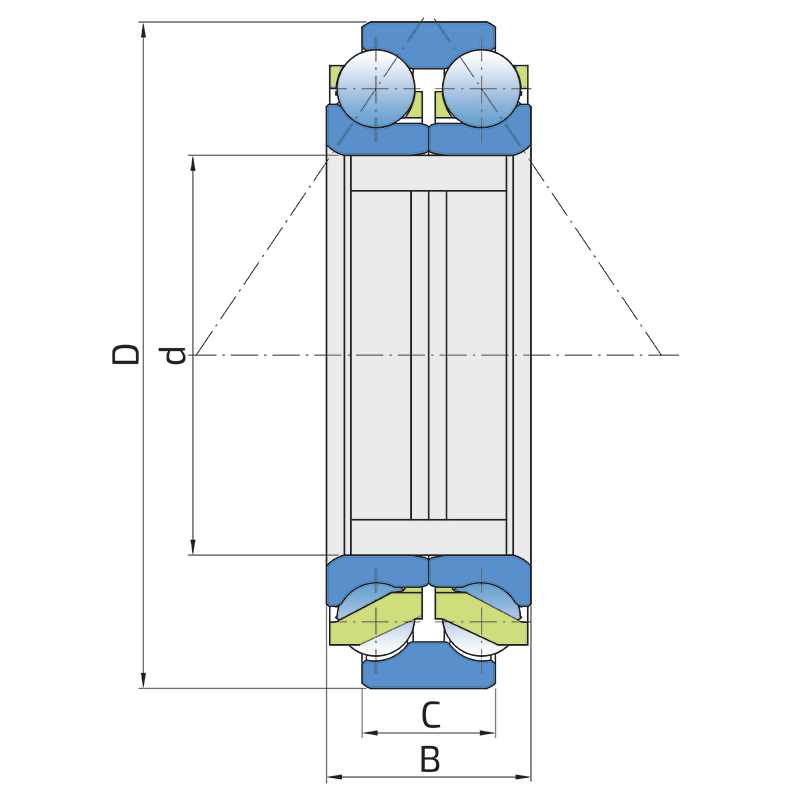

Drawings:

BW1 - 457523 FKL


Technical datasheet:
Cdyn Dynamic load rating 35
Co Static load rating 34
D Outside diameter 75
d Bore diameter 45
C D-shape hole cut out dimension 15
kg Mass 0.345
B Width inner ring 23
α Contact angle 34

Interchange:
OEM Manufacturer Comments
2085190X KUHN
GB10721S03 SNR
GB12508 KUHN
PA4575002715CS PFI
PW4575002715CS PFI

Sealing
