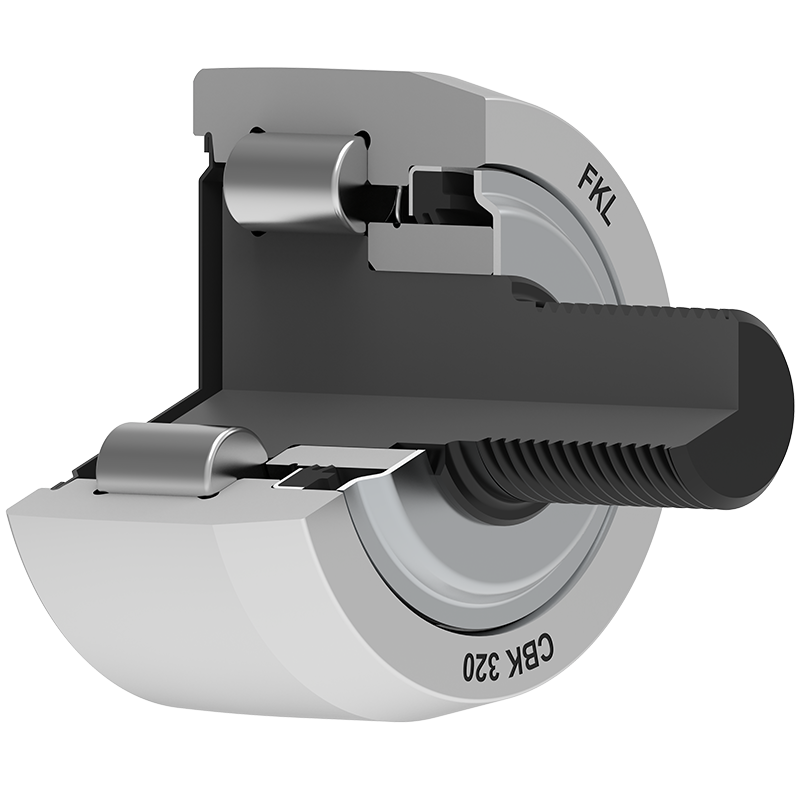

CBK 320 FKL

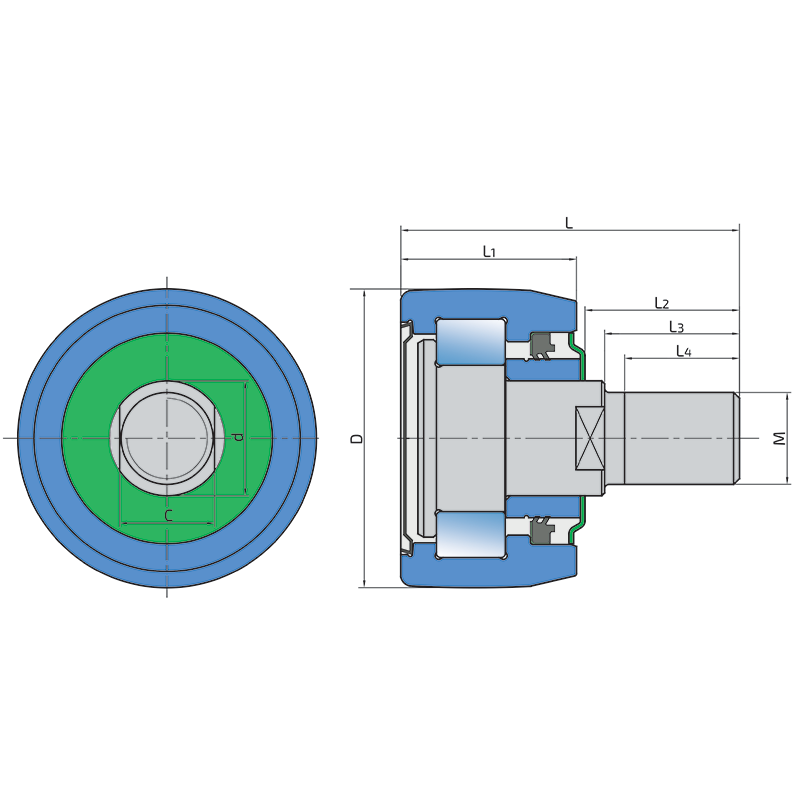

Technical datasheet:

Cdyn	Dynamic load rating	37.8
Co	Static load rating	36
D	Outside diameter	52
d	Bore diameter	20
M	Outher Thread	M16x1.5
C	D-shape hole cut out dimension	16.5
L	Total length	59
L1	Total flange length	30.6
L2	Bearing width	27
kg	Mass	2.8

Interchange:

OEM	Manufacturer	Comments
5223890230	SIPMA
5511/00-539	UNIA
CBK-320	PBF

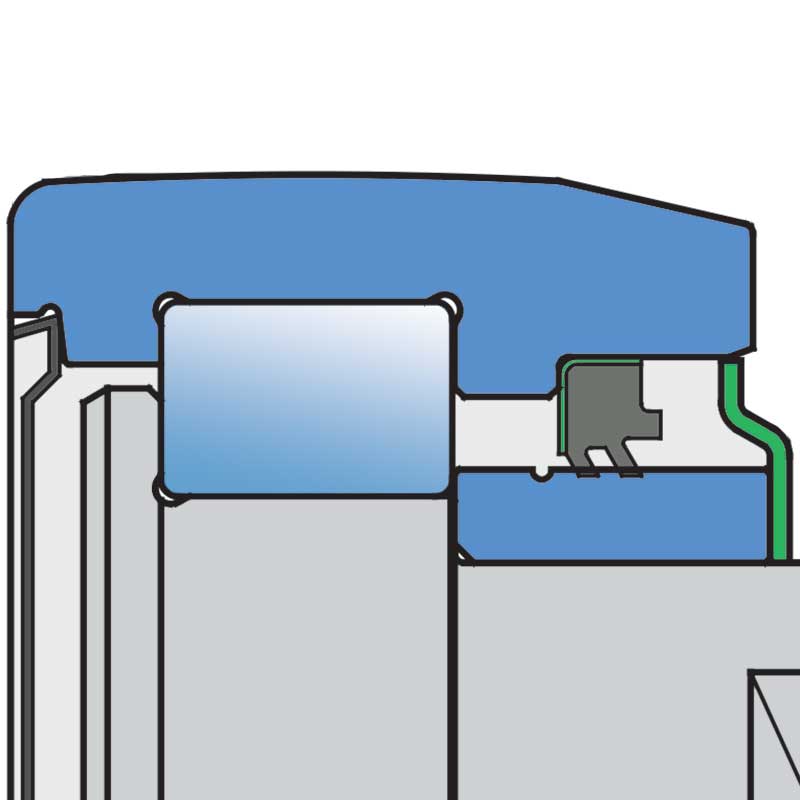

SHEET METAL SHIELD / D SEAL+METAL FLINGER RING

Front side is totally sealed with a Sheet metal shield which prevents all kind of contaminations. The base side is protected with 2-lip seal and the Metal flinger ring to protect the 2-lip seal from mechanical damages.
