GW 208PP17 FKL

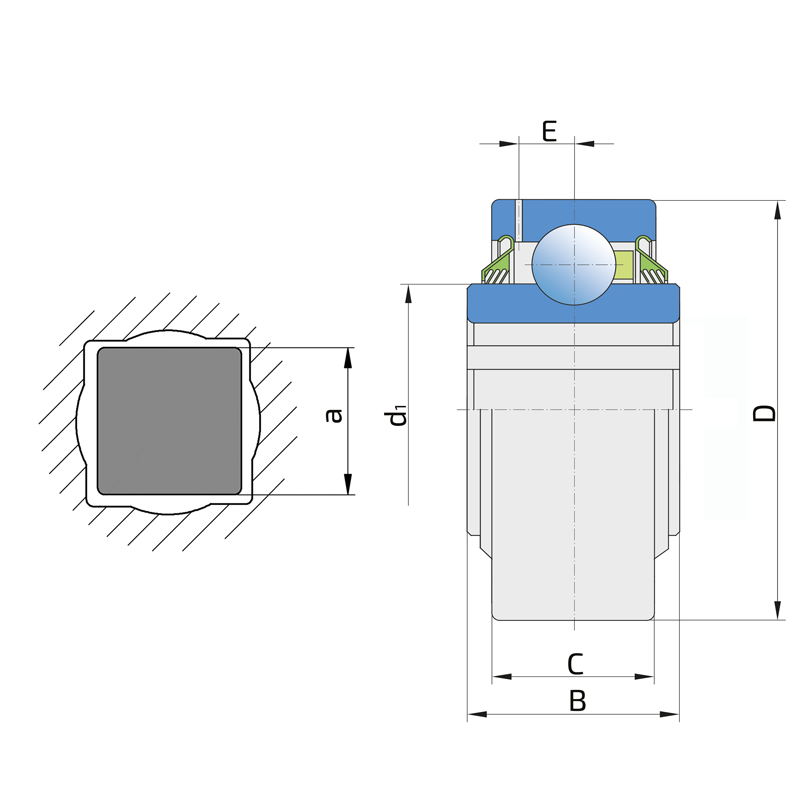

Technical datasheet:

D	Outside diameter	85.74
B	Width inner ring	36.5
C	Width outer ring	30.1
d1	Outer diameter inner ring	52
E	Distance from raceway centre to the hole for lubrication	6.5
a	Shaft size	28.6
kg	Mass	0.925
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
Pu	Fatigue load limit	0.832

Interchange:

OEM	Manufacturer	Comments
DC208TTR17	BCA
DC208TTR17	FEDERAL MOGUL
GW208PP17	INA
GW208PP17	FAFNIR
GW208PP17	TORRINGTON

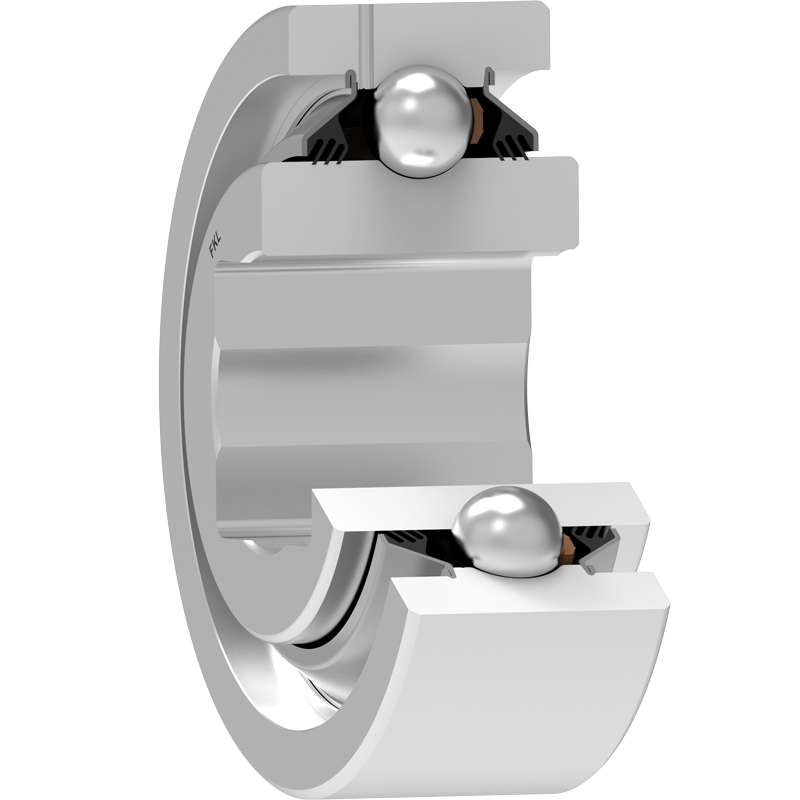

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
