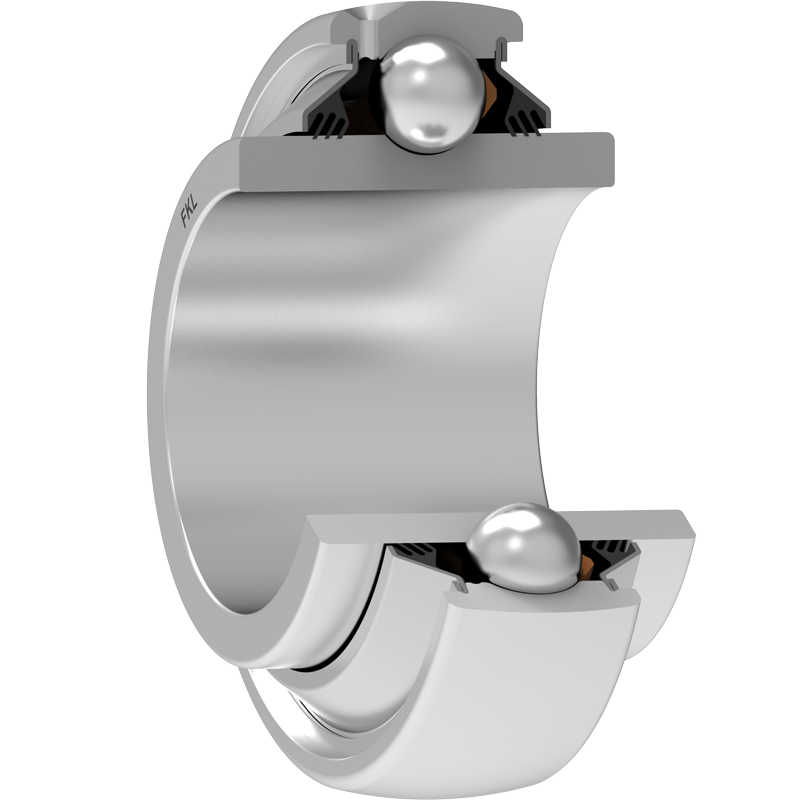

GW 209PPB13 FKL

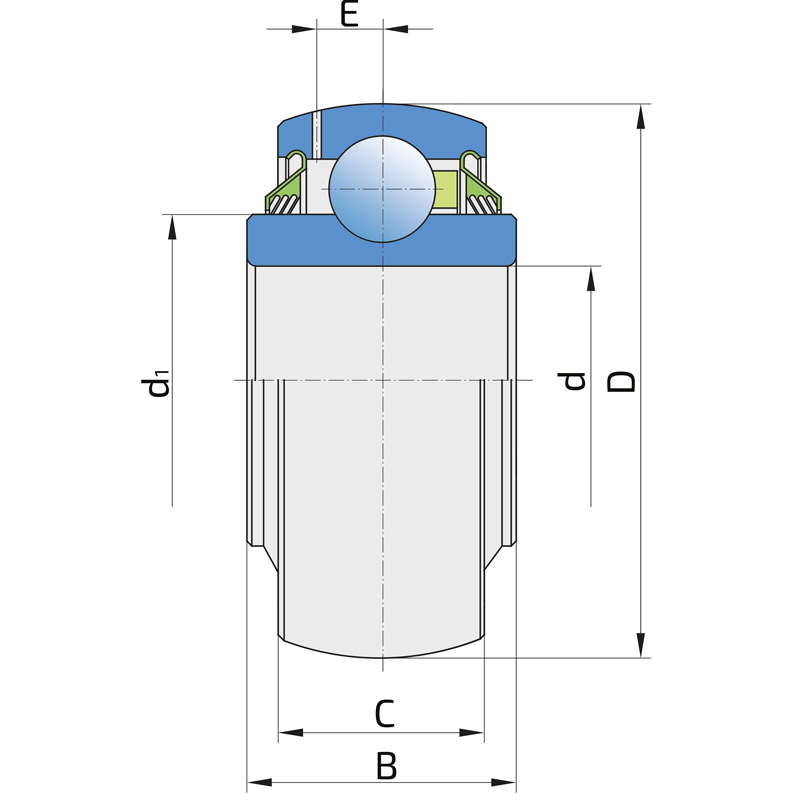

Technical datasheet:

d	Bore diameter	45.24
D	Outside diameter	85
B	Width inner ring	36.53
C	Width outer ring	30
d1	Outer diameter inner ring	56.6
E	Distance from raceway centre to the hole for lubrication	6.5
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
kg	Mass	0.65
Pu	Fatigue load limit	0.857

Interchange:

OEM	Manufacturer	Comments
AA28184	JOHN DEERE
DS209TTR13	BCA
GW209PPB13	INA
GW209PPB13	FAFNIR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
