GW 209PPB30 FKL

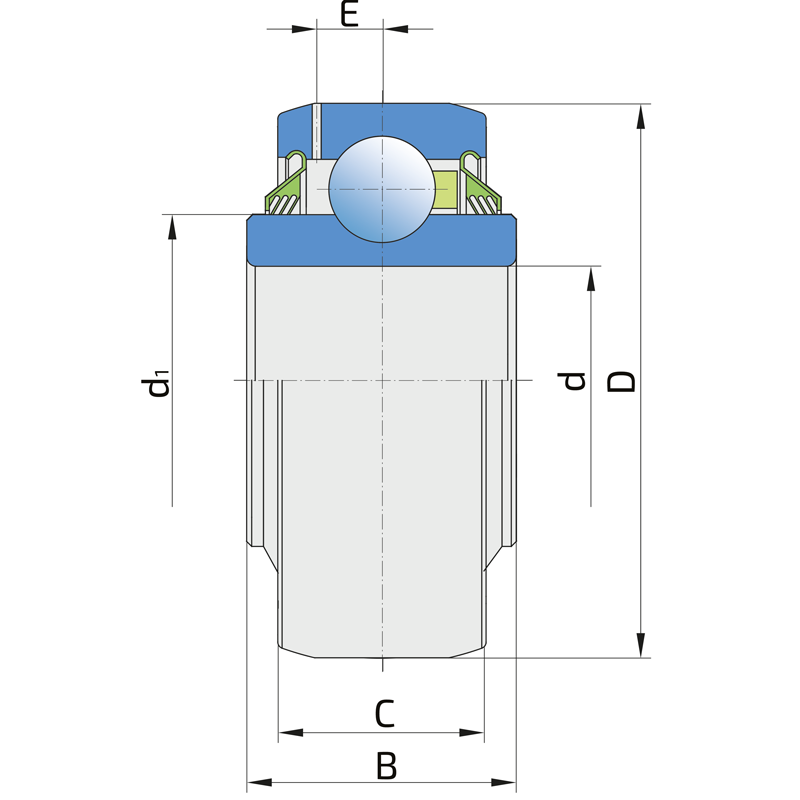

Technical datasheet:

d	Bore diameter	44.96
D	Outside diameter	88.7
B	Width inner ring	42.86
C	Width outer ring	32
d1	Outer diameter inner ring	56.6
E	Distance from raceway centre to the hole for lubrication	6.5
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
kg	Mass	0.92

Interchange:

OEM	Manufacturer	Comments
GW209PPB23	PEER
GW209PPB30	INA

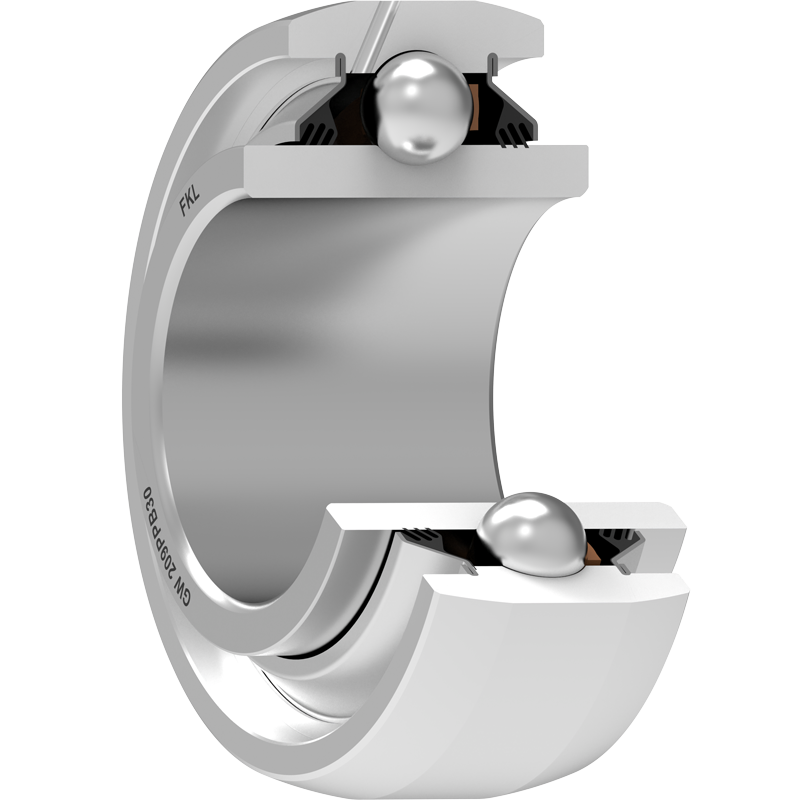

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
