GW 209PPB4 FKL

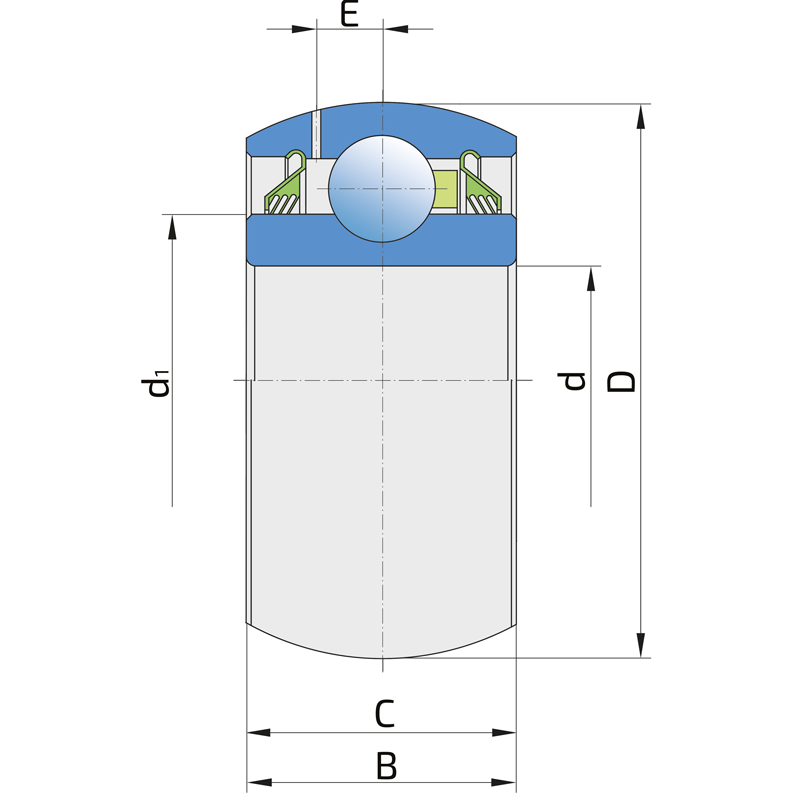

Technical datasheet:

d	Bore diameter	39
D	Outside diameter	85
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	56.6
E	Distance from raceway centre to the hole for lubrication	6.5
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
kg	Mass	0.75

Interchange:

OEM	Manufacturer	Comments
24RG3-209E3	LINK BELT
3AC0911/2D1	NTN
DS209TTR4	BCA
GW209PPB4	FAFNIR
GW209PPB4	INA
GW209PPB4	TORRINGTON

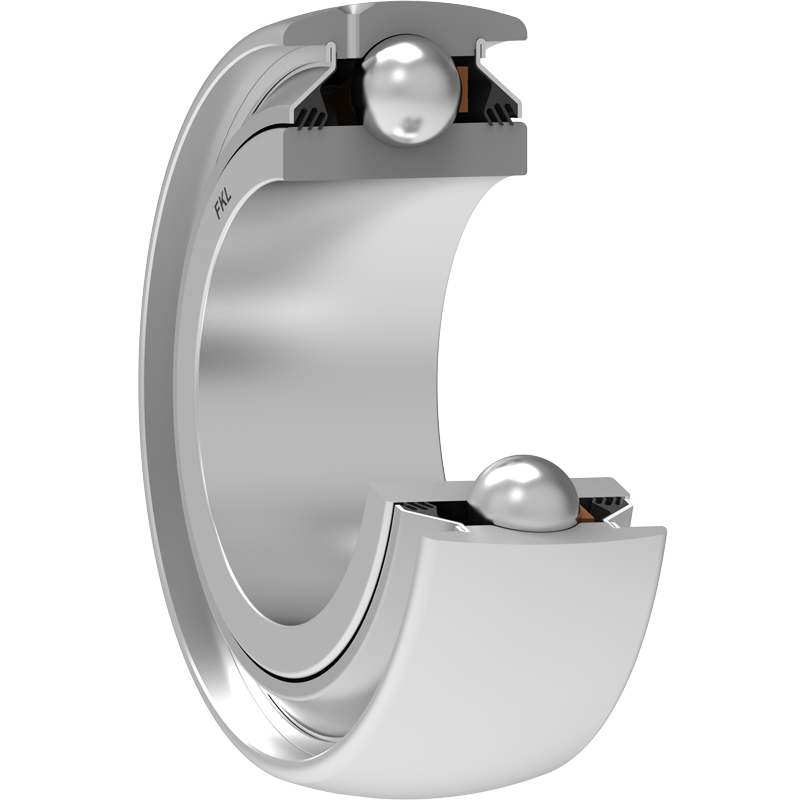

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
