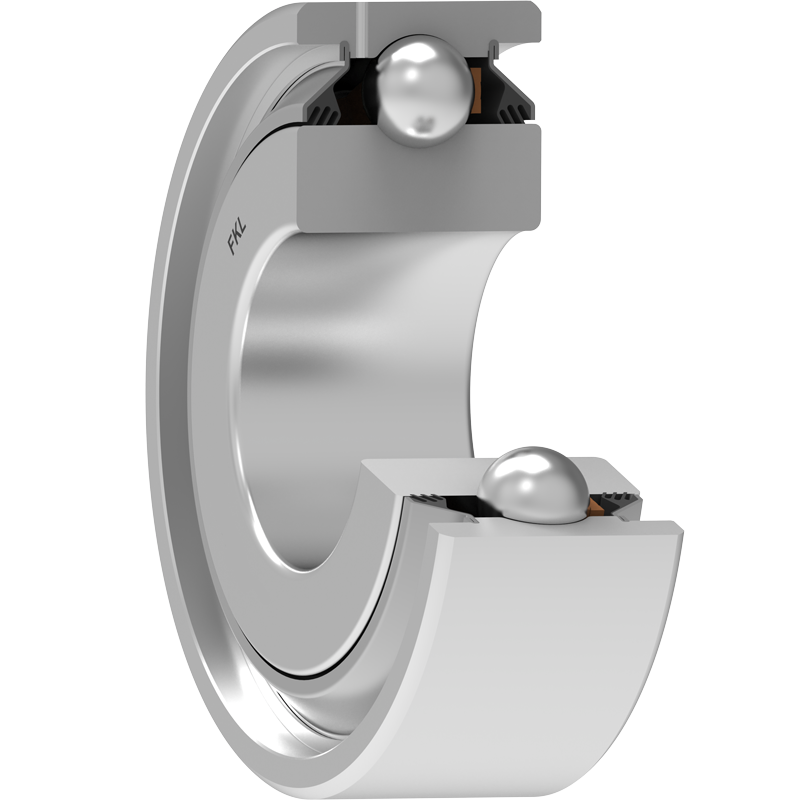

GW 210PP3 FKL

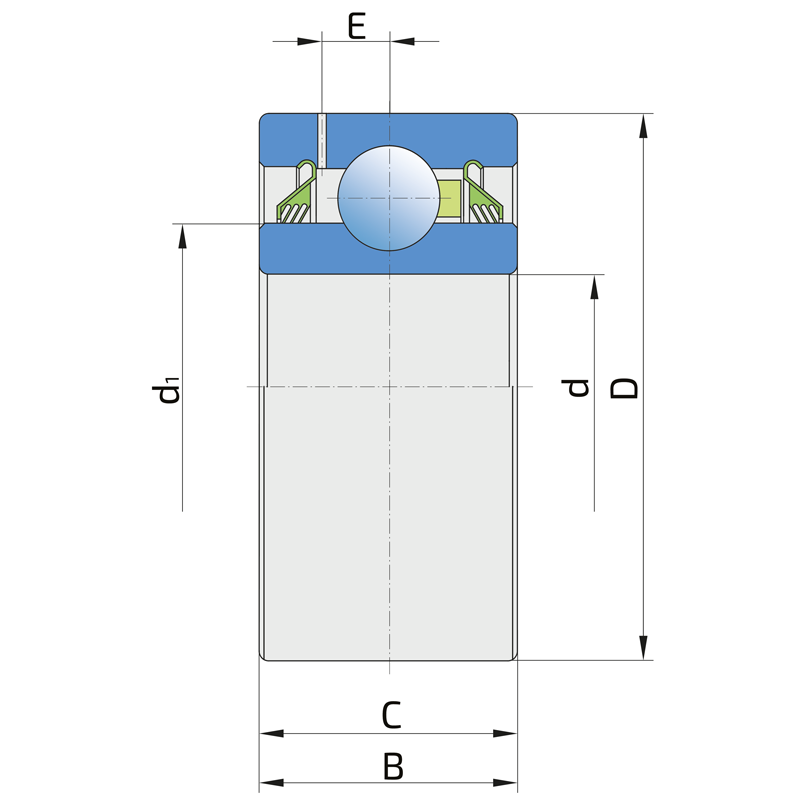

Technical datasheet:

d	Bore diameter	35.73
D	Outside diameter	90
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.6
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
kg	Mass	1.02

Interchange:

OEM	Manufacturer	Comments
GW210PP3	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
