GW 210PP4 FKL

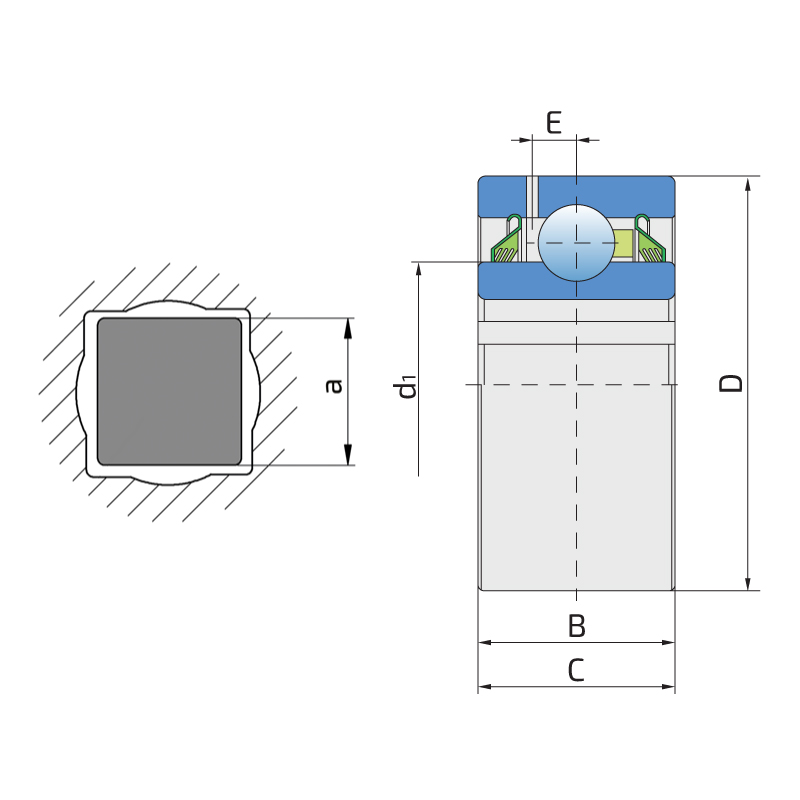

Technical datasheet:

D	Outside diameter	90
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.6
a	Hexagonal bore	30
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
kg	Mass	1.048

Interchange:

OEM	Manufacturer	Comments
7AS10-11/8D1	NTN
GW210PP4	INA
GW210PP4	FAFNIR

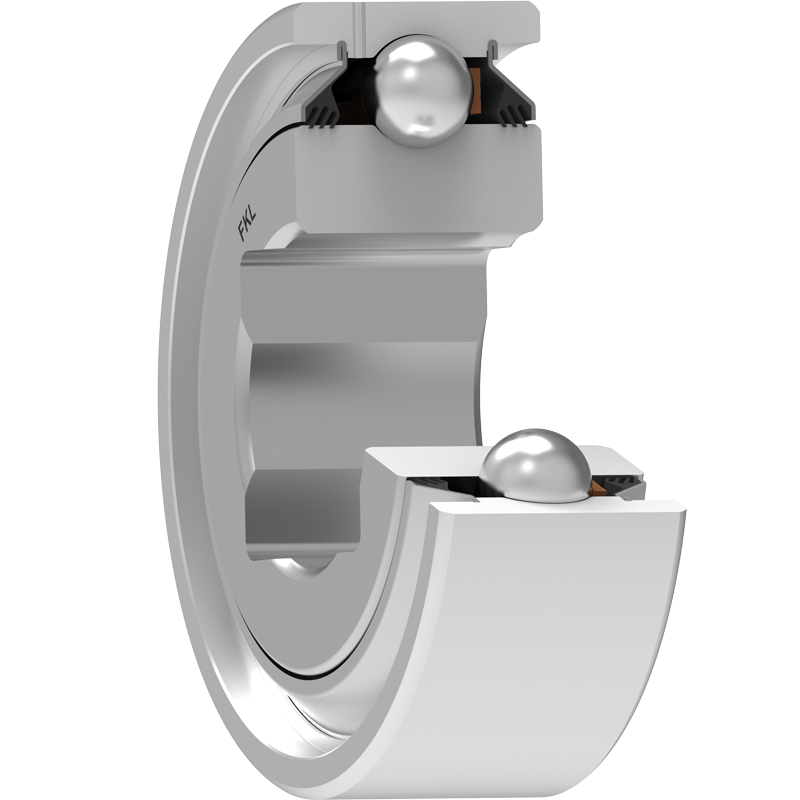

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
