GW 210PP9 FKL

Technical datasheet:

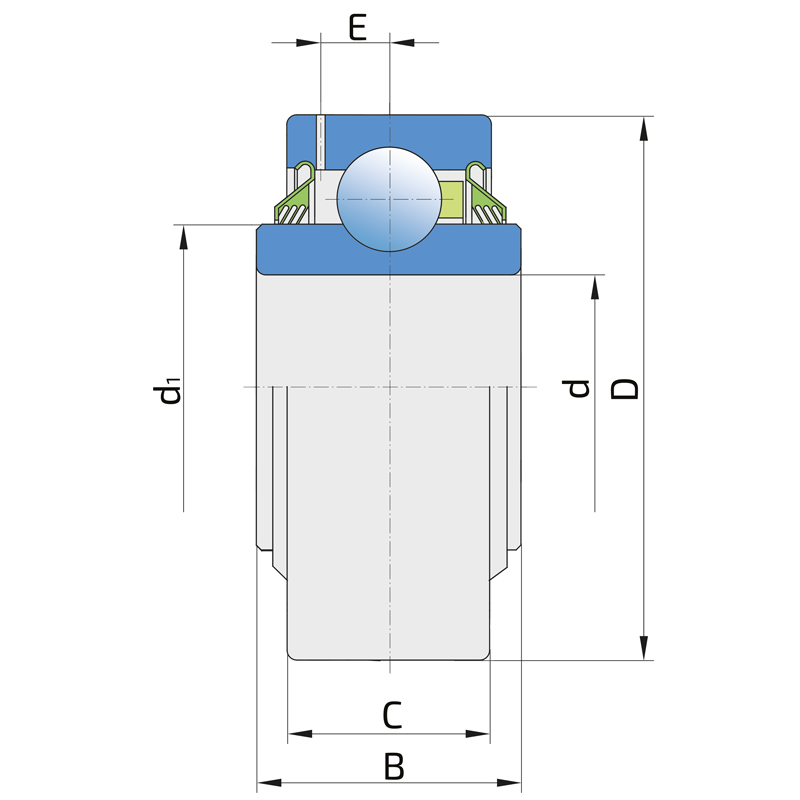

d	Bore diameter	49.4
D	Outside diameter	90
B	Width inner ring	36.53
C	Width outer ring	23
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.6
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
kg	Mass	0.79

Interchange:

OEM	Manufacturer	Comments
GW210PP9	INA

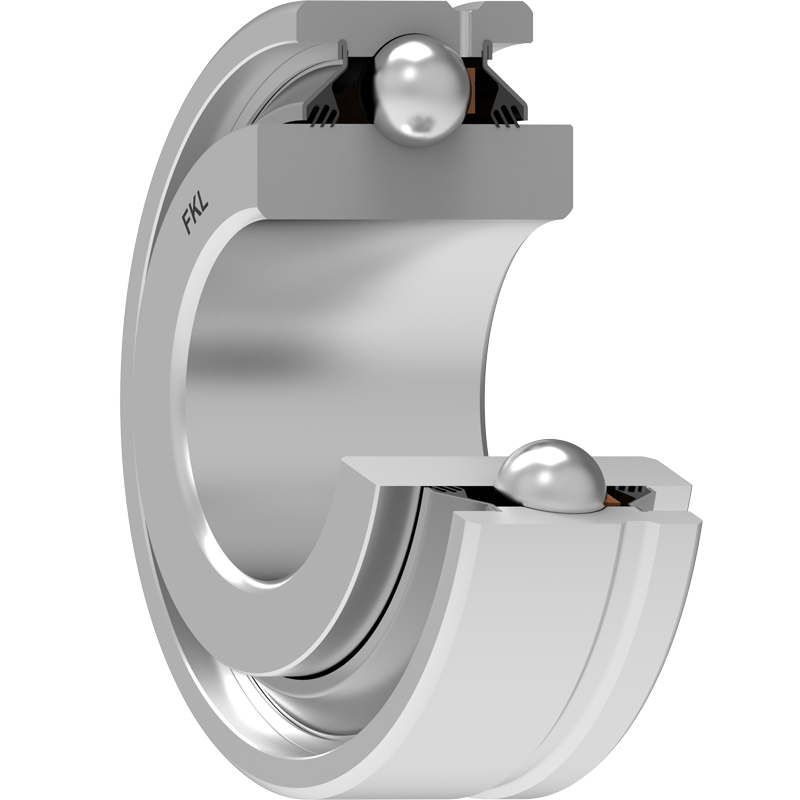

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
