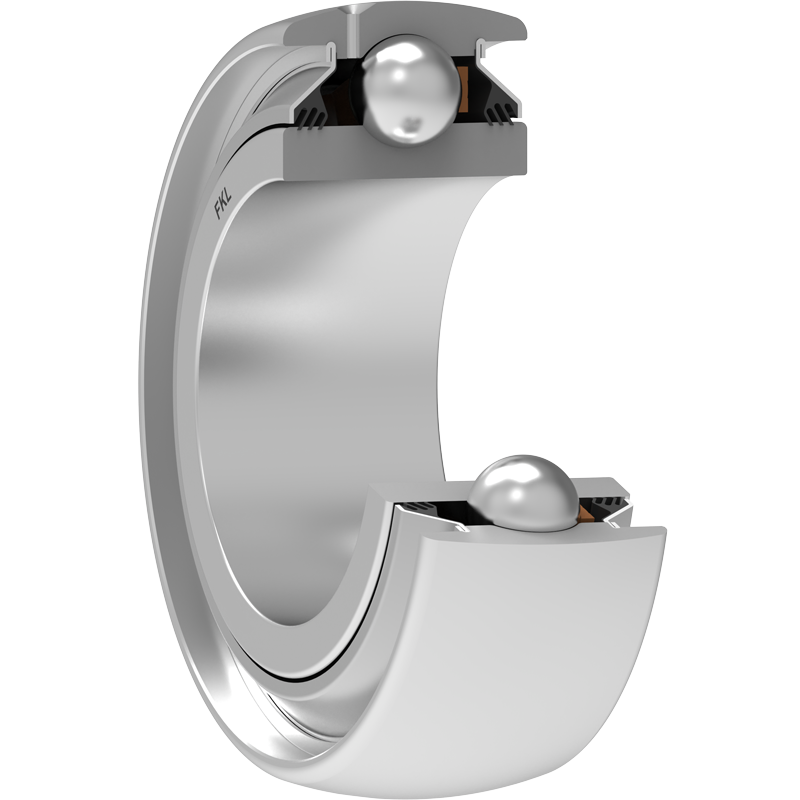

GW 210PPB2 FKL

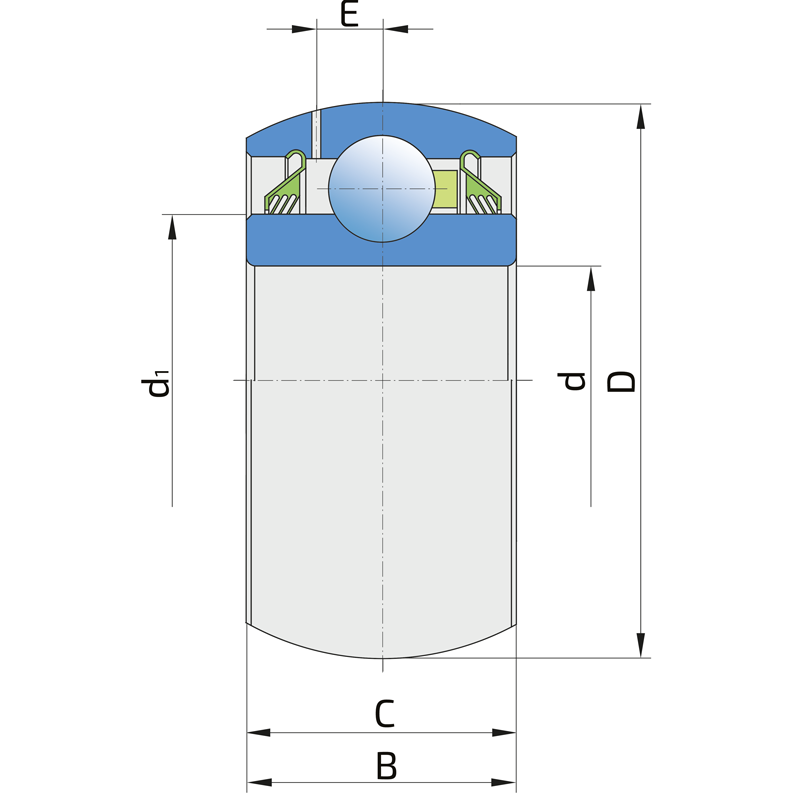

Technical datasheet:

d	Bore diameter	49.23
D	Outside diameter	90
B	Width inner ring	30.18
C	Width outer ring	30
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.6
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
kg	Mass	0.68

Interchange:

OEM	Manufacturer	Comments
31RG3-210E3	LINK BELT
3AC10-115/16D1	NTN
DS210TTR2	BCA
GW210PPB2	INA
GW210PPB2	FAFNIR
GW210PPB2	TORRINGTON

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
