GW 210PPB4 FKL

Technical datasheet:

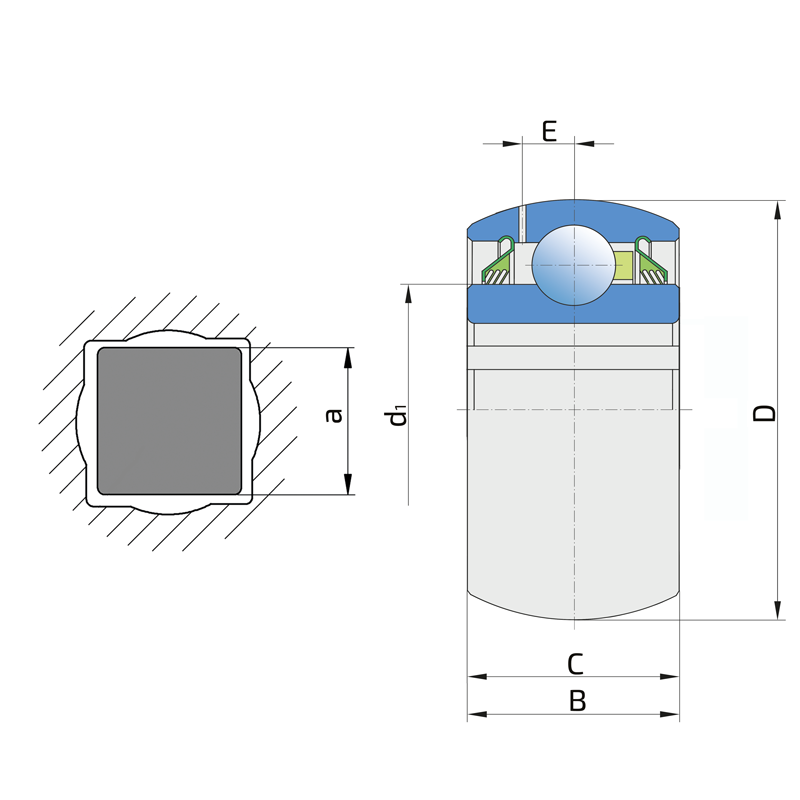

D	Outside diameter	90
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.6
a	Shaft size	30
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
kg	Mass	0.794

Interchange:

OEM	Manufacturer	Comments
18SG3-210E3	LINK BELT
DS210TTR4	BCA
DS210TTR4	FEDERAL MOGUL
GW210PPB4	INA
GW210PPB4	FAFNIR
GW210PPB4	TORRINGTON

T SEAL / T SEAL (2T)

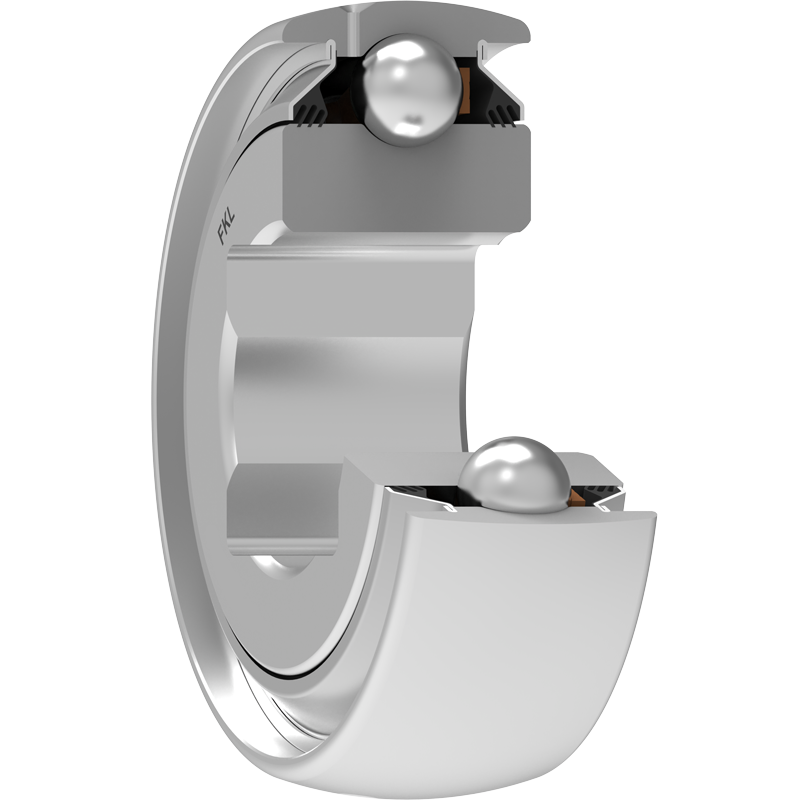

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
