GW 210PPB5 FKL

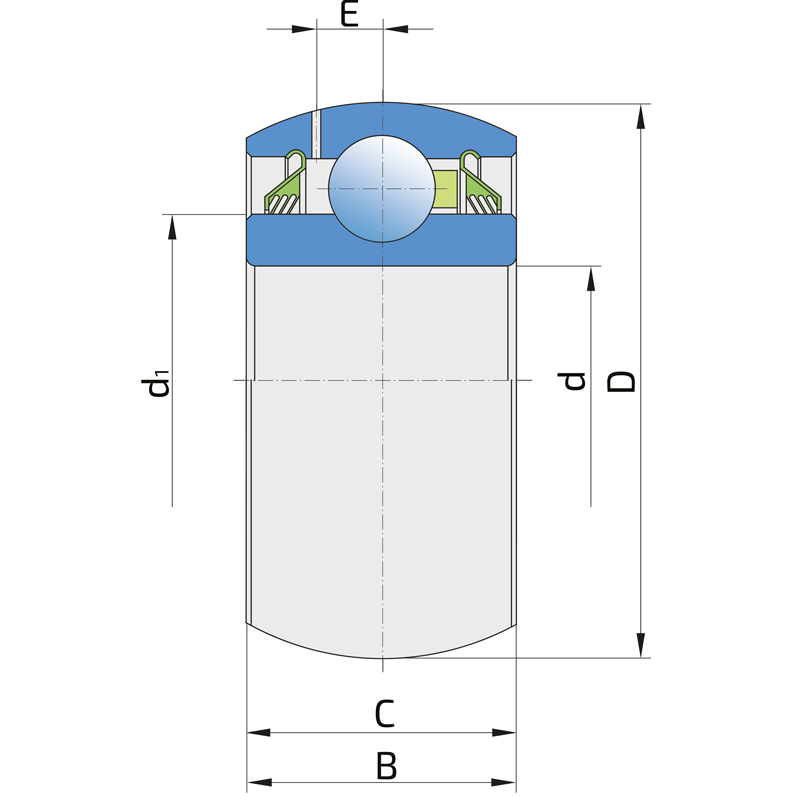

Technical datasheet:

d	Bore diameter	45.34
D	Outside diameter	90
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.6
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
kg	Mass	0.79

Interchange:

OEM	Manufacturer	Comments
28RG3-210E3	LINK BELT
3AC10-13/4D1	NTN
DS210TTR5R	BCA
GW210PPB5	INA
GW210PPB5	FAFNIR
GW210PPB5	TORRINGTON

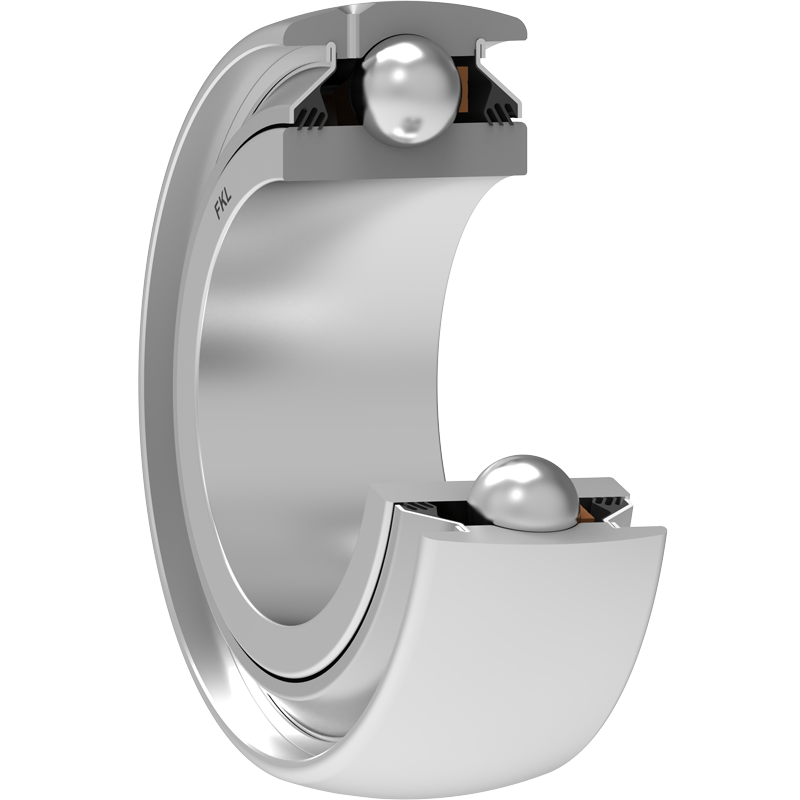

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
