GW 211PP17 FKL

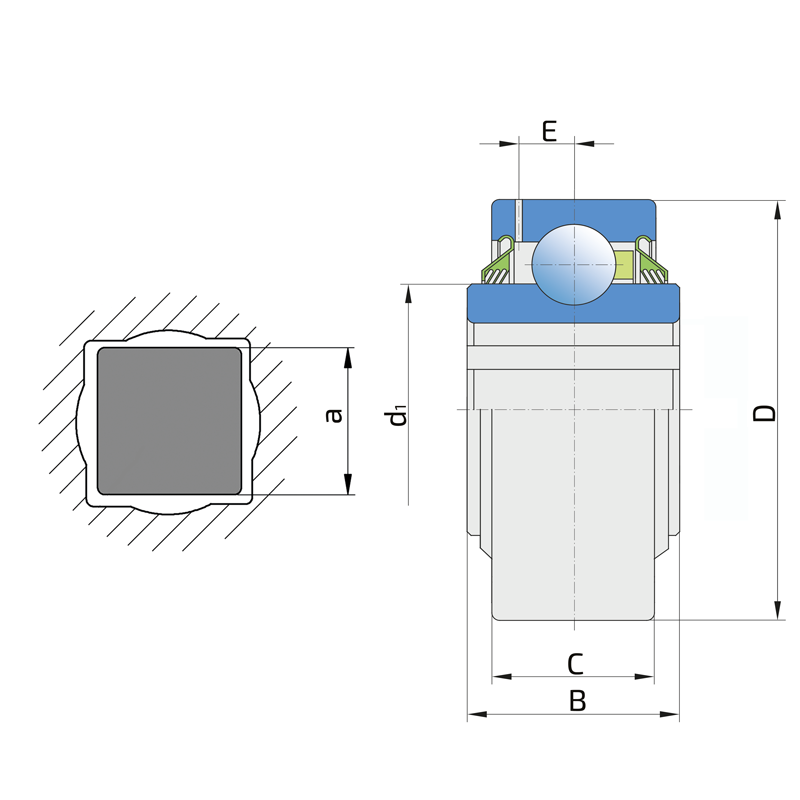

Technical datasheet:

D	Outside diameter	100
B	Width inner ring	44.5
C	Width outer ring	33.34
d1	Outer diameter inner ring	69.1
E	Distance from raceway centre to the hole for lubrication	7.1
a	Hexagonal bore	38.9
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29
kg	Mass	1.188

Interchange:

OEM	Manufacturer	Comments
11503	AMCO
DC211TTR4	BCA
GW211PP17	INA
GW211PP17	FAFNIR

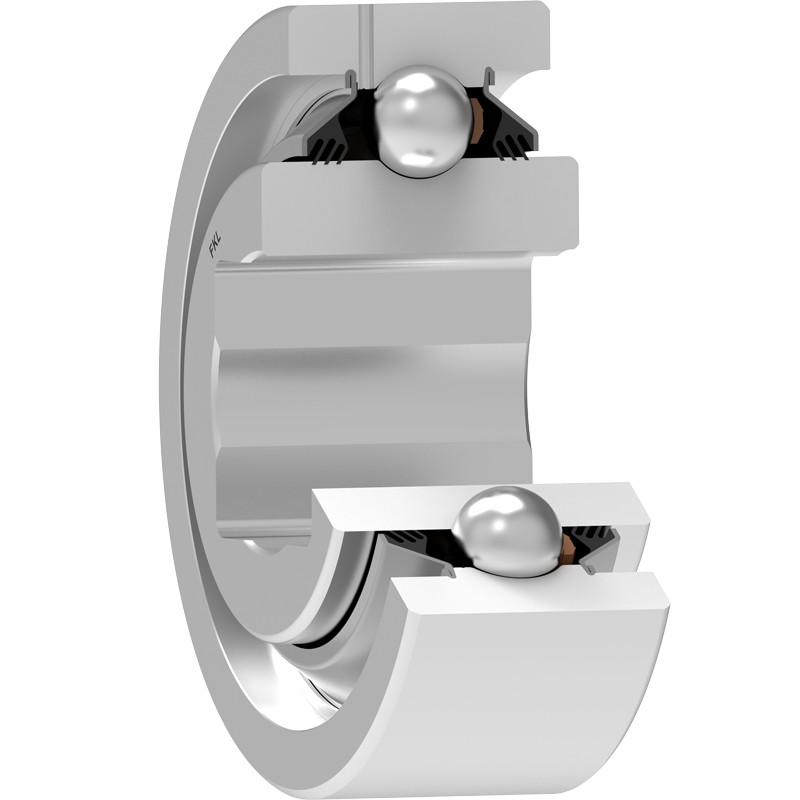

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
