GW 211PPB13 FKL

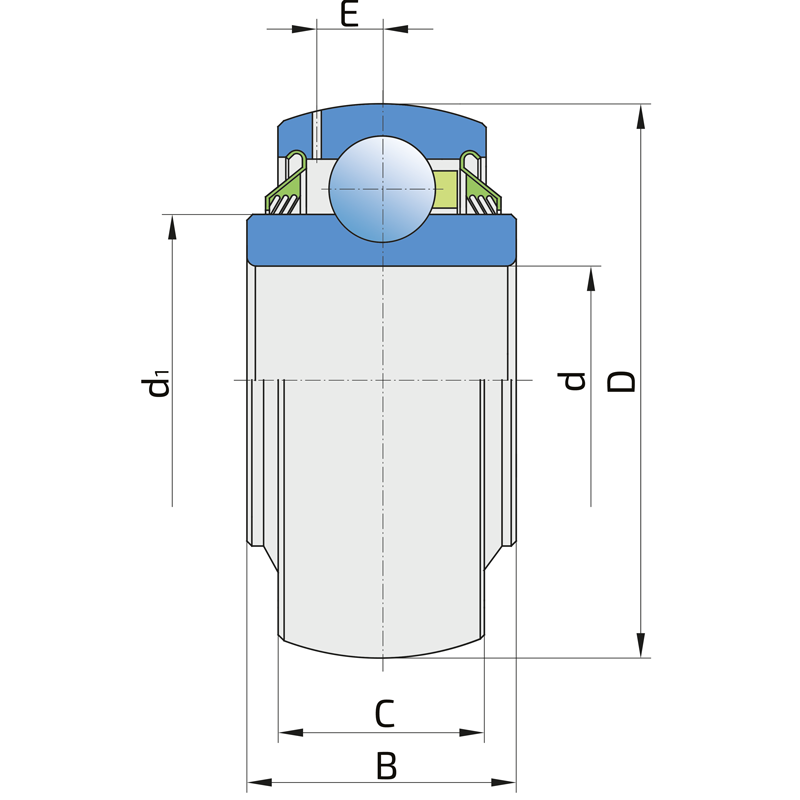

Technical datasheet:

d	Bore diameter	45.34
D	Outside diameter	100
B	Width inner ring	33.34
C	Width outer ring	25
d1	Outer diameter inner ring	69.1
E	Distance from raceway centre to the hole for lubrication	7.1
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29
kg	Mass	0.92

Interchange:

OEM	Manufacturer	Comments
DS211TTR13	BCA
GW211PPB13	INA
GW211PPB13	FAFNIR
GW211PPB13	TORRINGTON

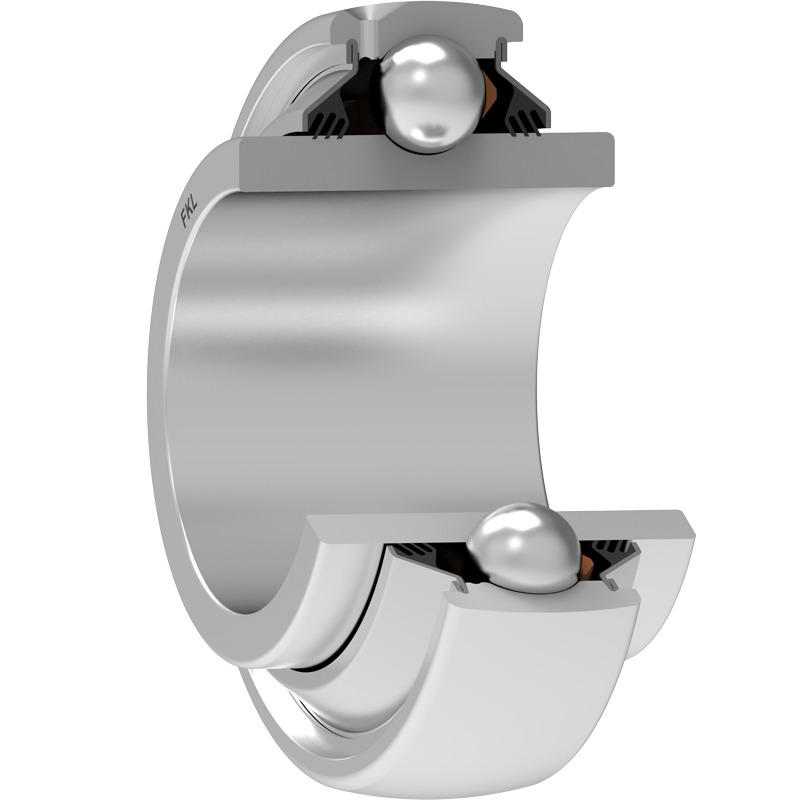

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
