GW 211 PPB20 FKL

Net price:

20.665 €/pcs

Main warehouse:
On stock
4 pcs

Product number:

GW 211 PPB20

Brand:

FKL

Product name:

bearing

Sizes:

55.7X100X39.7/33.4

Replacements:
AA28186 JOHN DEERE

Inquiry Subscribe

Product details from catalogue

Drawings:

GW 211PPB20 FKL

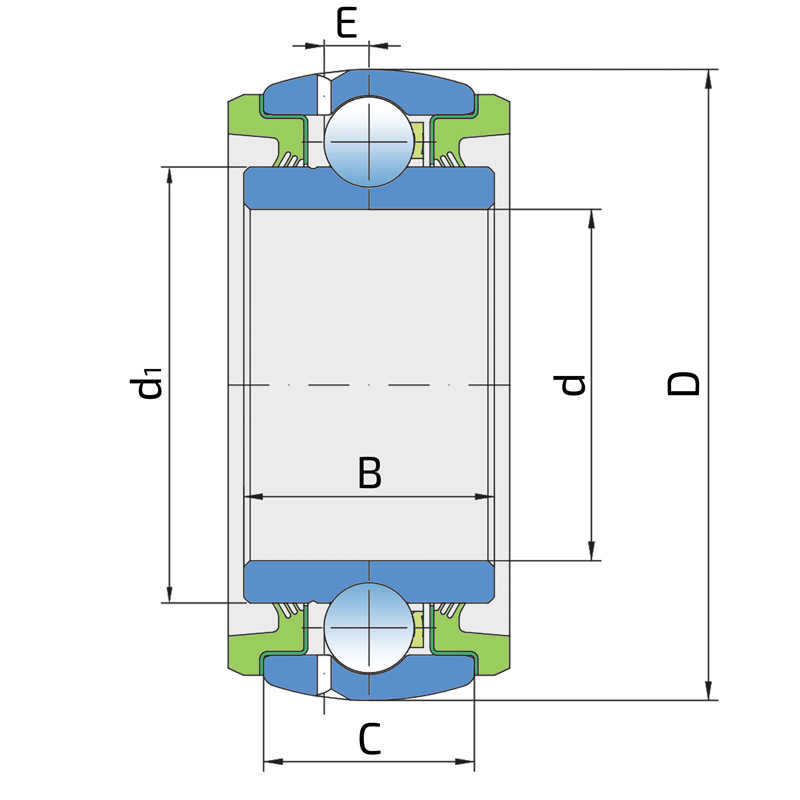

Technical datasheet:
d Bore diameter 55.7
D Outside diameter 100
B Width inner ring 39.7
C Width outer ring 33.6
d1 Outer diameter inner ring 69.1
E Distance from raceway centre to the hole for lubrication 7.1
Cdyn Dynamic load rating 42.5
Co Static load rating 29
kg Mass 1.03

Interchange:
OEM Manufacturer Comments
AA28186 JOHN DEERE
AKK22197 JOHN DEERE This part substitutes for AA28186
GW211PPB20 INA
