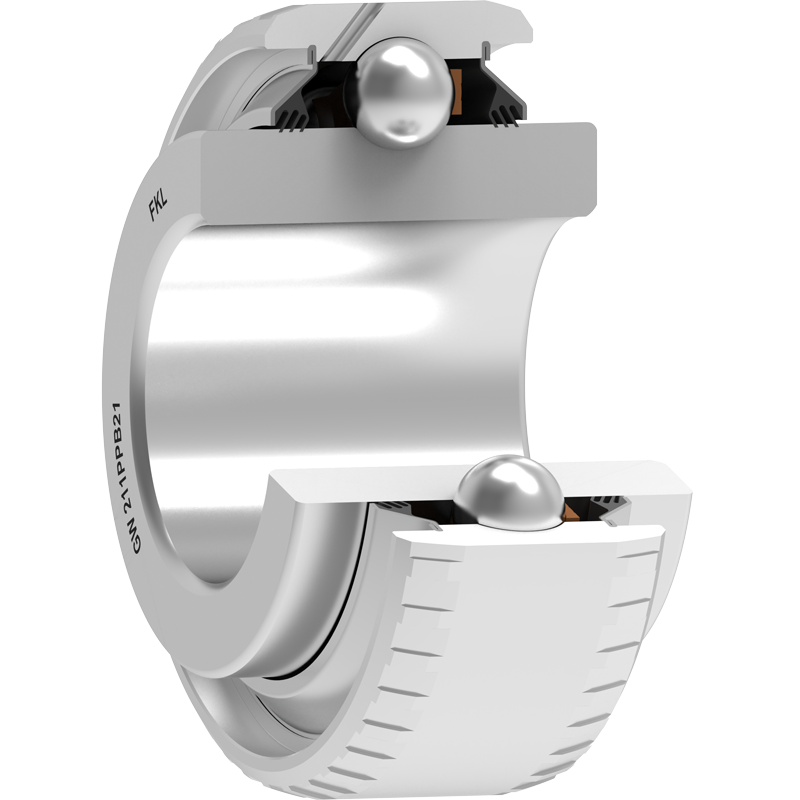

GW 211PPB21 FKL

Technical datasheet:

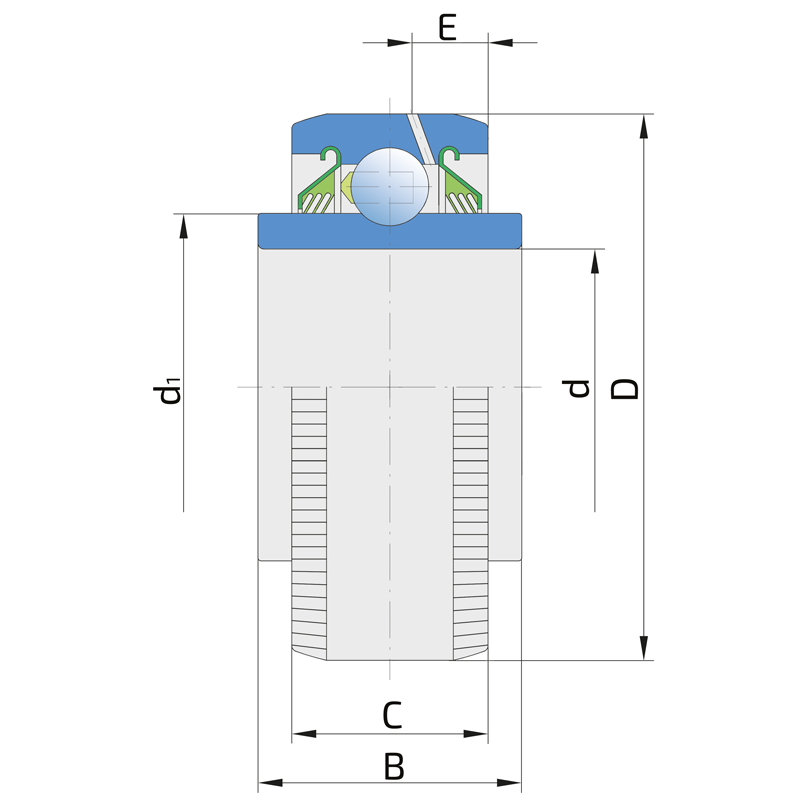

d	Bore diameter	45.21
D	Outside diameter	101.067
B	Width inner ring	53.975
C	Width outer ring	36.525
d1	Outer diameter inner ring	69.1
E	Distance from raceway centre to the hole for lubrication	15.6
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29
kg	Mass	1.49

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
