GW 211PPB40.X2 FKL

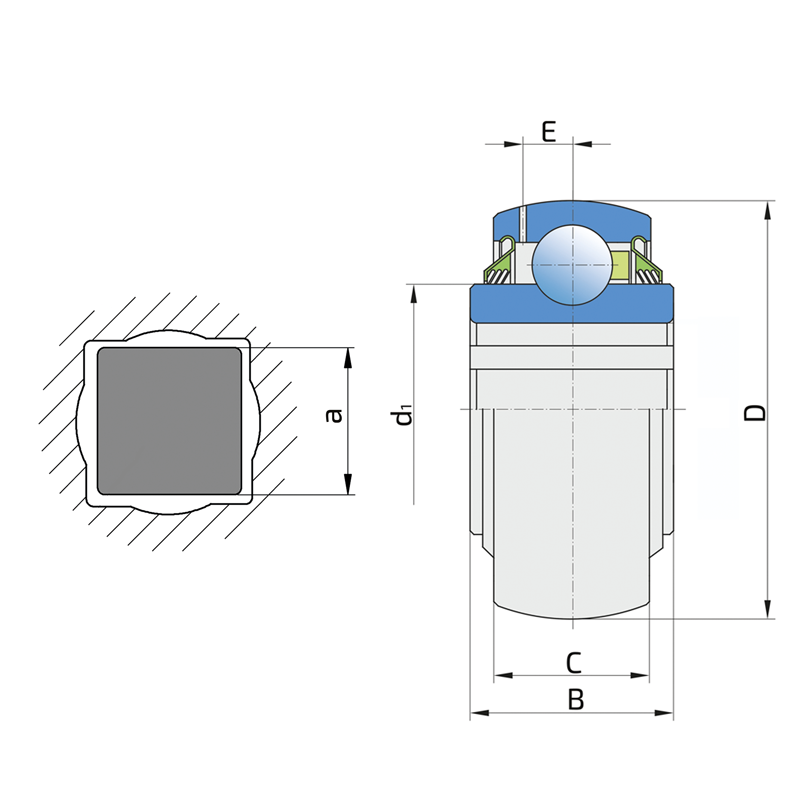

Technical datasheet:

D	Outside diameter	100
B	Width inner ring	55.55
C	Width outer ring	25
d1	Outer diameter inner ring	69.1
E	Distance from raceway centre to the hole for lubrication	7.1
a	Shaft size	35
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29
kg	Mass	1.3

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
