GWR 209PPB30 FKL

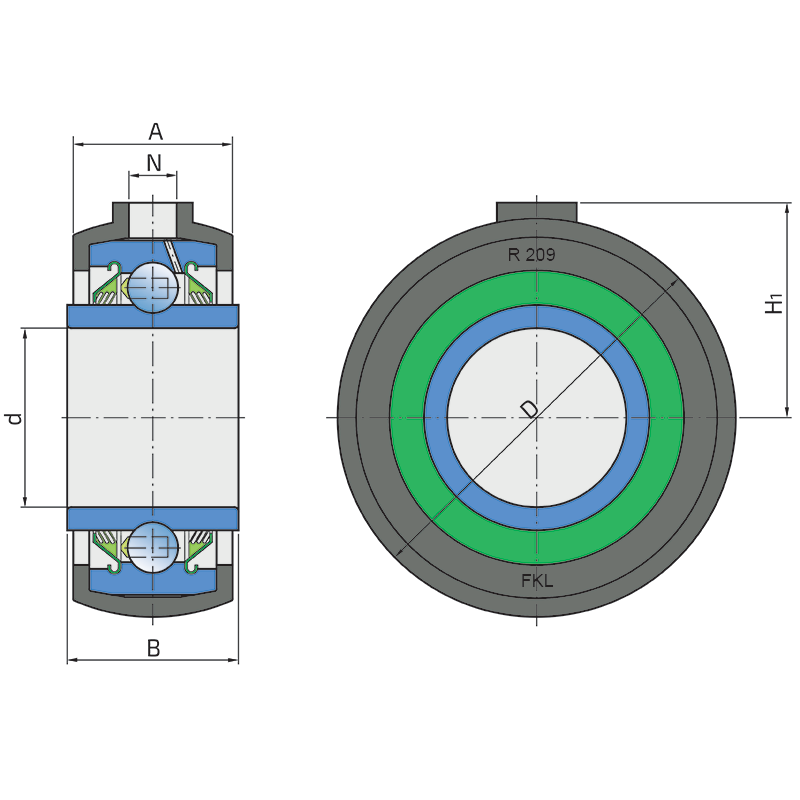

Technical datasheet:

Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
D	Outside diameter	101
d	Bore diameter	44.958
kg	Mass	0.92
H1	Distance from the contact surface to the bearing axis	54
B	Width inner ring	42.86
N	Hole diameter	12.7
A	Overall width	40

Interchange:

OEM	Manufacturer	Comments
1927-11-0	KUHN
40-167	KRAUSE
40-167	KUHN
40-168	KUHN
BR 209RH	TIMKEN
GW209PPB23	TIMKEN
GW209PPB23-BR209RH	PEER
Q4008350	KUHN

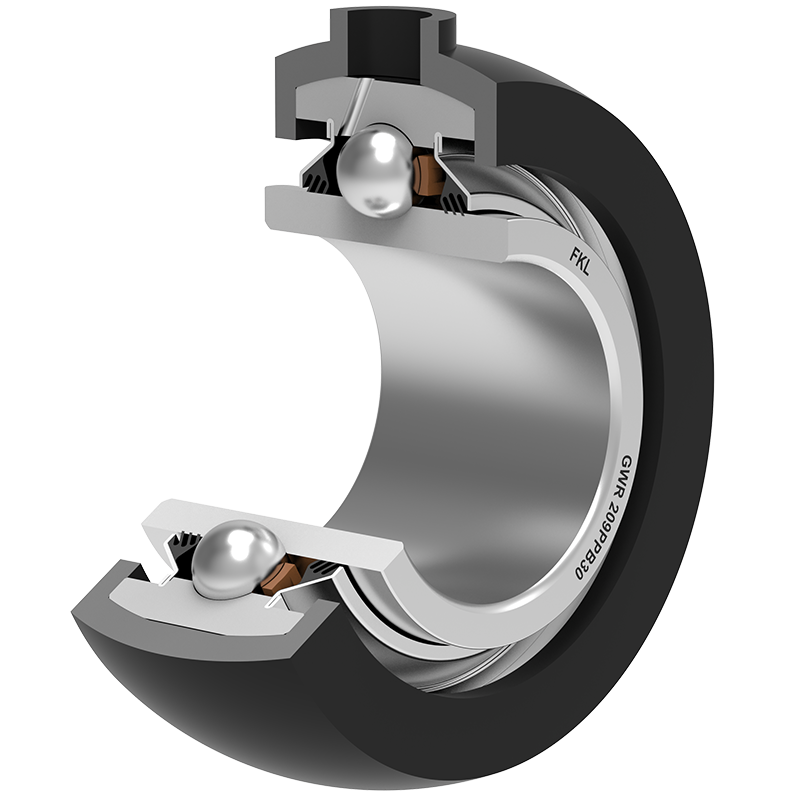

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
