GWST 209PPB12 FKL

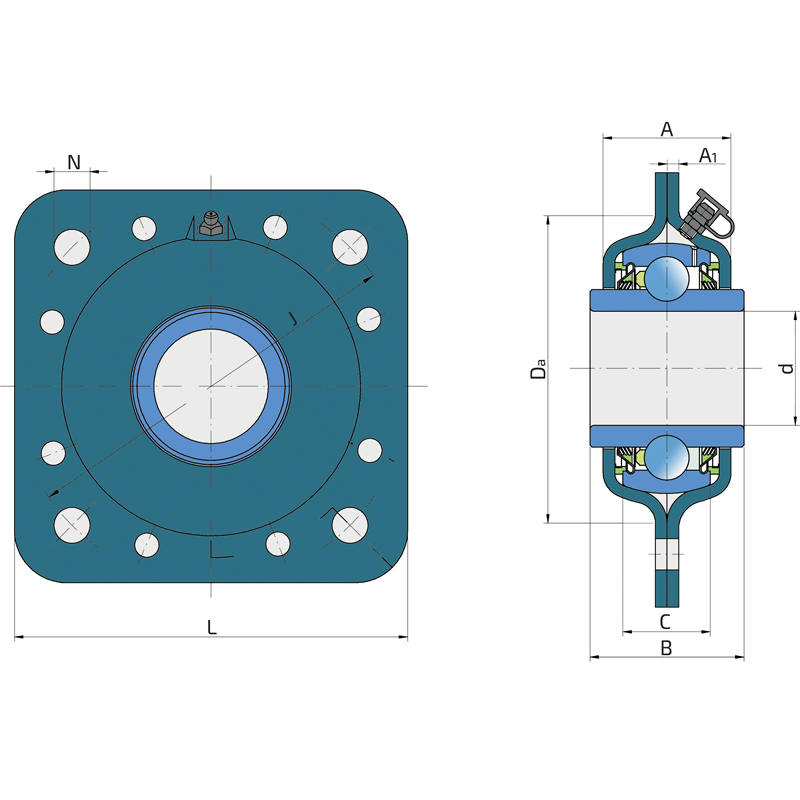

Technical datasheet:

d	Bore diameter	44.831
B	Width inner ring	42.85
C	Width outer ring	22
Da	Centering diameter	97
L	Overall length	127
A	Distance from the housing flange to the front of the inner ring of the bearing	39
A1	Width of the top of the housing	3.5
J	Pitch circle diameter	127
N	Diameter of attachment slot	13.5
Fr	Radial load	7.7
Fa	Axial load	3.8
kg	Mass	1.51
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4

Interchange:

OEM	Manufacturer	Comments
DHU1-3/4R209	FAFNIR
DHU491A	TORRINGTON
FD209RA	BCA
FD209RJA	FEDERAL MOGUL
SN3215	SUNFLOWER

RUBBER PLUG + T SEAL / T SEAL + RUBBER PLUG

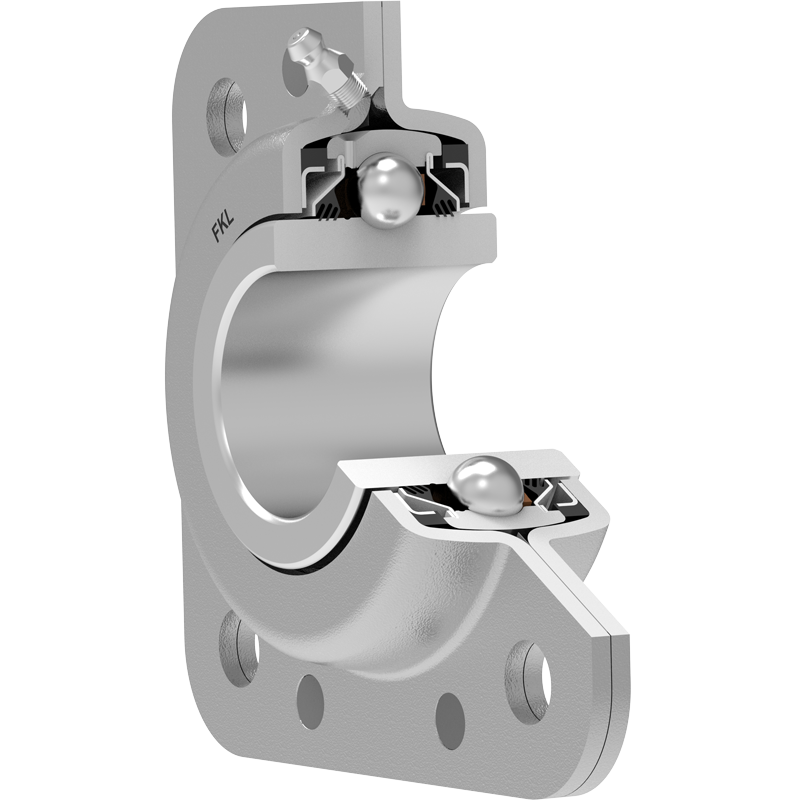

Sealing RUBBER PLUG + T SEAL / T SEAL + RUBBER PLUG 3-lip seal seal on both sides provide long lasting protection of the bearing against the penetration of contaminants. Rubber plugs are protecting the area between the bearing and sheet metal housing.
