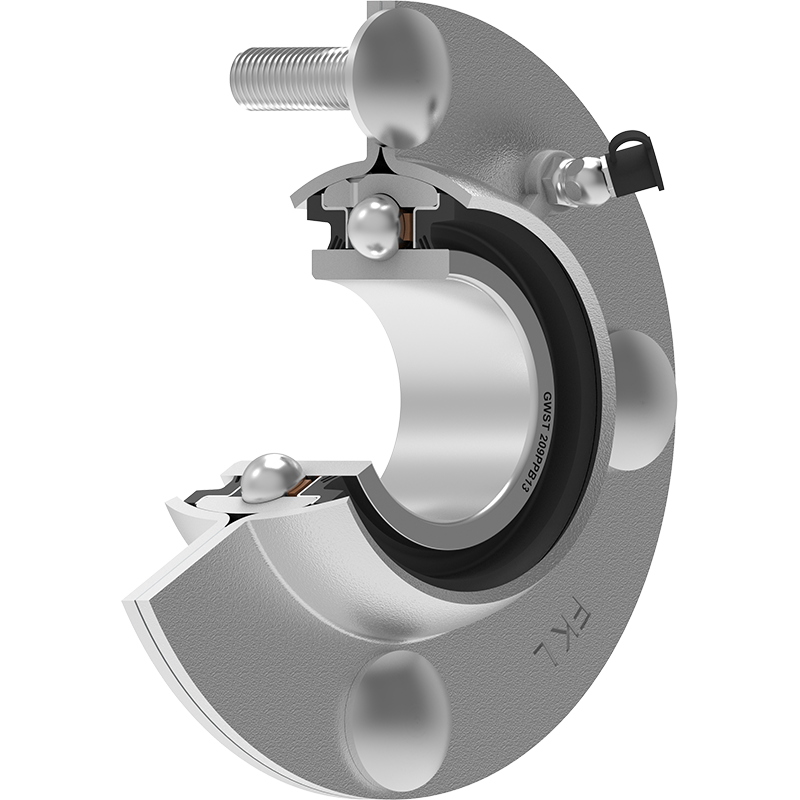

GWST 209PPB13 FKL

Technical datasheet:

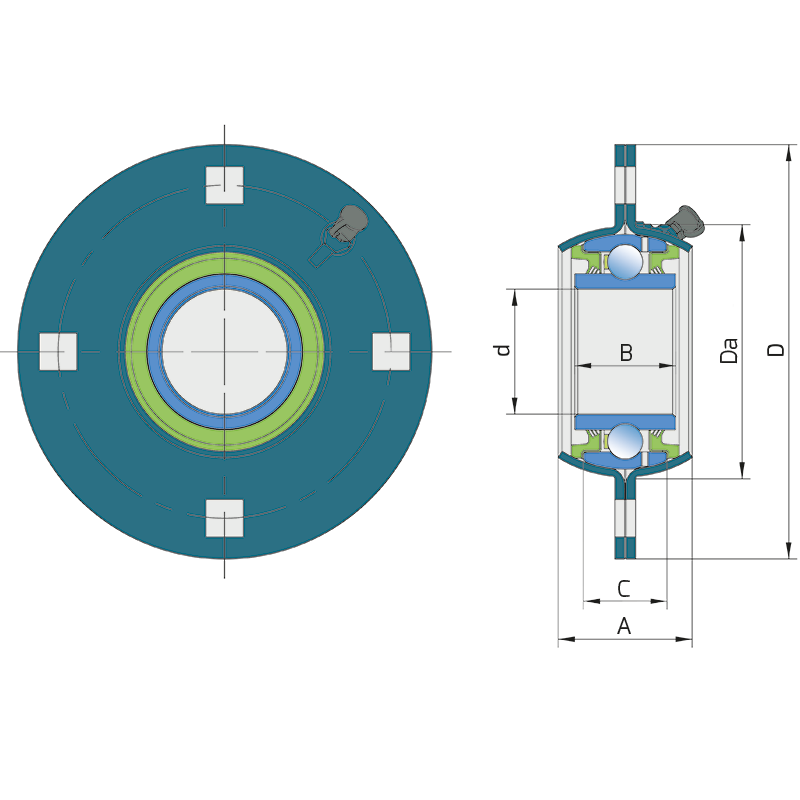

Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
J	Pitch circle diameter	120.5
D	Outside diameter	150
d	Bore diameter	45.24
kg	Mass	1.836
B	Width inner ring	36.53
N	Sqare hole dimension	13.5
A	Overall width	48.5

Interchange:

OEM	Manufacturer	Comments
822-207C	GREAT PLAINS
AA27172	JOHN DEERE	Pressed Flanged Housing
AA29784	JOHN DEERE
AA30941	JOHN DEERE
AA30942	JOHN DEERE
AKK33315	JOHN DEERE	This part substitutes for AA30942
DS209TTR13	BCA
DS211TTR20	BCA
FC2286	KENT
ST211-2 3/16	NTN

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
