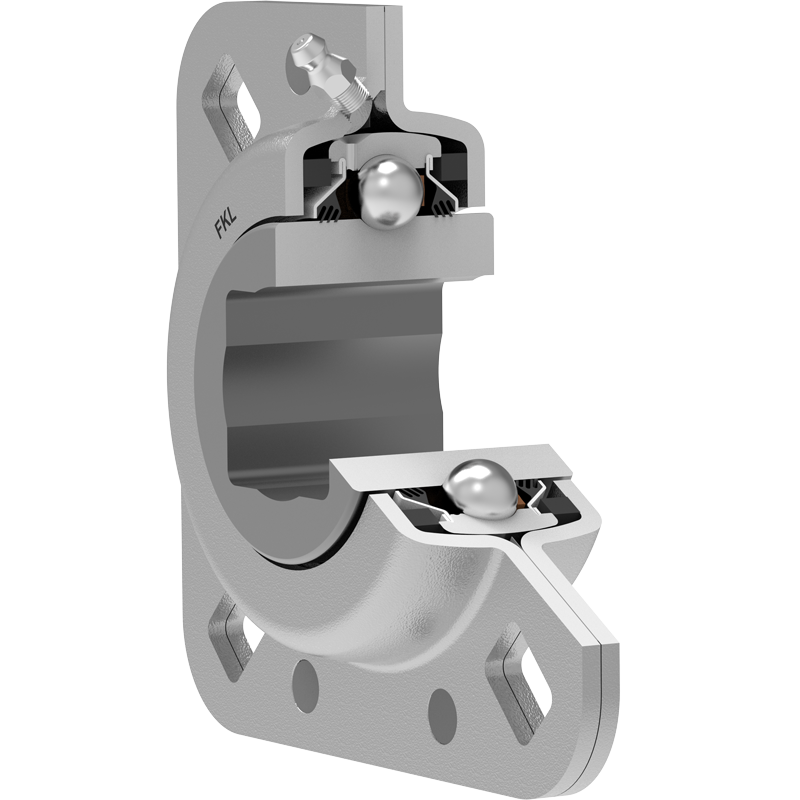

GWST 209PPB28 FKL

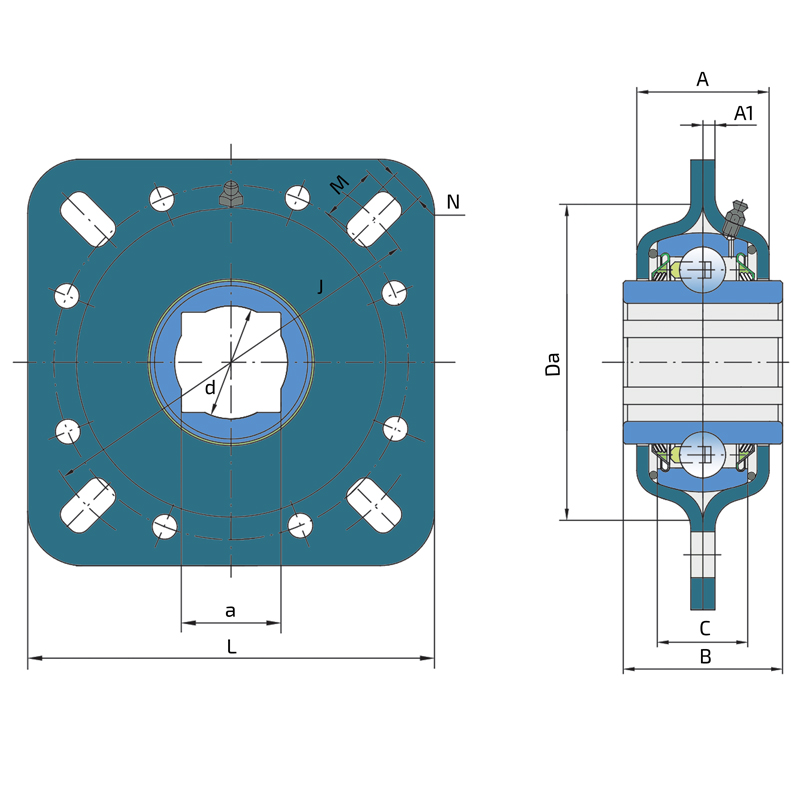

Technical datasheet:

a	Hexagonal bore	30
d	Bore diameter	46.831
B	Width inner ring	42.85
C	Width outer ring	22
Da	Centering diameter	97
L	Overall length	127
A	Distance from the housing flange to the front of the inner ring of the bearing	39
A1	Width of the top of the housing	3.5
J	Pitch circle diameter	127
N	Diameter of attachment slot	13.5
Fr	Radial load	7.7
Fa	Axial load	3.8
kg	Mass	1.69
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
Pu	Fatigue load limit	0.857

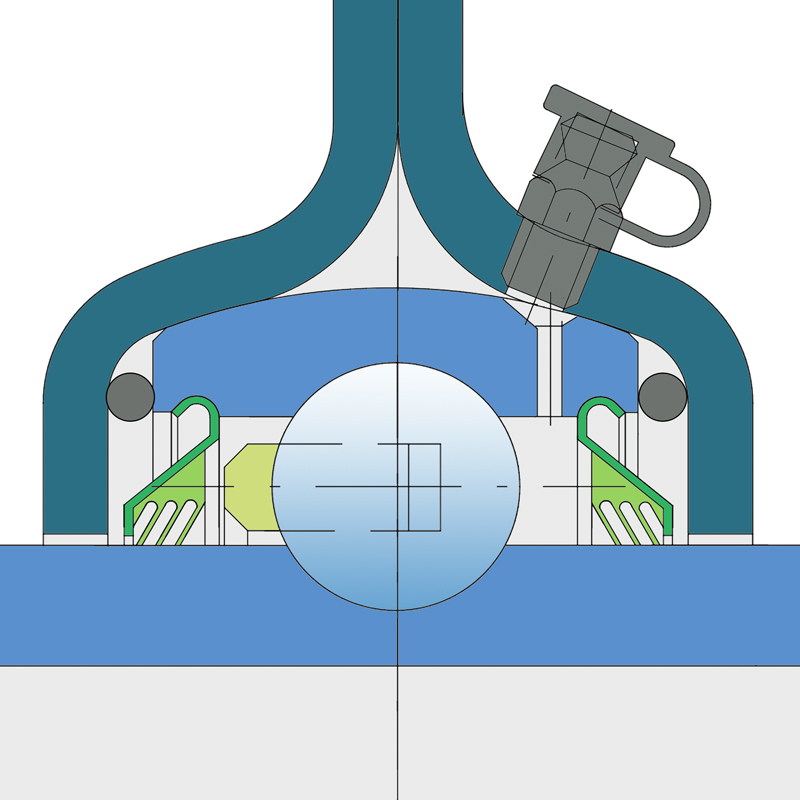

O-RING + T SEAL / T SEAL + O-RING

Sealing O-RING + T SEAL / T SEAL + O-RING 3-lip seal seal on both sides provide long lasting protection of the bearing against the penetration of contaminants. O-rings are protecting the area between the bearing and sheet metal housing.
