GWST 209PPB29 FKL

Technical datasheet:

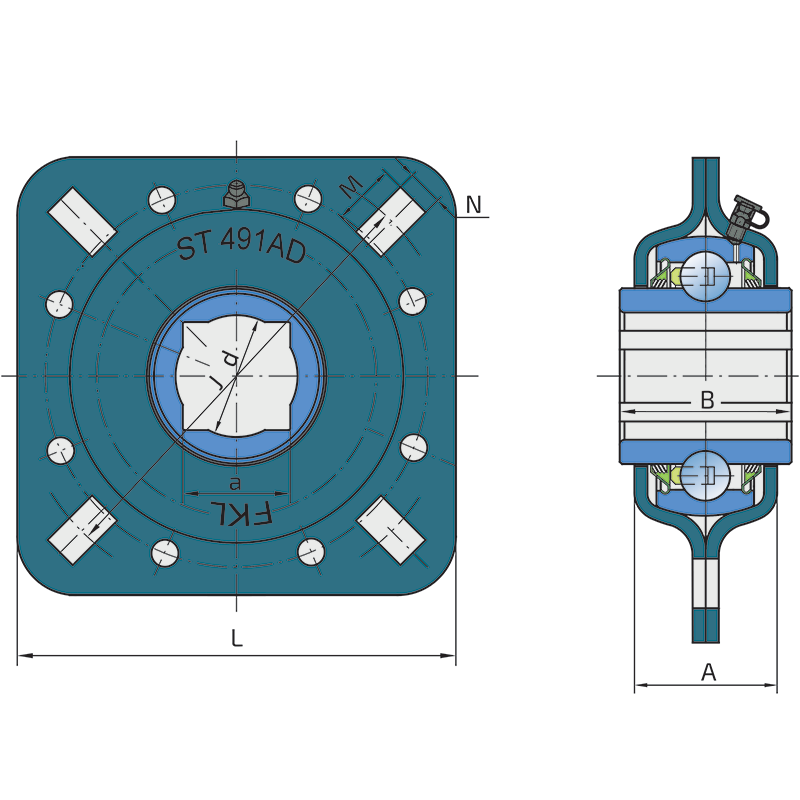

a	Hexagonal bore	32.8
d	Bore diameter	35.5
B	Width inner ring	42.85
C	Width outer ring	22
Da	Centering diameter	97
L	Total length	127
A	Overall width	39
A1	Width of the top of the housing	3.5
J	Pitch circle diameter	127
N	Rectangular hole size	13.5
M	Rectangular hole size	17.5
Fr	Radial load	7.7
Fa	Axial load	3.8
kg	Mass	1.63
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
Pu	Fatigue load limit	0.857

Interchange:

OEM	Manufacturer	Comments
311007	QUINSTAR
40-128	KUHN
822-209C	GREAT PLAINS
84151226	NEW HOLLAND
DHU1-1/4S209	FAFNIR
FD209RK	KUHN
ST209 1 1/4SQ	KUHN

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
