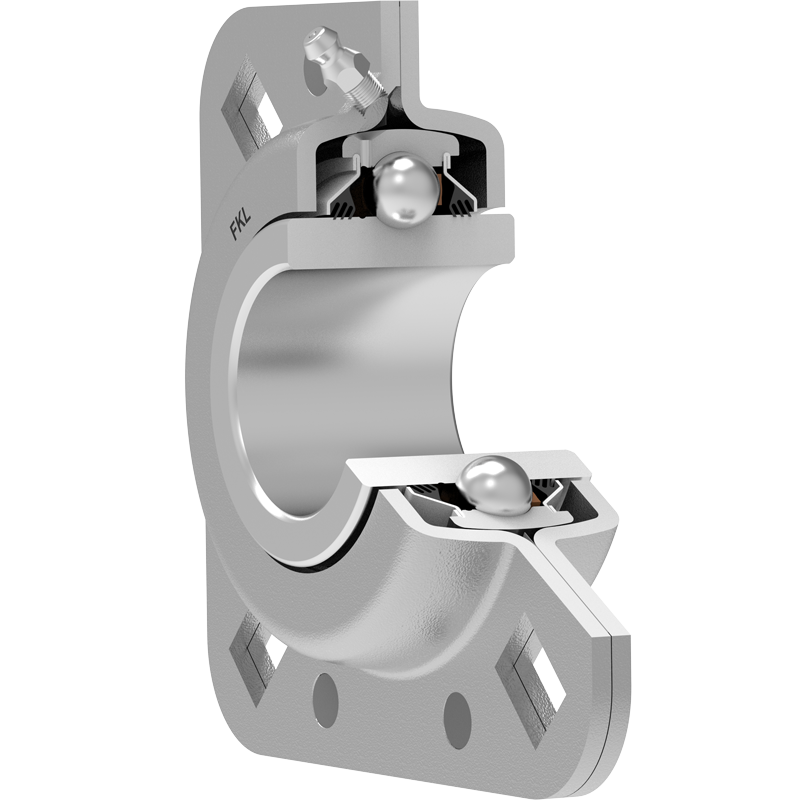

GWST 209PPB38 FKL

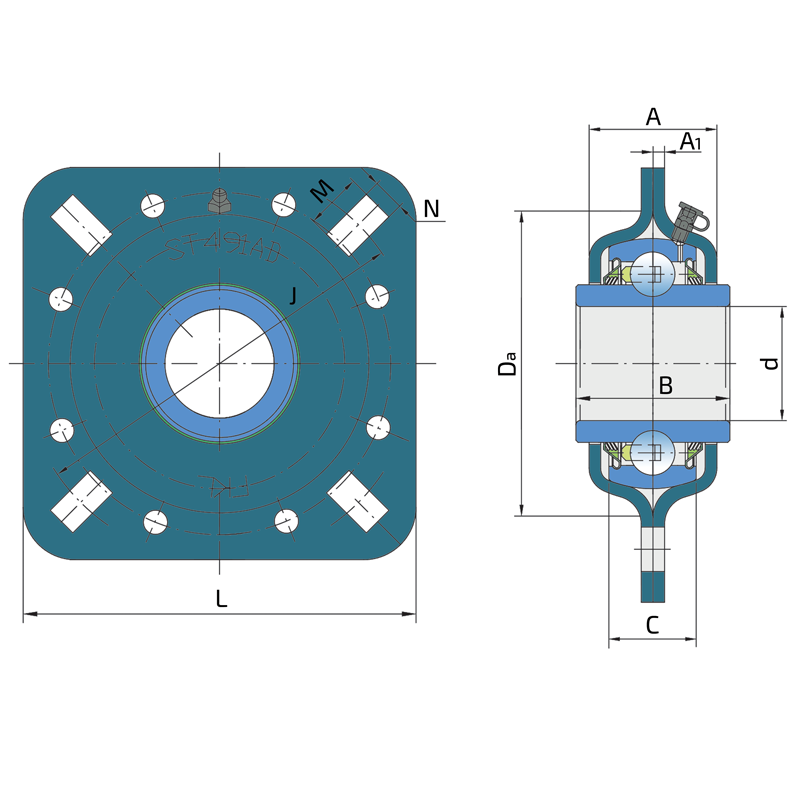

Technical datasheet:

d	Bore diameter	38.11
B	Width inner ring	42.85
C	Width outer ring	22
Da	Centering diameter	97
L	Overall length	127
A	Distance from the housing flange to the front of the inner ring of the bearing	39
A1	Width of the top of the housing	3.5
J	Pitch circle diameter	127
N	Diameter of attachment slot	13.5
Fr	Radial load	7.7
Fa	Axial load	3.8
kg	Mass	1.63
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4

Interchange:

OEM	Manufacturer	Comments
DHU 491B	TIMKEN
ST491B	PEER

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
