GWST 211PPB15.H FKL

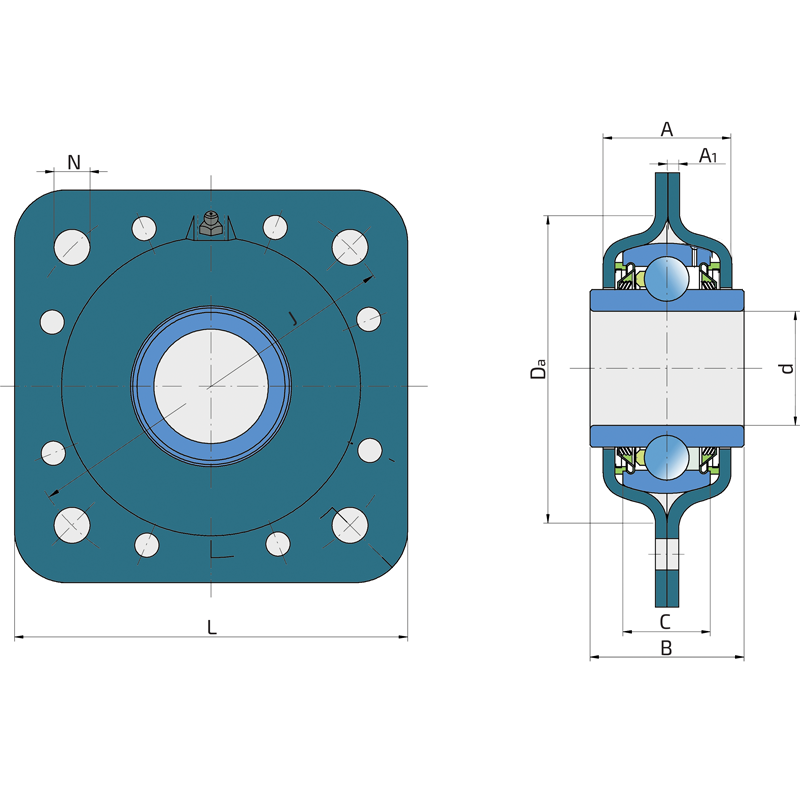

Technical datasheet:

d	Bore diameter	55.58
B	Width inner ring	55.55
C	Width outer ring	25
Da	Centering diameter	113
L	Overall length	140
A	Distance from the housing flange to the front of the inner ring of the bearing	44.7
A1	Width of the top of the housing	4
J	Pitch circle diameter	140
N	Diameter of attachment slot	13.5
Fr	Radial load	9.8
Fa	Axial load	5.1
kg	Mass	2.05
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29
Pu	Fatigue load limit	1.218

Interchange:

OEM	Manufacturer	Comments
KM040159	BEDNAR
KM040254	BEDNAR

RUBBER PLUG + T SEAL / T SEAL + RUBBER PLUG

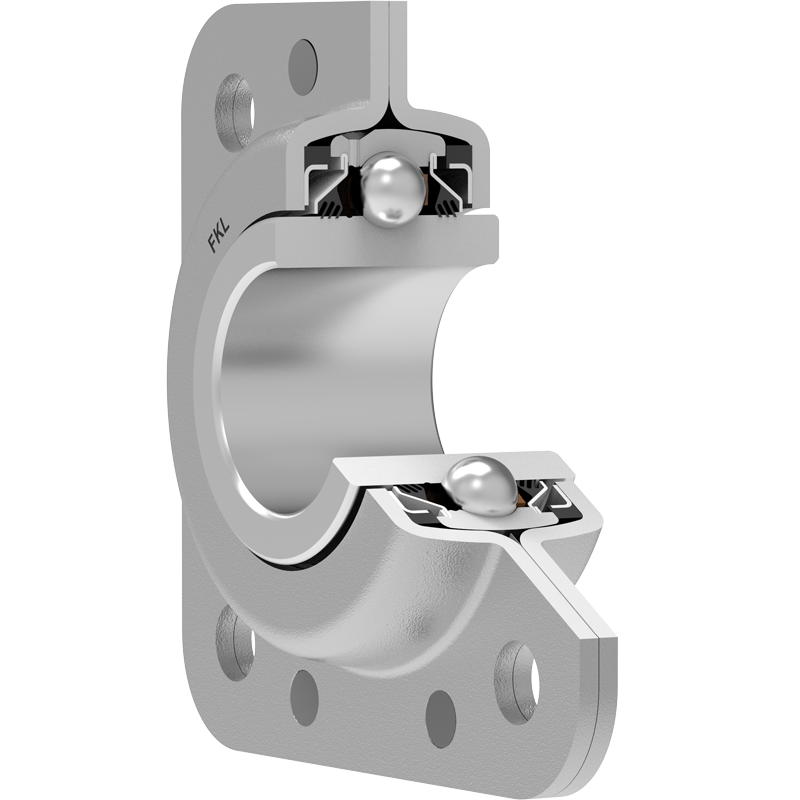

Sealing RUBBER PLUG + T SEAL / T SEAL + RUBBER PLUG 3-lip seal seal on both sides provide long lasting protection of the bearing against the penetration of contaminants. Rubber plugs are protecting the area between the bearing and sheet metal housing.
