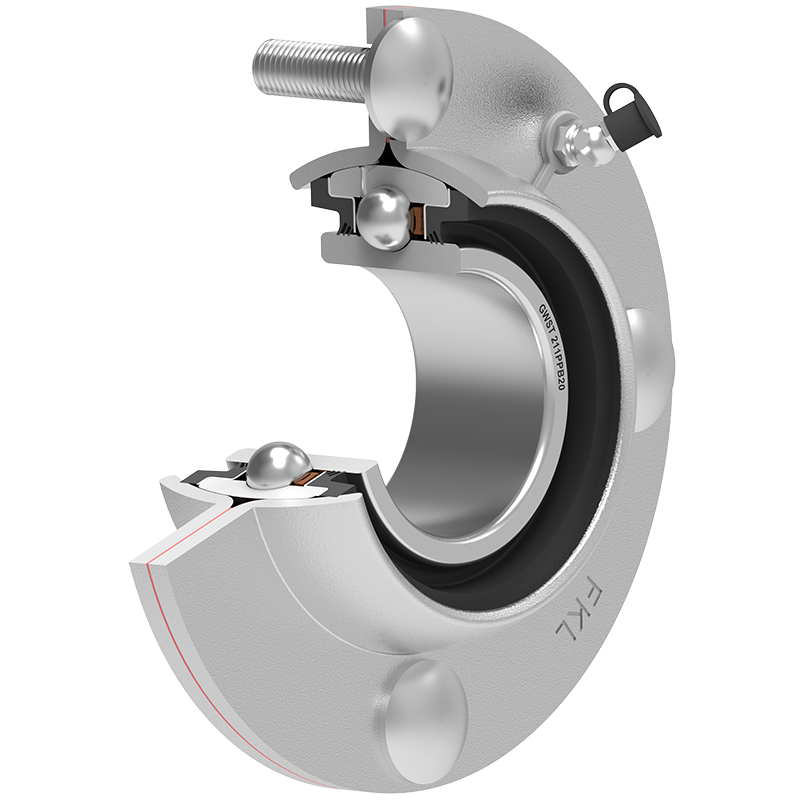

GWST 211PPB20 FKL

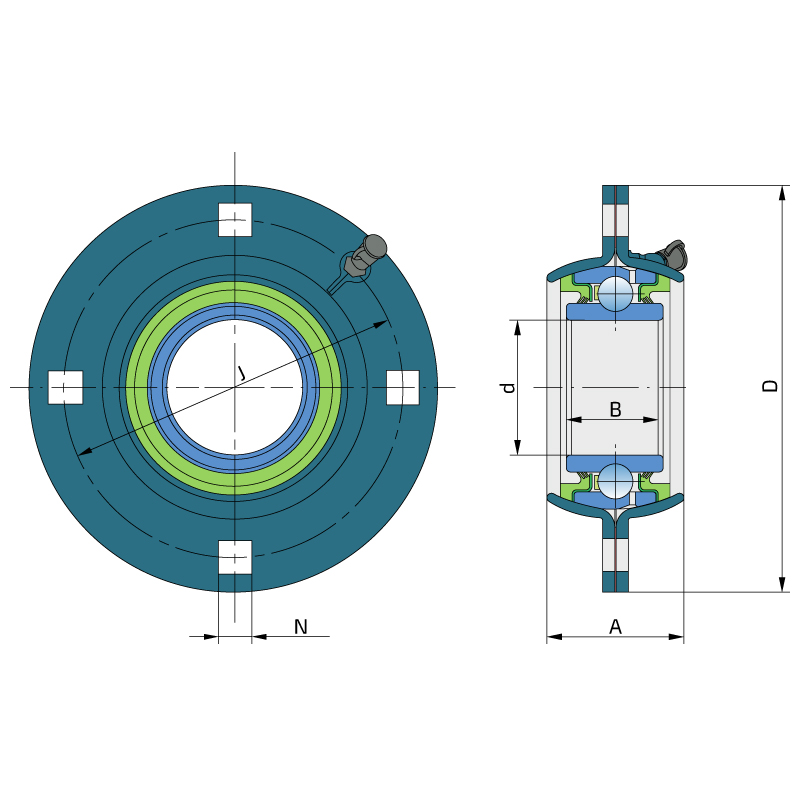

Technical datasheet:

d	Bore diameter	55.7
D	Outside diameter	167
J	Pitch circle diameter	138
A	Overall width	56.5
B	Width inner ring	39.7
N	Hole diameter	13.5
kg	Mass	2.706
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29
Pu	Fatigue load limit	1.218

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
