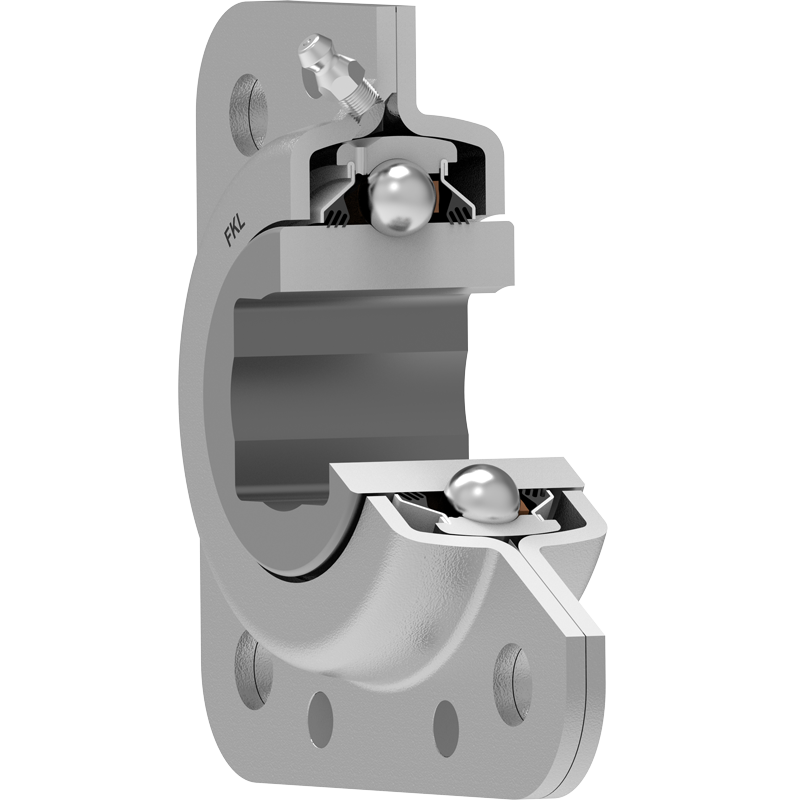

GWST 211PPB43 FKL

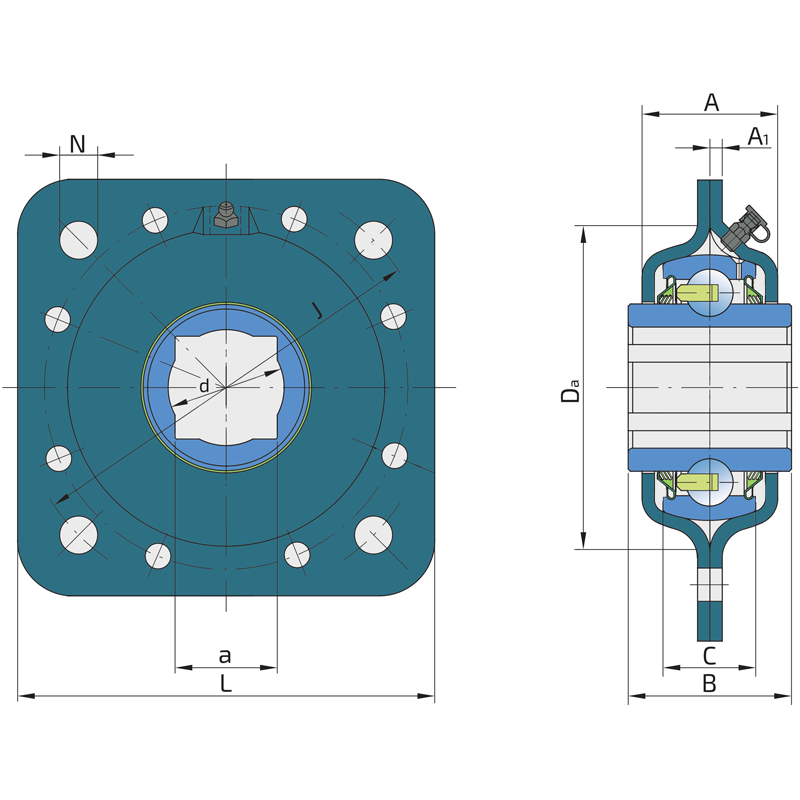

Technical datasheet:

d	Bore diameter	59.58
B	Width inner ring	55.55
C	Width outer ring	25
Da	Centering diameter	113
L	Overall length	140
A	Distance from the housing flange to the front of the inner ring of the bearing	44.7
A1	Width of the top of the housing	4
J	Pitch circle diameter	140
N	Diameter of attachment slot	13.5
Fr	Radial load	9.8
Fa	Axial load	5.1
kg	Mass	2.45
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
