GWST 211PPBJ40 FKL

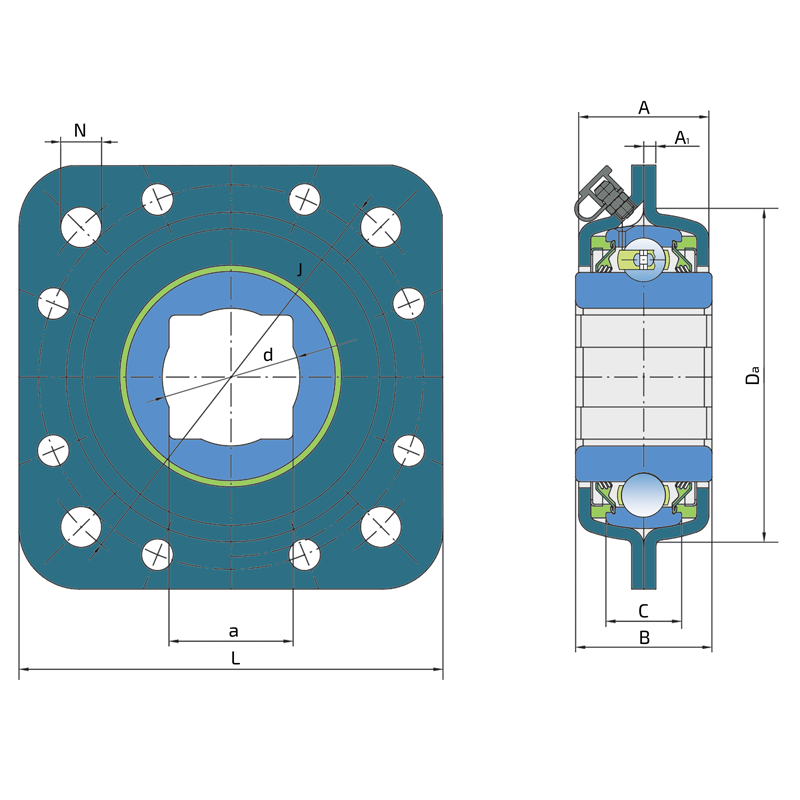

Technical datasheet:

d	Bore diameter	61.58
B	Width inner ring	45
C	Width outer ring	25
Da	Centering diameter	113
L	Overall length	140
A	Distance from the housing flange to the front of the inner ring of the bearing	44.7
A1	Width of the top of the housing	4
J	Pitch circle diameter	140
N	Diameter of attachment slot	13.5
Fr	Radial load	9.8
Fa	Axial load	5.1
kg	Mass	2.26
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29

RUBBER PLUG + T SEAL / T SEAL + RUBBER PLUG

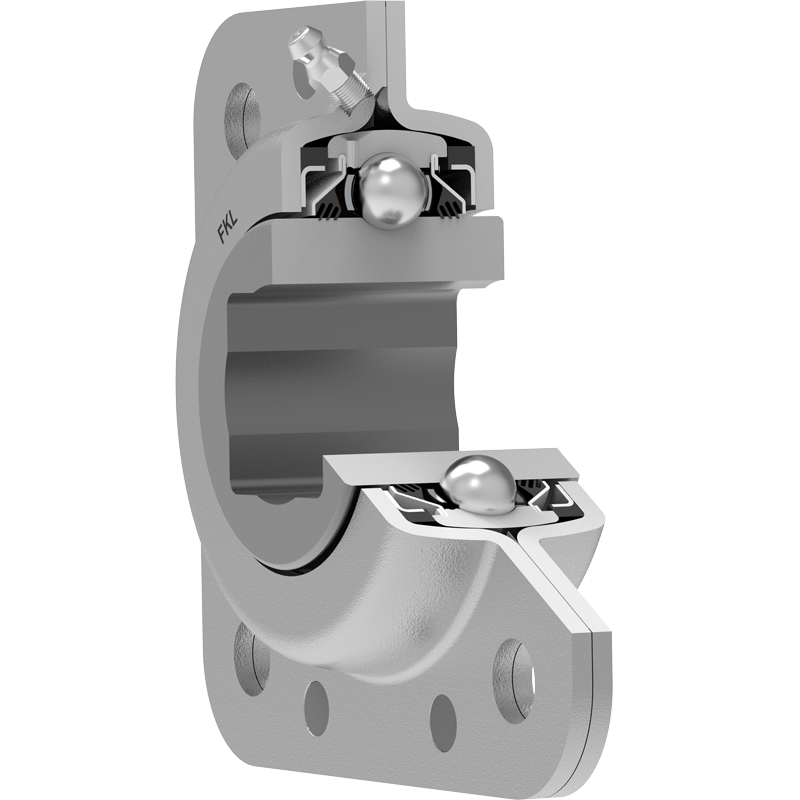

Sealing RUBBER PLUG + T SEAL / T SEAL + RUBBER PLUG 3-lip seal seal on both sides provide long lasting protection of the bearing against the penetration of contaminants. Rubber plugs are protecting the area between the bearing and sheet metal housing.
