LEF 205 2TC FKL

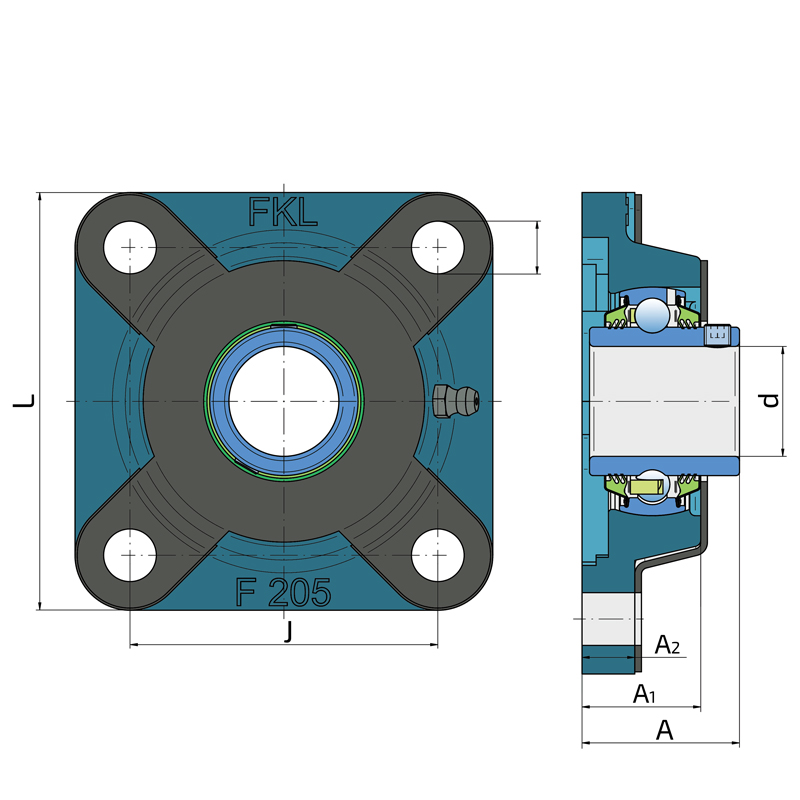

Technical datasheet:

d	Bore diameter	25
L	Total length	95
J	Distance between the holes	70
N	Hole diameter	12
A	Overall width	35.8
A1	Total housing width	27
A2	Housing flange thickness	12
kg	Mass	0.809
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.328

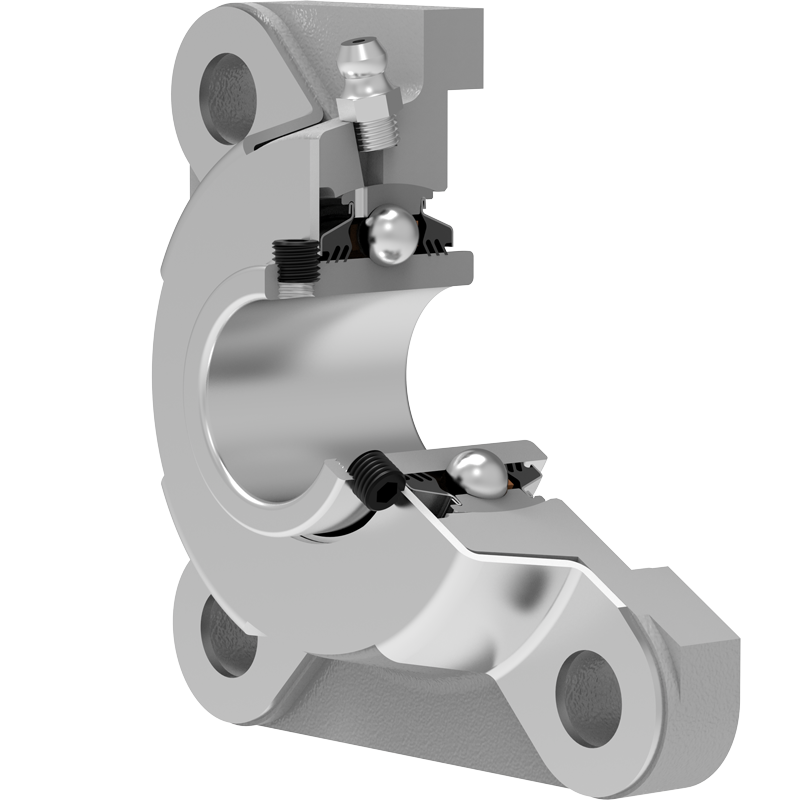

T SEAL / T SEAL+METAL COVER

3-lip seal on the base side and 3-lip seal with Metal cover on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration. The Metal cover protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
