LEFC 210 2PB FKL

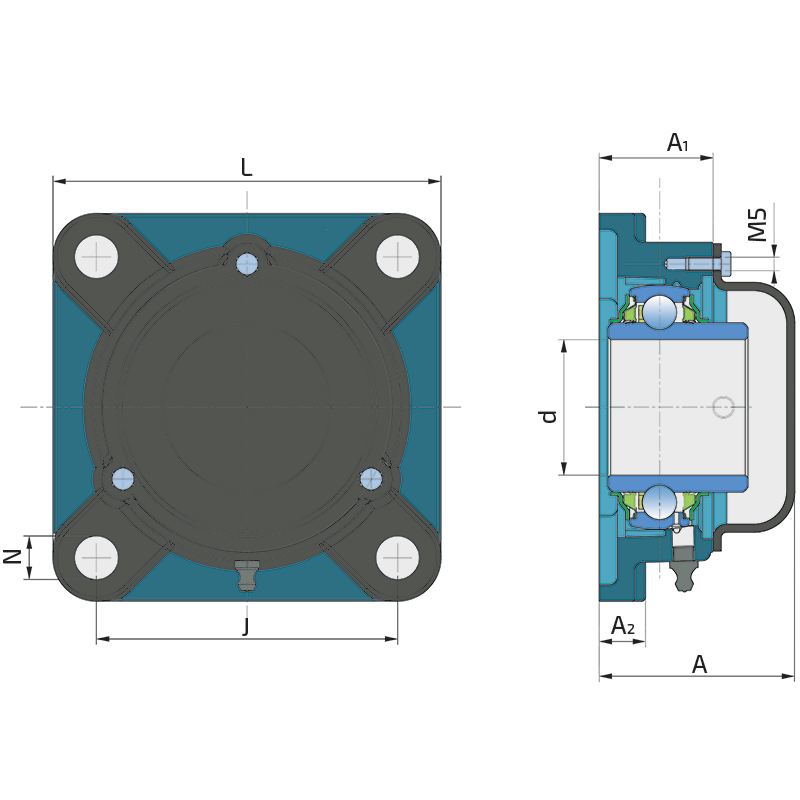

Technical datasheet:

Co	Static load rating	23.2
J	Pitch circle diameter	111
d	Bore diameter	50
L	Total length	143
kg	Mass	2.9
J	Distance between the holes	35.1
N	Hole diameter	16
A	Overall width	72
A1	Total housing width	42
A2	Housing flange thickness	17
Cdyn	Dynamic load rating	35.1

Interchange:

OEM	Manufacturer	Comments
CM-UCF 210	NTN

PB SEAL / PB SEAL (2PB)

A 5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. 5-lip seal provides a high level of the bearing protection from impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects the seal from mechanical damage.
