LEFG 206 TDT.H FKL

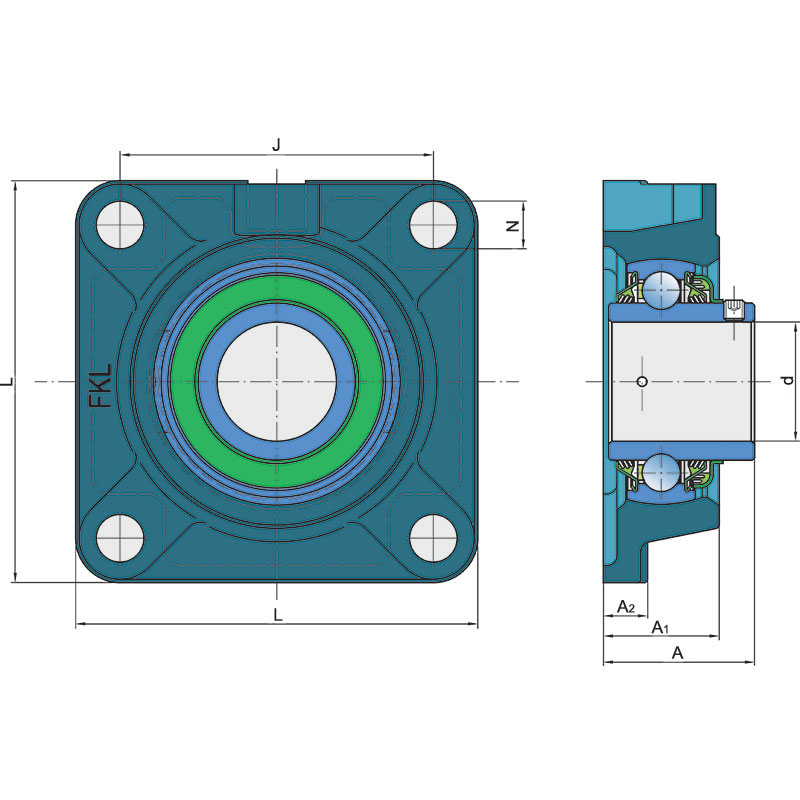

Technical datasheet:

d	Bore diameter	30
A1	Total housing width	31
A2	Housing flange thickness	13
J	Distance between the holes	83
L	Total length	108
N	Hole diameter	12
A	Overall width	40.2
kg	Mass	1.2
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.3
Pu	Fatigue load limit	0.475

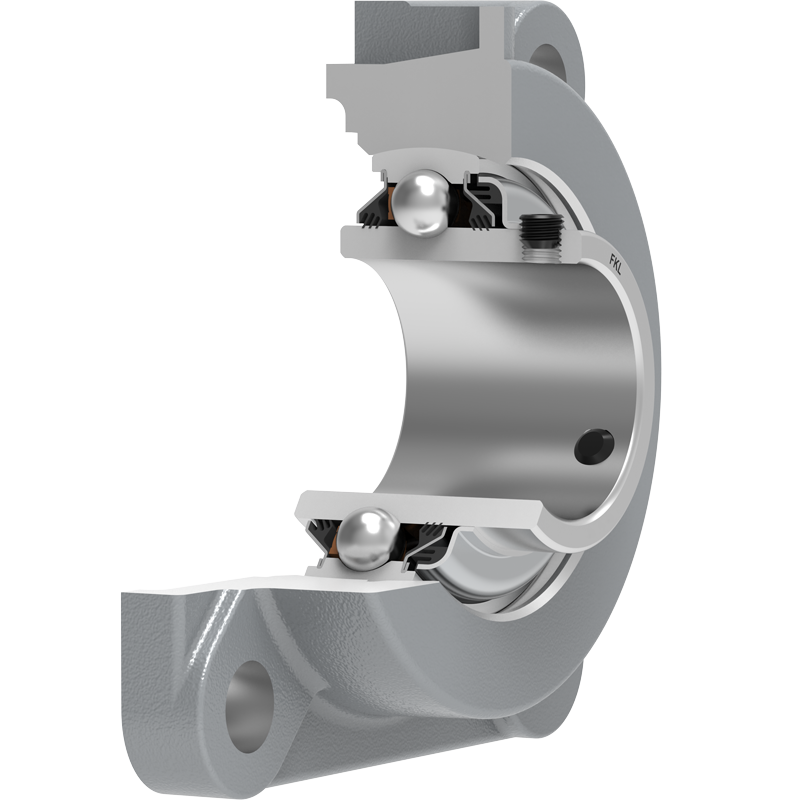

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
