LEFG 207 TDT FKL

Net price:

36.332 €/pcs

Main warehouse:

On stock

4 pcs

Product number:

LEFG 207 TDT

Brand:

FKL

Product name:

csapágyegység

Replacements:

LEF207TDT 1013877 AW0101 UCF 207 N AGR

Inquiry Subscribe

Product details from catalogue

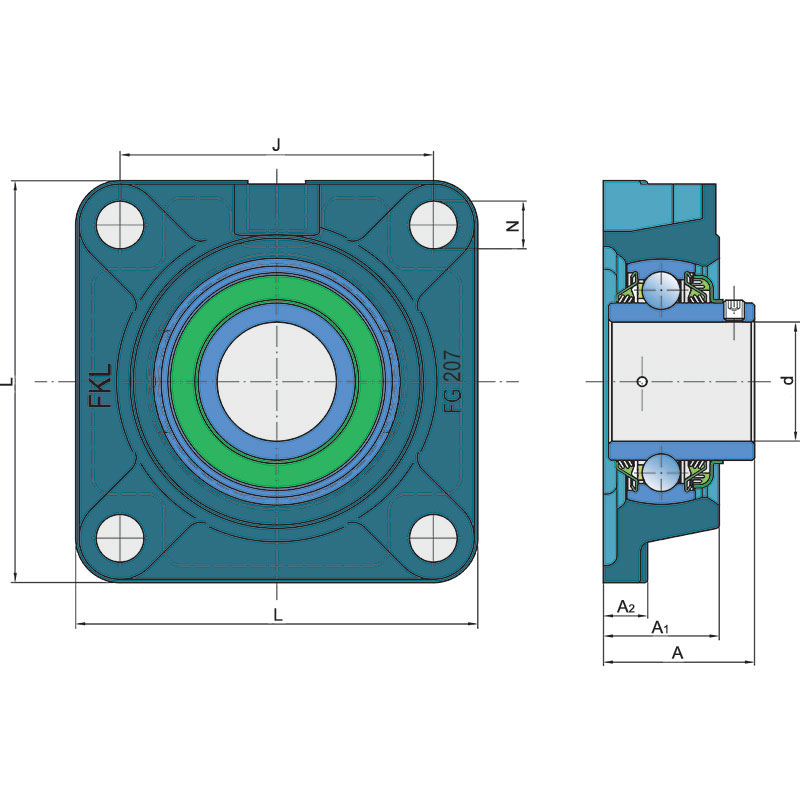

Drawings:

LEFG 207 TDT FKL

Technical datasheet:

d	Bore diameter	35
A1	Total housing width	34
A2	Housing flange thickness	13
J	Distance between the holes	92
L	Total length	118
N	Hole diameter	14
Co	Static load rating	15.3
kg	Mass	1.45
A	Overall width	44.4
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.643

Interchange:

OEM	Manufacturer	Comments
1013877	UNIA
Aw/0101	UNIA
FYJ35TF	SKF
UCF207	NSK
UCF207NAGR	SNR

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
