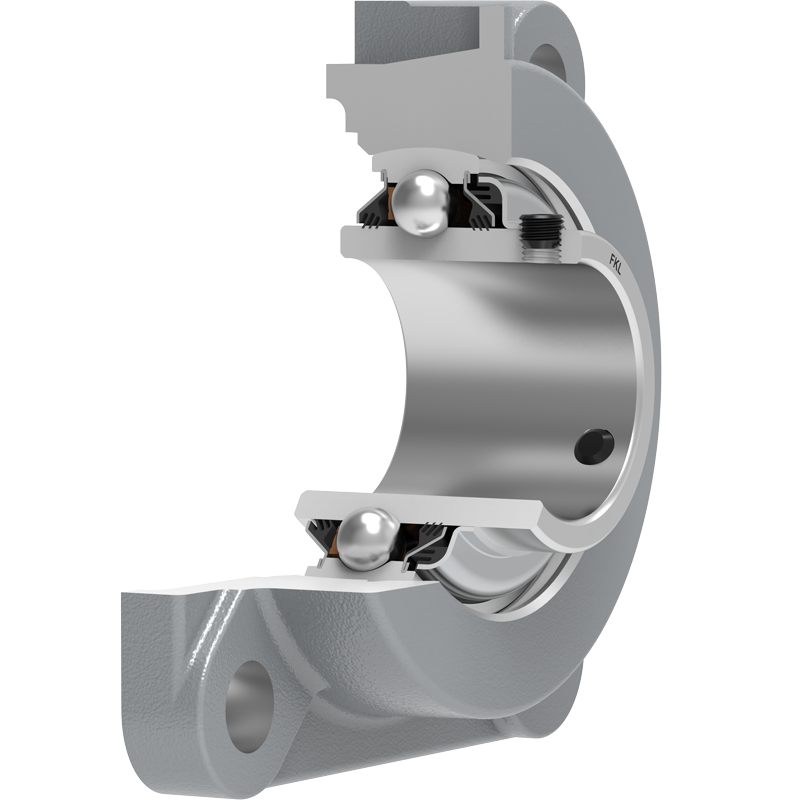

LEFG 207 TDT.H FKL

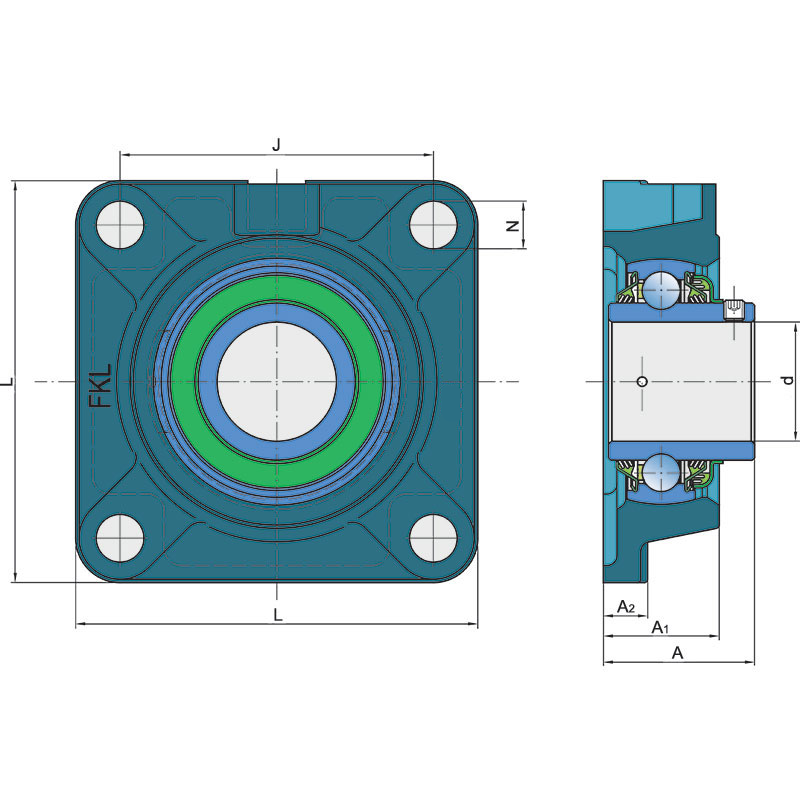

Technical datasheet:

d	Bore diameter	35
A1	Total housing width	34
A2	Housing flange thickness	13
J	Distance between the holes	92
L	Total length	118
N	Hole diameter	14
A	Overall width	44.4
kg	Mass	1.45
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.643

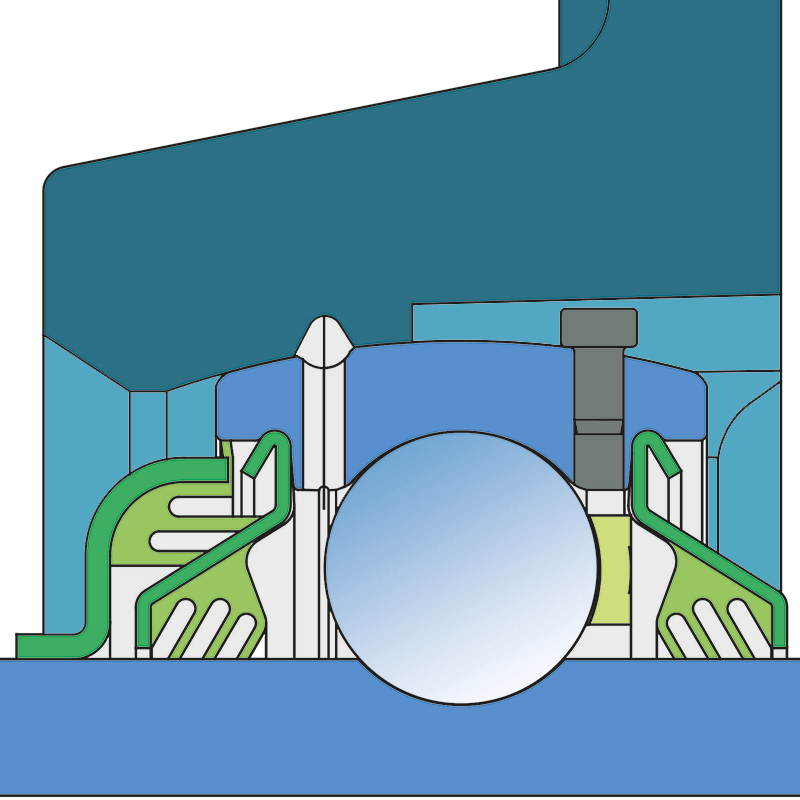

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
