LEFG 208 TDT FKL

Net price:

32.745 €/pcs

Main warehouse:

On stock

6 pcs

Product number:

LEFG 208 TDT

Brand:

FKL

Product name:

csapágyegység

Catalog:

Catalog #1: https://www.fkl-serbia.com/product.php?id=180&gr=6

Catalog #2: LEFG208TDT.pdf

Replacements:

UCF 208 AGR LP LE 208 TDT+FG 208

Inquiry Subscribe

Product details from catalogue

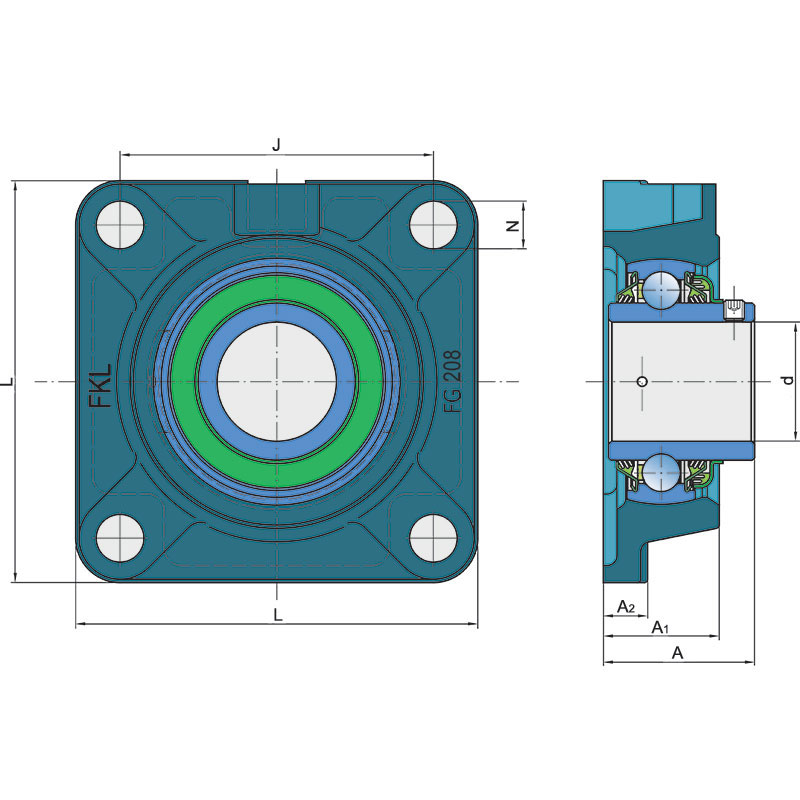

Drawings:

LEFG 208 TDT FKL

Technical datasheet:

d	Bore diameter	40
A1	Total housing width	36
A2	Housing flange thickness	14
J	Distance between the holes	102
L	Total length	130
N	Hole diameter	16
A	Overall width	51.2
kg	Mass	1.95
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.798

Interchange:

OEM	Manufacturer	Comments
FYJ40TF	SKF
UCF208	NSK
UCF208AGRLP	SNR

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
