LEFG 208 TDT*U FKL

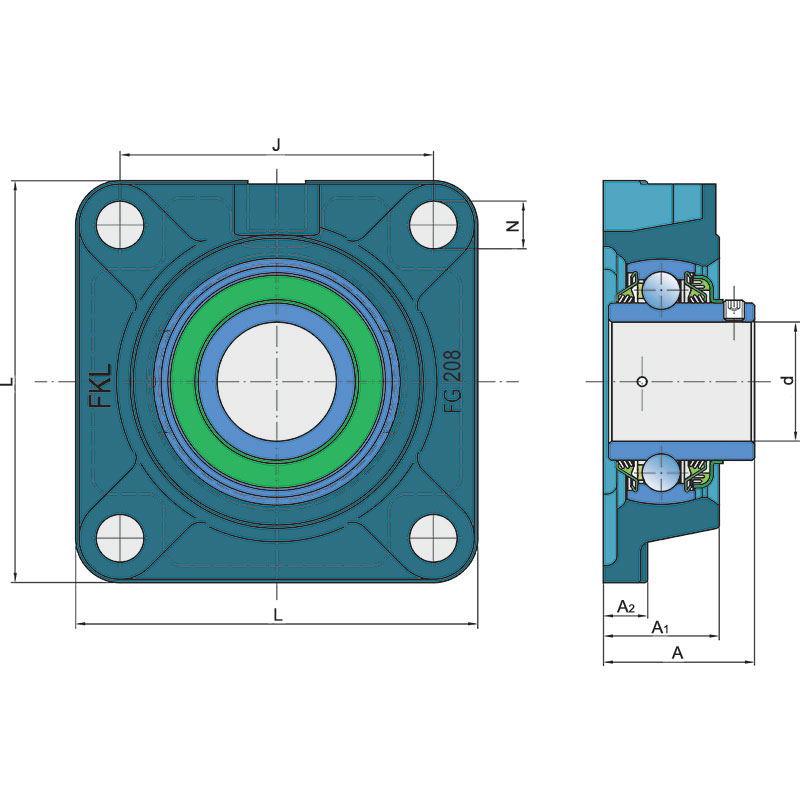

Technical datasheet:

d	Bore diameter	40
A1	Total housing width	36
A2	Housing flange thickness	14
J	Distance between the holes	102
L	Total length	130
N	Hole diameter	14
A	Overall width	51.2
kg	Mass	1.95
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.798

Interchange:

OEM	Manufacturer	Comments
1013875	UNIA
AU/0798	UNIA

DOUBLE T SEAL / T SEAL

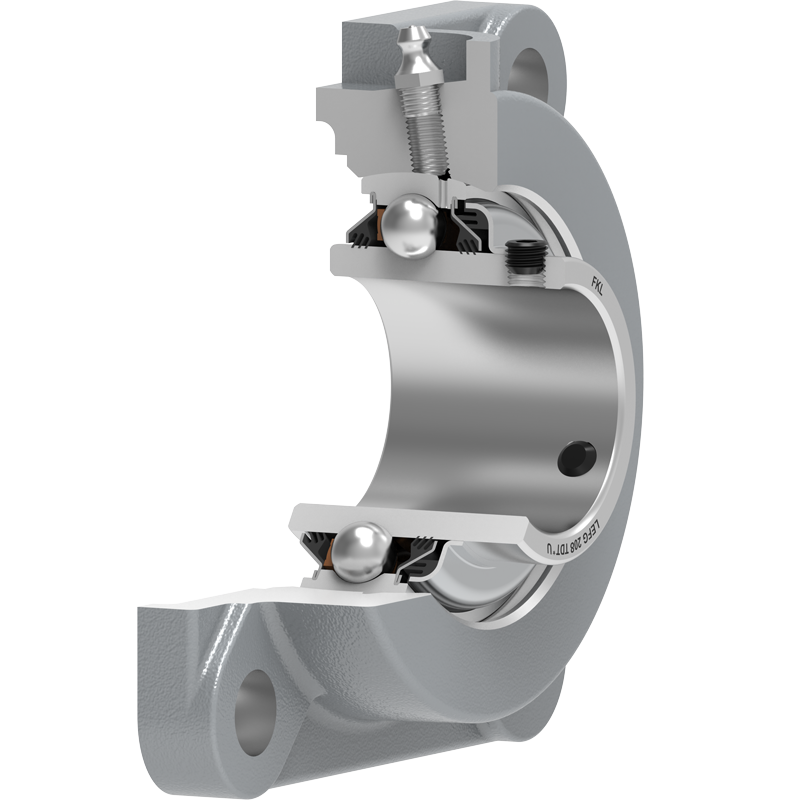

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
