LEFG 209 TDT FKL

Net price:

31.784 €/pcs

Main warehouse:

On stock

6 pcs

Product number:

LEFG 209 TDT

Brand:

FKL

Product name:

csapágyegység

Replacements:

M13082 (Farmet) UCF 209 TDT

Inquiry Subscribe

Product details from catalogue

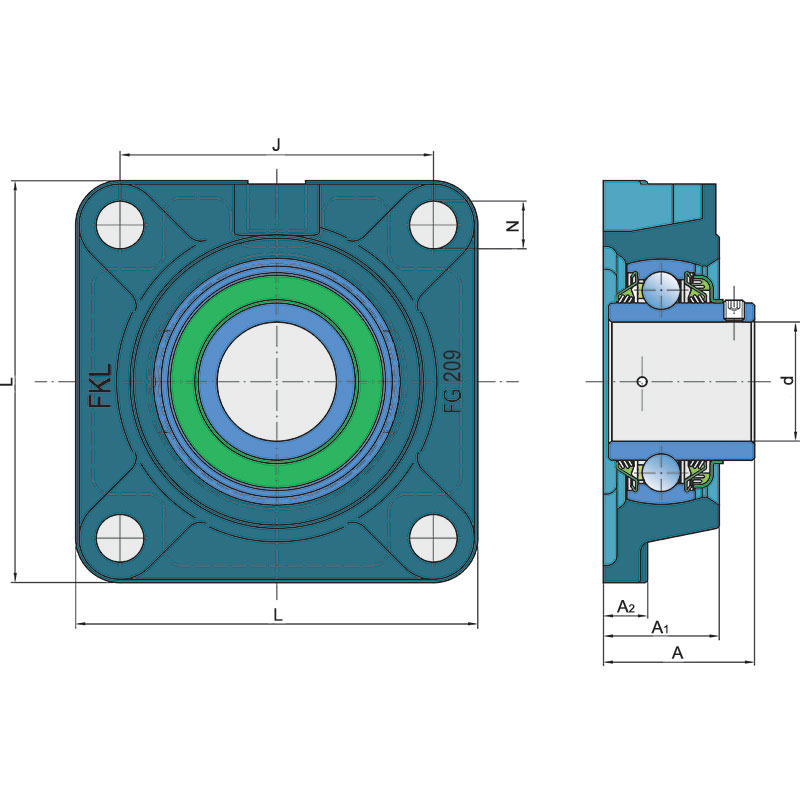

Drawings:

LEFG 209 TDT FKL

Technical datasheet:

d	Bore diameter	45
A1	Total housing width	38
A2	Housing flange thickness	16
J	Distance between the holes	105
L	Total length	137
N	Hole diameter	16
A	Overall width	52.2
kg	Mass	2.41
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.907

Interchange:

OEM	Manufacturer	Comments
FYJ45TF	SKF
UCF209	NSK

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
