LEFG 209 TDT.H FKL

Technical datasheet:

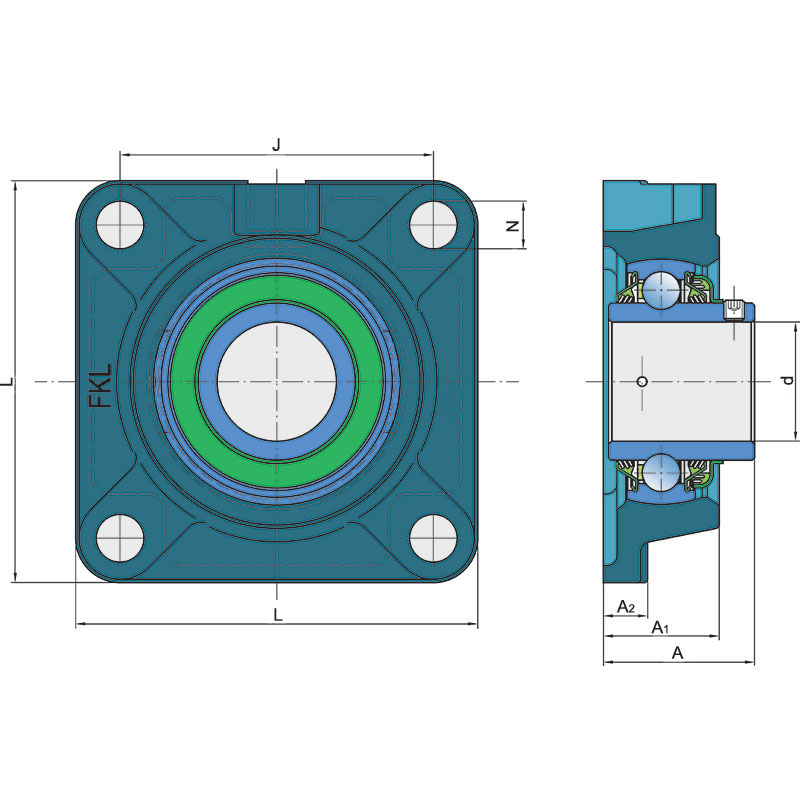

d	Bore diameter	45
A1	Total housing width	38
A2	Height of the housing	16
J	Distance between the holes	105
L	Total length	137
N	Hole diameter	16
A	Overall width	52.2
kg	Mass	2.15
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.907

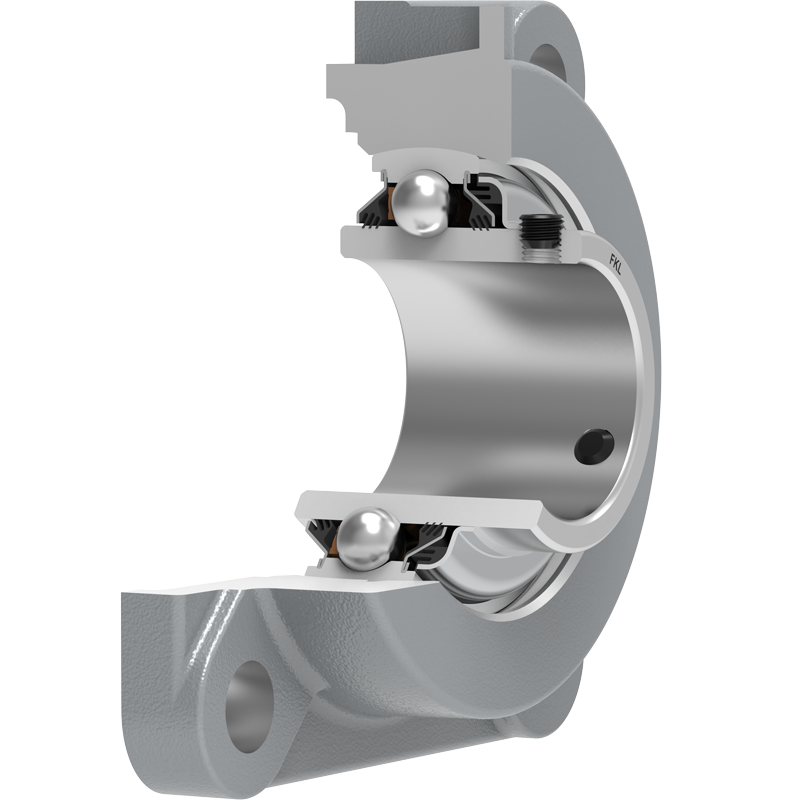

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
