LEFG 210 TDT FKL

Net price:

40.439 €/pcs

Main warehouse:

On stock

4 pcs

Product number:

LEFG 210 TDT

Brand:

FKL

Product name:

csapágyegység

Catalog:

Catalog #1: https://www.fkl-serbia.com/product.php?id=182&gr=6

Replacements:

XD-UCF210-50MM-XB-AP-TLSLU117 D-UCF 210 A10 AGR LE 210 TDT + HOUSE

Inquiry Subscribe

Product details from catalogue

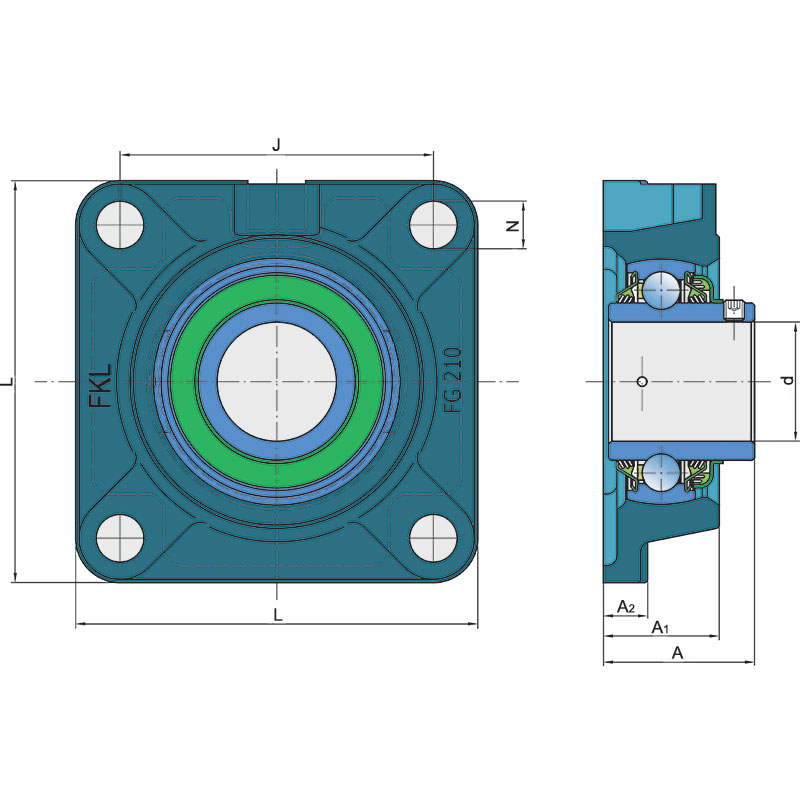

Drawings:

LEFG 210 TDT FKL

Technical datasheet:

d	Bore diameter	50
A1	Total housing width	40
A2	Housing flange thickness	16
J	Distance between the holes	111
L	Total length	143
N	Hole diameter	16
A	Overall width	54.6
kg	Mass	2.78
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.974

Interchange:

OEM	Manufacturer	Comments
D-UCF210A10AGR	SNR
FYJ50TF	SKF
UCF210	FAG
XD-UCF 210-50MM-XB-AP-TLSU117	PEER

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
