LEFG 210 TDT*U FKL

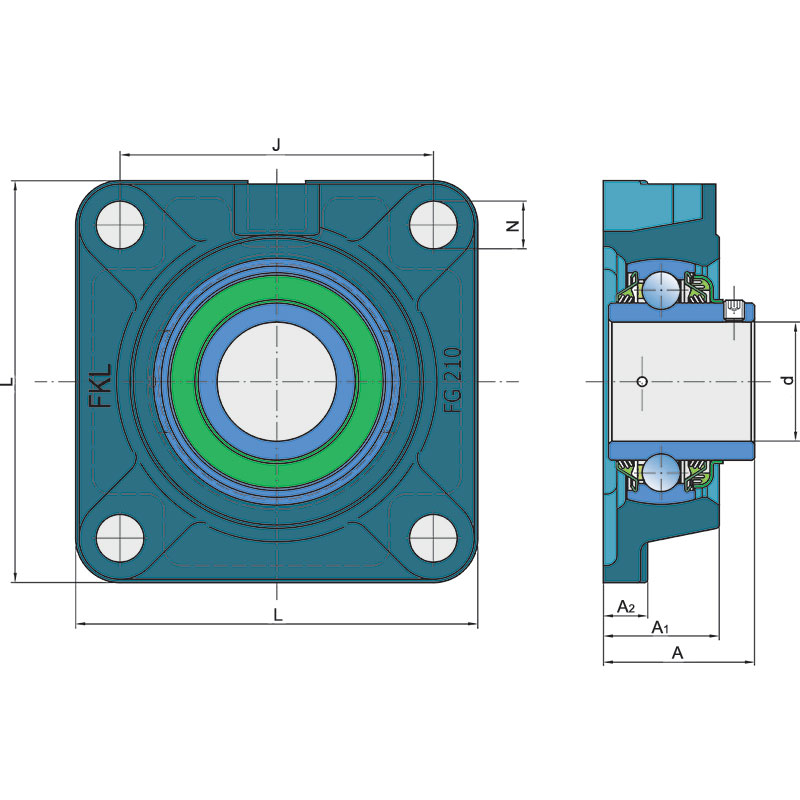

Technical datasheet:

d	Bore diameter	50
A1	Total housing width	40
A2	Housing flange thickness	16
J	Distance between the holes	111
L	Total length	143
N	Hole diameter	16.5
A	Overall width	54.6
kg	Mass	2.78
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.974

Interchange:

OEM	Manufacturer	Comments
1013874	UNIA
AU/0799	UNIA

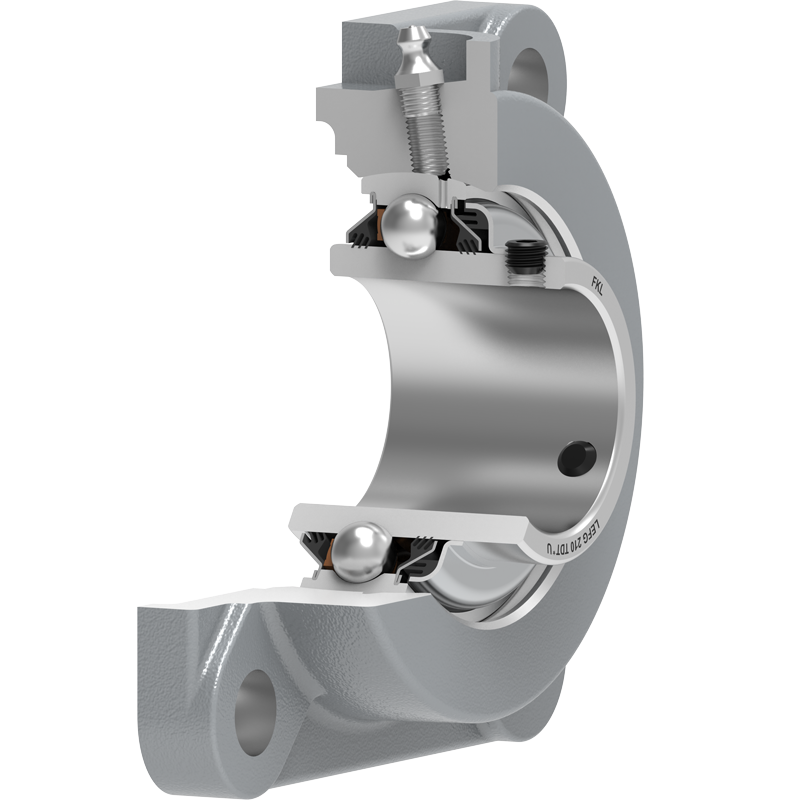

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
