LEFG 211 TDT.H FKL

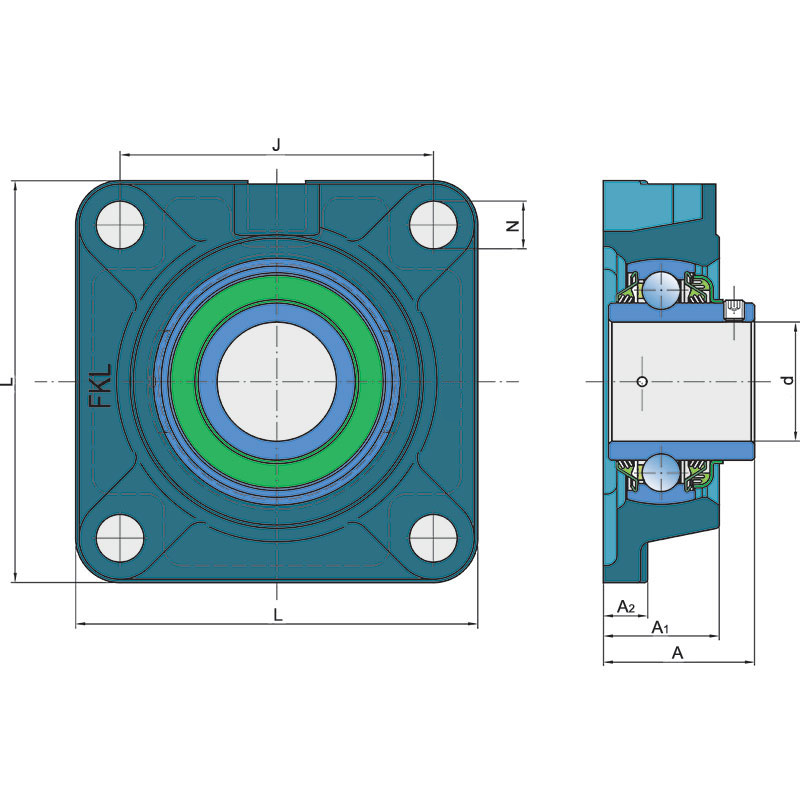

Technical datasheet:

d	Bore diameter	55
A1	Total housing width	43
A2	Housing flange thickness	17
J	Distance between the holes	130
L	Total length	162
N	Hole diameter	19
A	Overall width	59.8
kg	Mass	3.55
Cdyn	Dynamic load rating	43.6
Co	Static load rating	29
Pu	Fatigue load limit	1.218

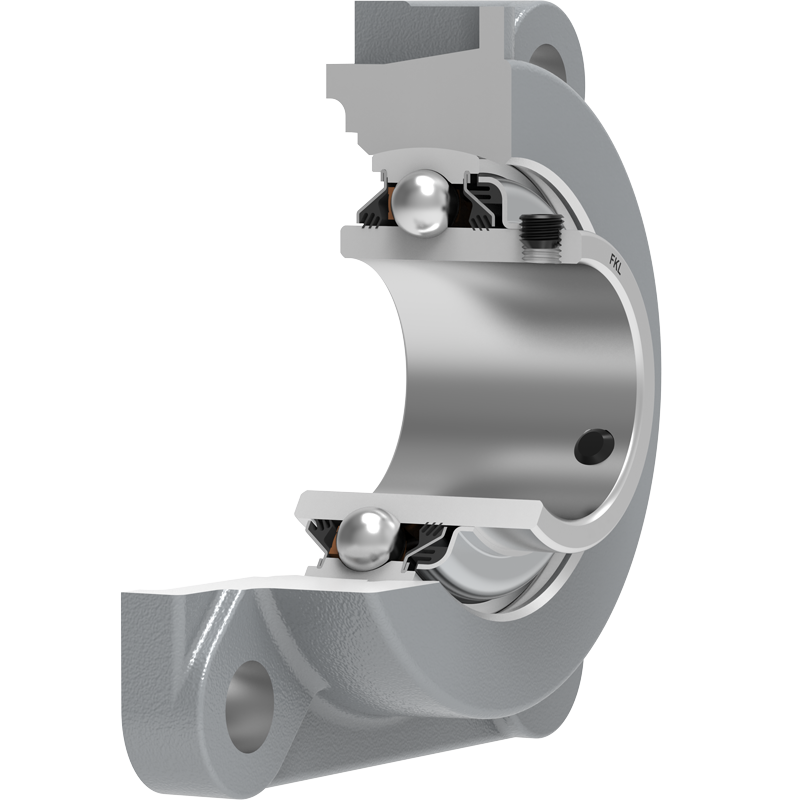

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
