LEFG 212 TDT FKL

Net price:

82.431 €/pcs

Main warehouse:

On stock

2 pcs

Product number:

LEFG 212 TDT

Brand:

FKL

Product name:

csapágyegység

Replacements:

D-UCF 212 A10 AGR

Inquiry Subscribe

Product details from catalogue

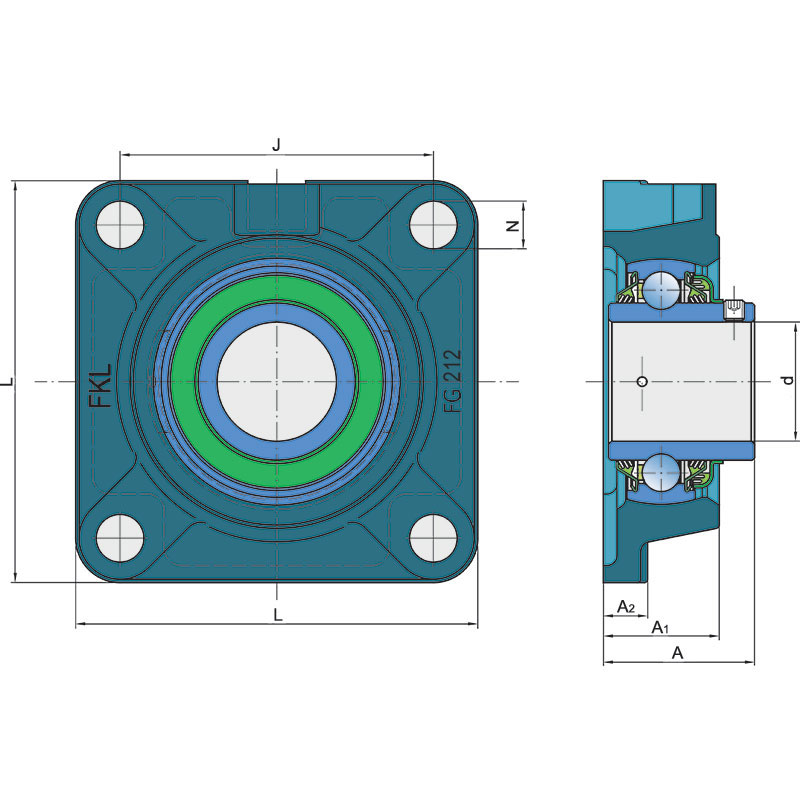

Drawings:

LEFG 212 TDT FKL

Technical datasheet:

d	Bore diameter	60
A1	Total housing width	48
A2	Housing flange thickness	19
J	Distance between the holes	143
L	Total length	175
N	Hole diameter	19
A	Overall width	68.5
kg	Mass	4.64
Cdyn	Dynamic load rating	52
Co	Static load rating	36
Pu	Fatigue load limit	1.512

Interchange:

OEM	Manufacturer	Comments
1013873	UNIA
AU/02657	UNIA
D-UCF212A10AGR	SNR
FYJ60TF	SKF
UCF212	NSK

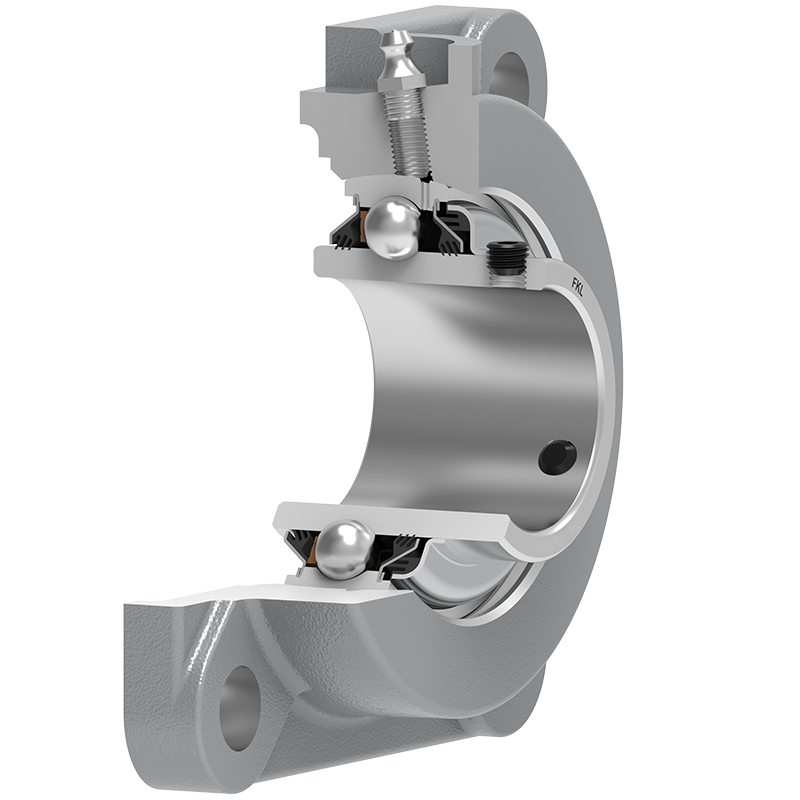

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
