LEFG 214 TDT FKL

Net price:

96.977 €/pcs

Main warehouse:

On stock

4 pcs

Product number:

LEFG 214 TDT

Brand:

FKL

Product name:

csapágyegység

Inquiry Subscribe

Product details from catalogue

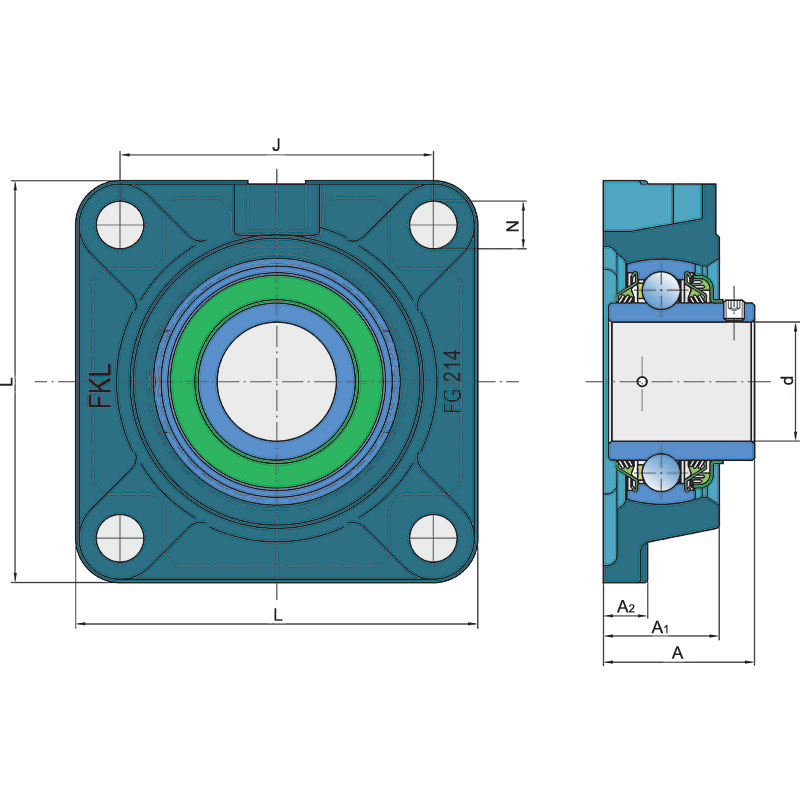

Drawings:

LEFG 214 TDT FKL

Technical datasheet:

d	Bore diameter	70
A1	Total housing width	50.3
A2	Housing flange thickness	21.3
J	Distance between the holes	152
L	Total length	193
N	Hole diameter	19
A	Overall width	70.7
kg	Mass	6.2
Cdyn	Dynamic load rating	62.4
Co	Static load rating	44
Pu	Fatigue load limit	1.848

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
