LEFN 207 2T FKL

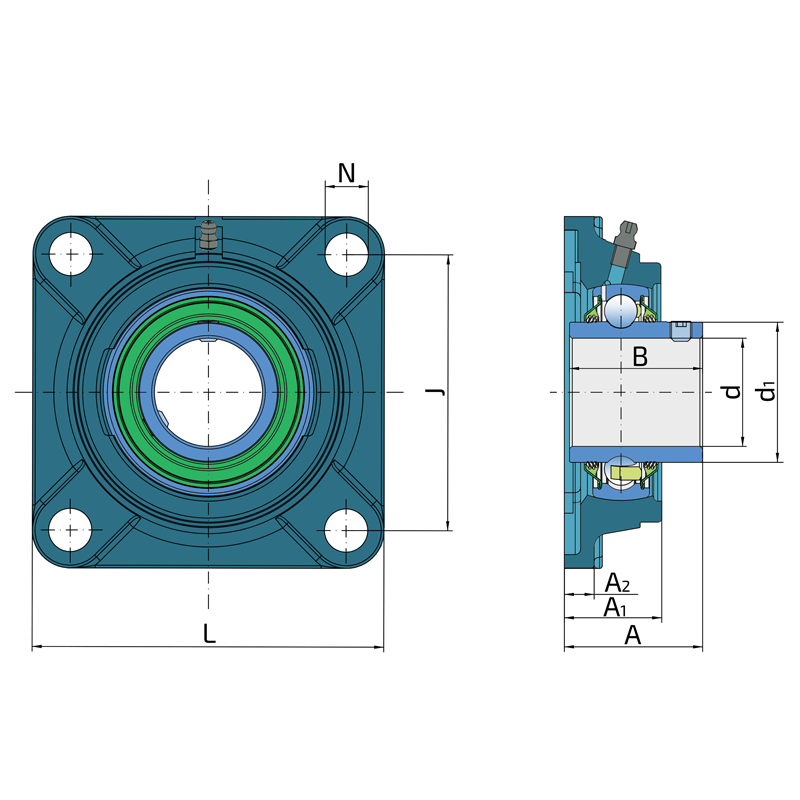

Technical datasheet:

d	Bore diameter	35
d1	Outer diameter inner ring	46.1
L	Total length	118
J	Distance between the holes	92
N	Hole diameter	14
A	Overall width	44.4
A1	Total housing width	34
A2	Housing flange thickness	13
B	Width inner ring	42.9
kg	Mass	1.4
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.643

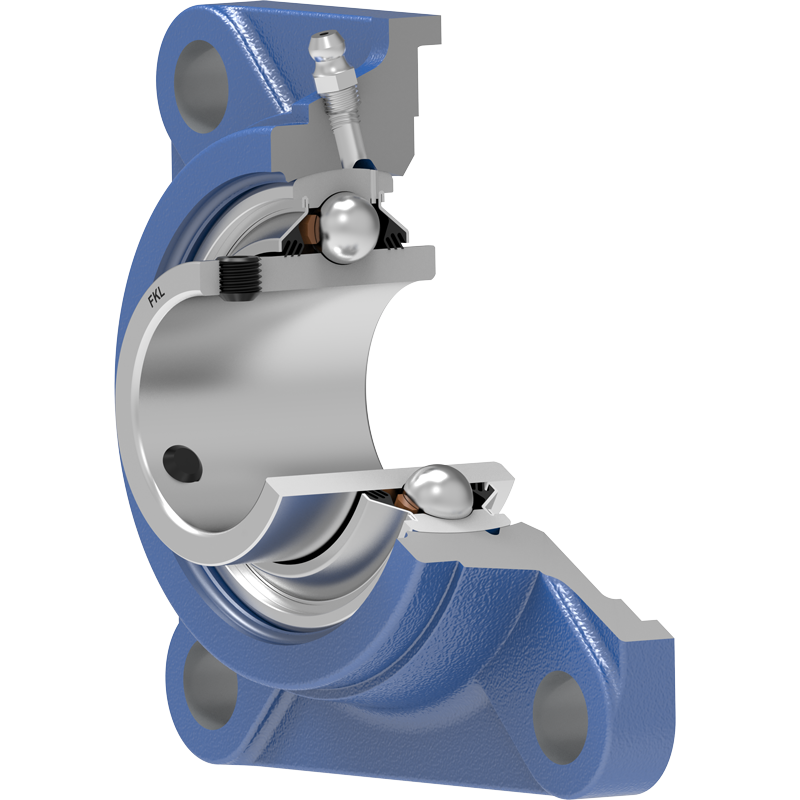

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
