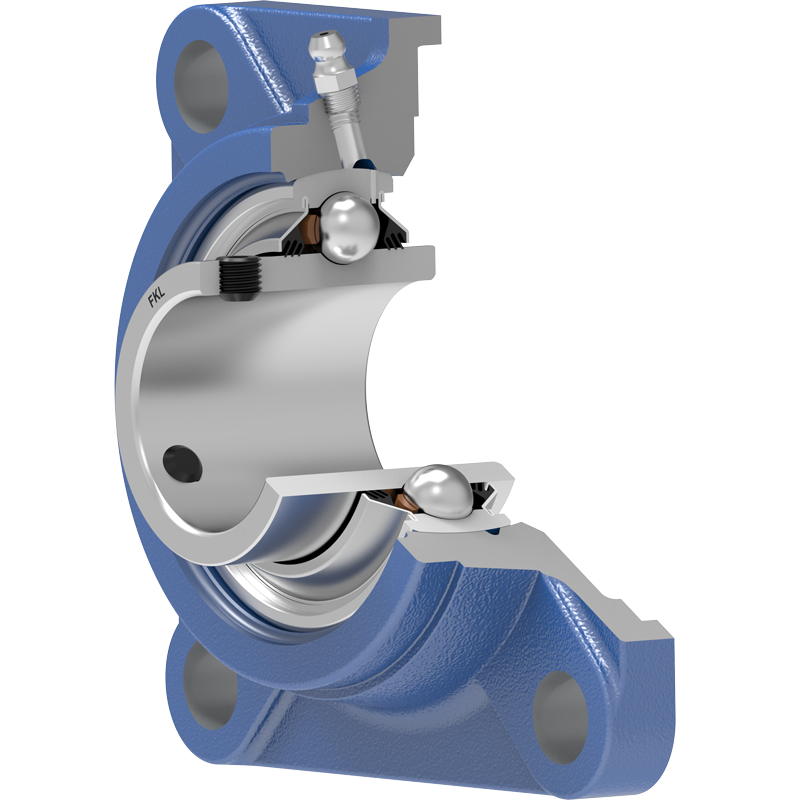

LEFN 208 2T FKL

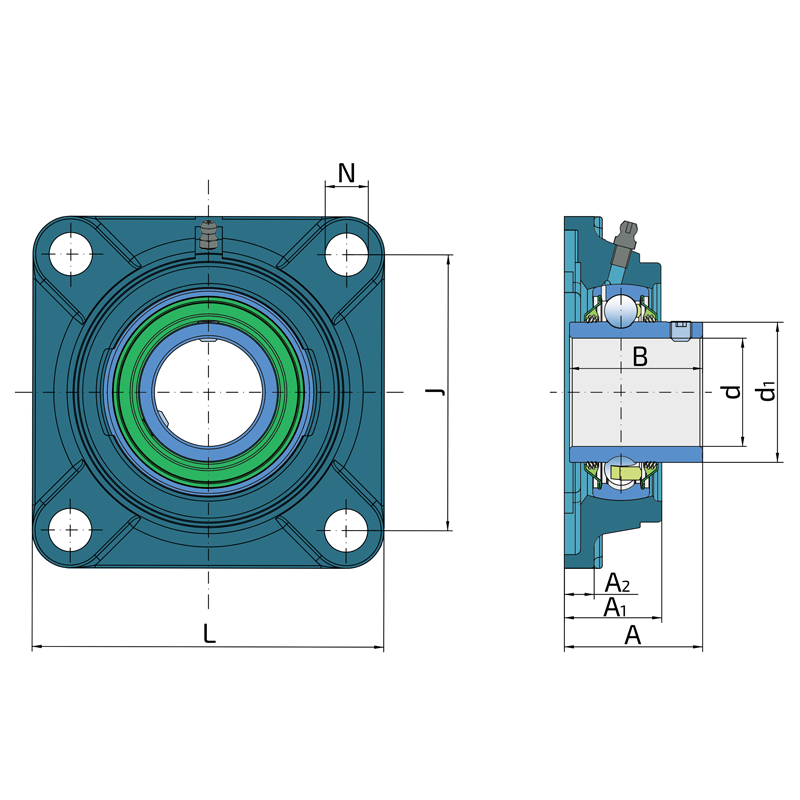

Technical datasheet:

d	Bore diameter	40
d1	Outer diameter inner ring	51.8
L	Total length	130
J	Distance between the holes	102
N	Hole diameter	16
A	Overall width	51.2
A1	Total housing width	36
A2	Housing flange thickness	11
B	Width inner ring	49.2
kg	Mass	1.79
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.798

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
