Product number:

LEFN 208 2TC.H

Brand:

Product name:

bearing

Replacements:

KM040140 BEDNAR

Inquiry Subscribe

LEFN 208 2TC.H FKL

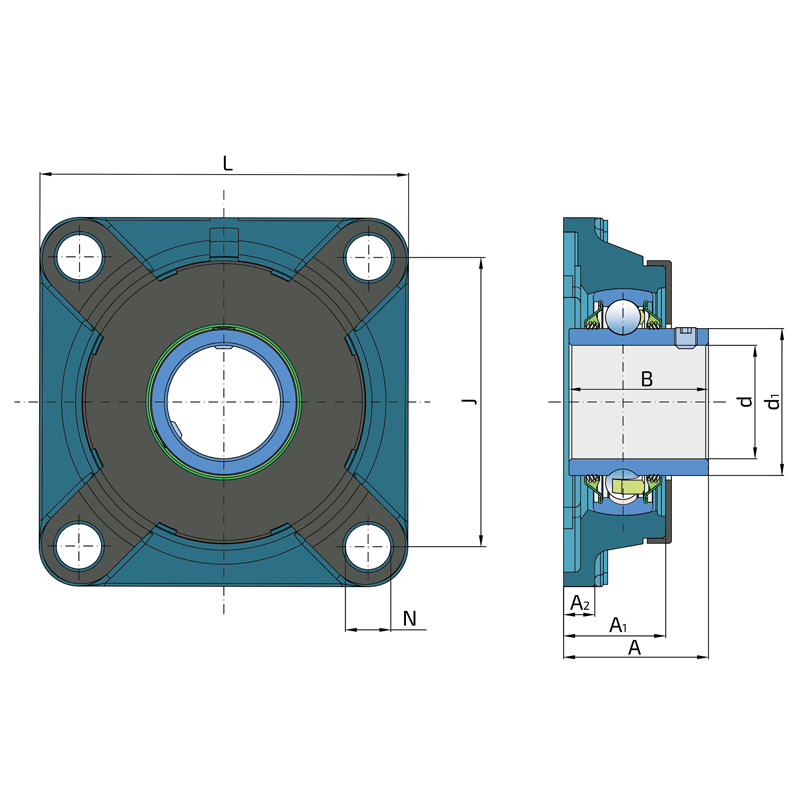

Technical datasheet:

d	Bore diameter	40
d1	Outer diameter inner ring	51.8
L	Total length	130
J	Distance between the holes	102
N	Hole diameter	16
A	Overall width	51.2
A1	Total housing width	36
A2	Housing flange thickness	14
B	Width inner ring	49.2
kg	Mass	2.1
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.798

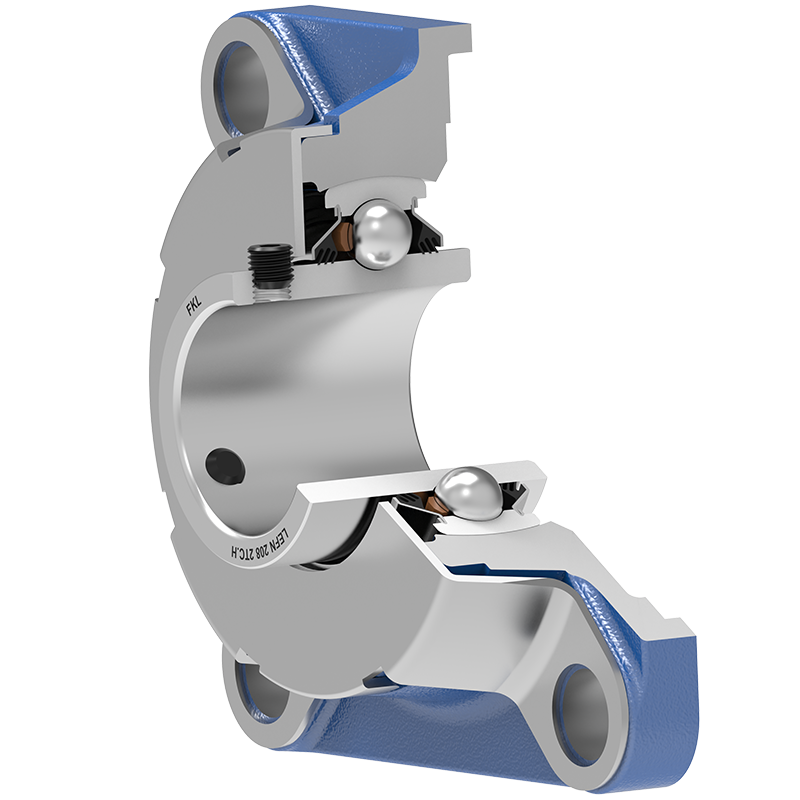

T SEAL / T SEAL+METAL COVER

3-lip seal on the base side and 3-lip seal with Metal cover on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration. The Metal cover protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
