LEFN 209 2T FKL

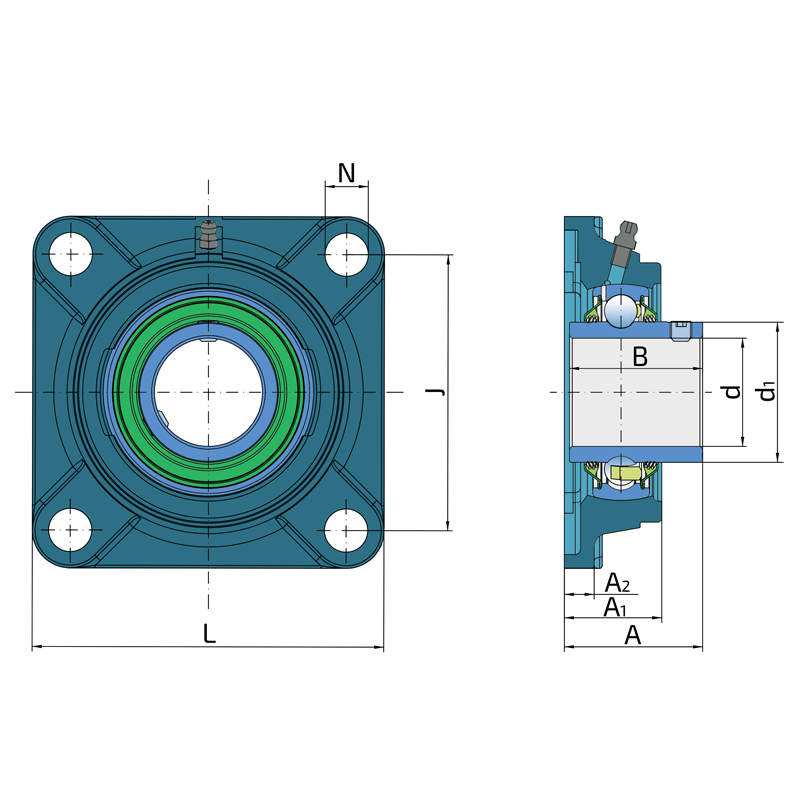

Technical datasheet:

d	Bore diameter	45
d1	Outer diameter inner ring	56.6
L	Total length	137
J	Distance between the holes	105
N	Hole diameter	16
A	Overall width	52.2
A1	Total housing width	38
A2	Housing flange thickness	12
B	Width inner ring	49.2
kg	Mass	2.25
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
Pu	Fatigue load limit	0.857

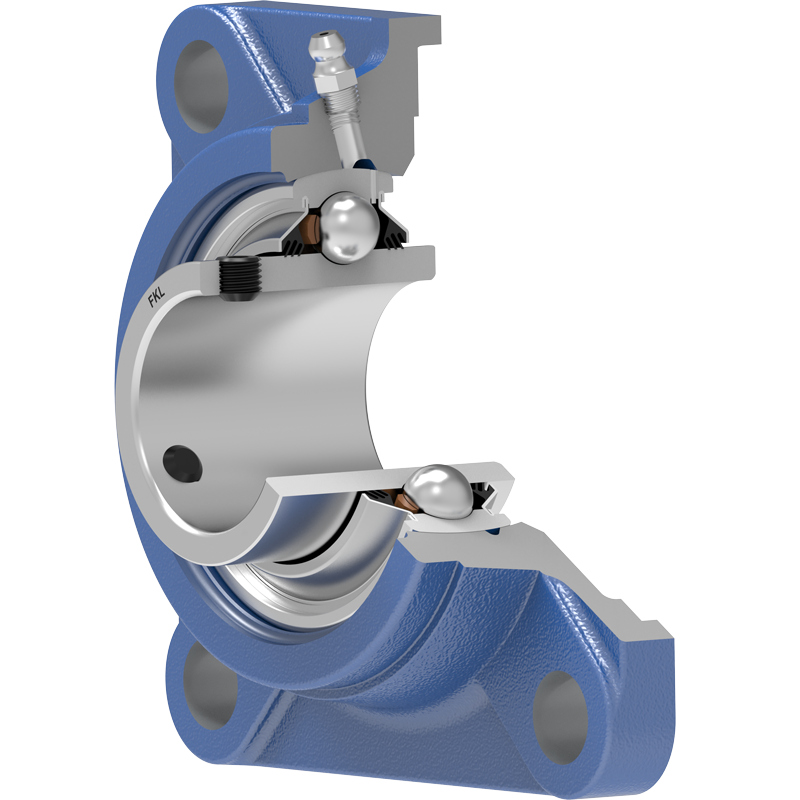

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
