Product number:

LEFN 210 2PC.H

Brand:

Product name:

csapágyegység

Inquiry Subscribe

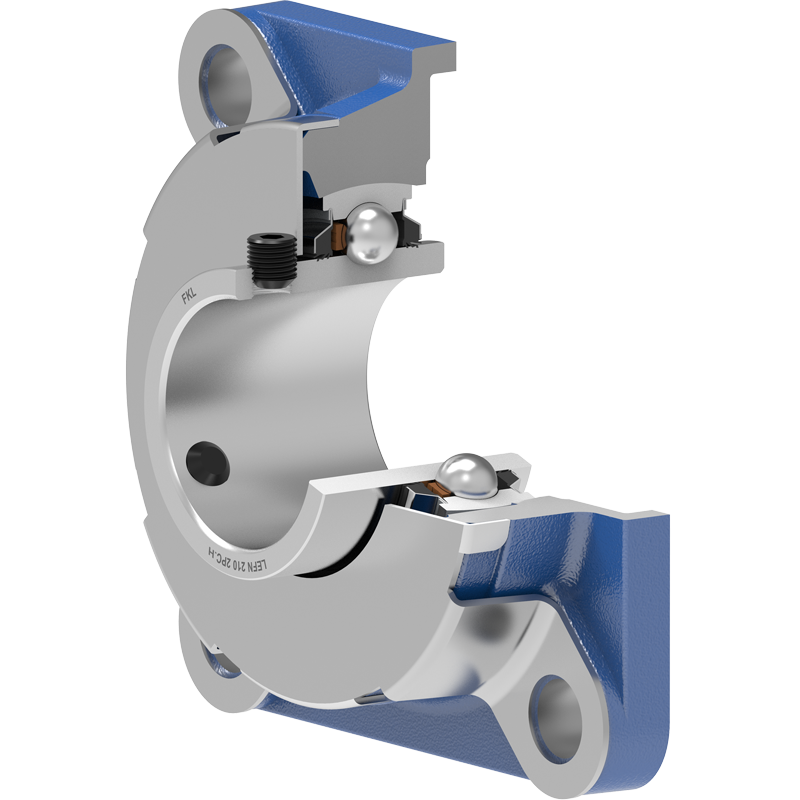

LEFN 210 2PC.H FKL

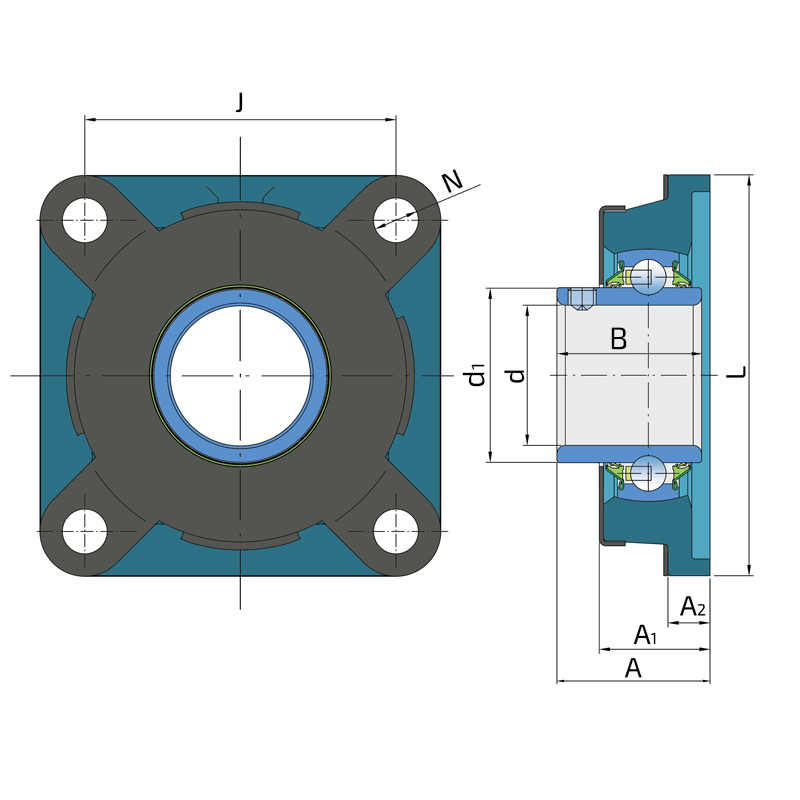

Technical datasheet:

d	Bore diameter	50
d1	Outer diameter inner ring	62.5
L	Total length	143
J	Distance between the holes	111
N	Hole diameter	16
A	Overall width	54.6
A1	Total housing width	38
A2	Housing flange thickness	15
B	Width inner ring	51.6
kg	Mass	2.8
Co	Static load rating	23.2
Cdyn	Dynamic load rating	35.1
Pu	Fatigue load limit	0.974

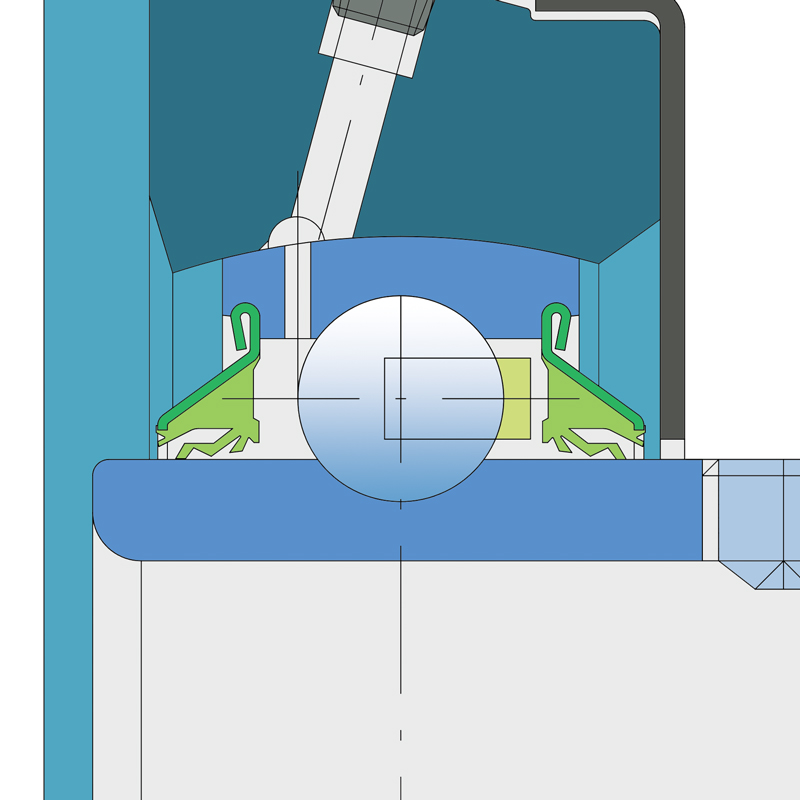

P SEAL / P SEAL + METAL COVER

Sealing P SEAL / P SEAL + METAL COVER 5-lip seal on the base side and 5-lip seal with Metal cover on the front side which is exposed to contaminants. The 5-lip seal on the front side protects the bearing from contaminant penetration. The Metal cover protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
