LEFN 210 2T FKL

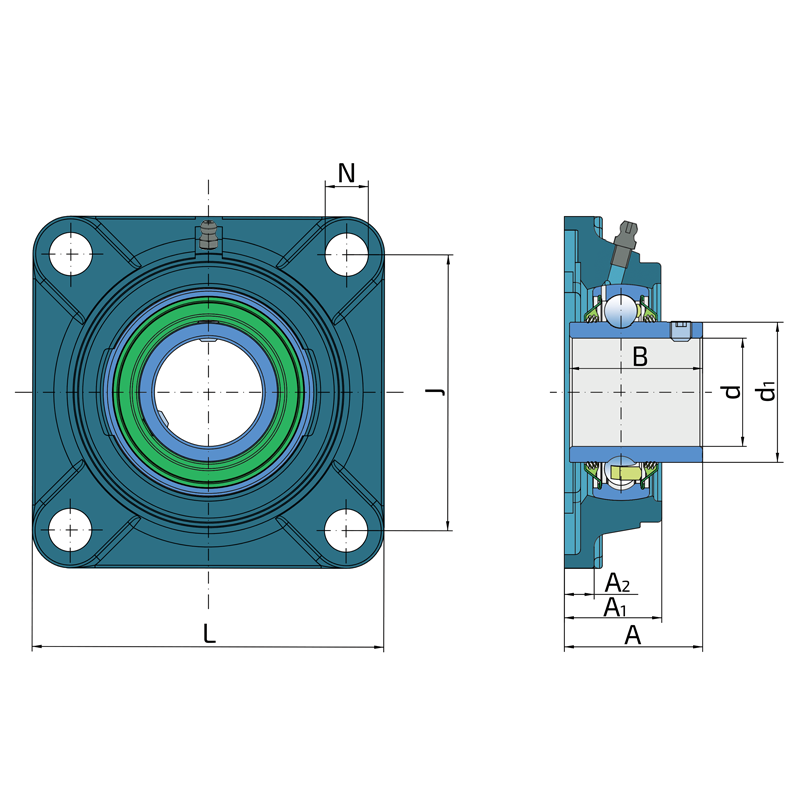

Technical datasheet:

d	Bore diameter	50
d1	Outer diameter inner ring	62.5
L	Total length	143
J	Distance between the holes	111
N	Hole diameter	19 H13
A	Overall width	54.6
A1	Total housing width	40
A2	Housing flange thickness	11
B	Width inner ring	51.6
kg	Mass	2.54
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.974

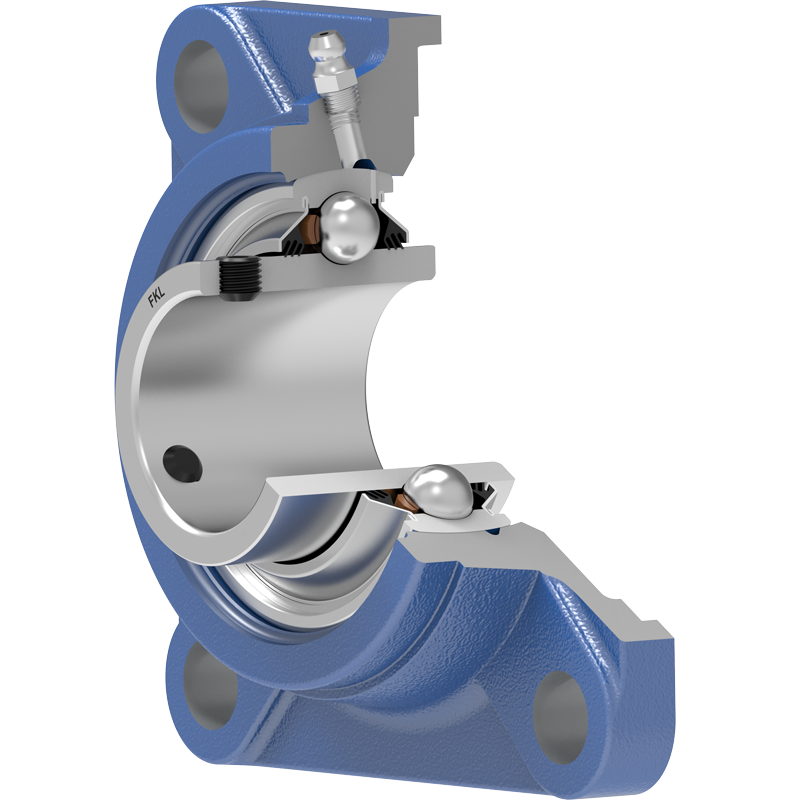

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
