LEFN 210 2TB FKL

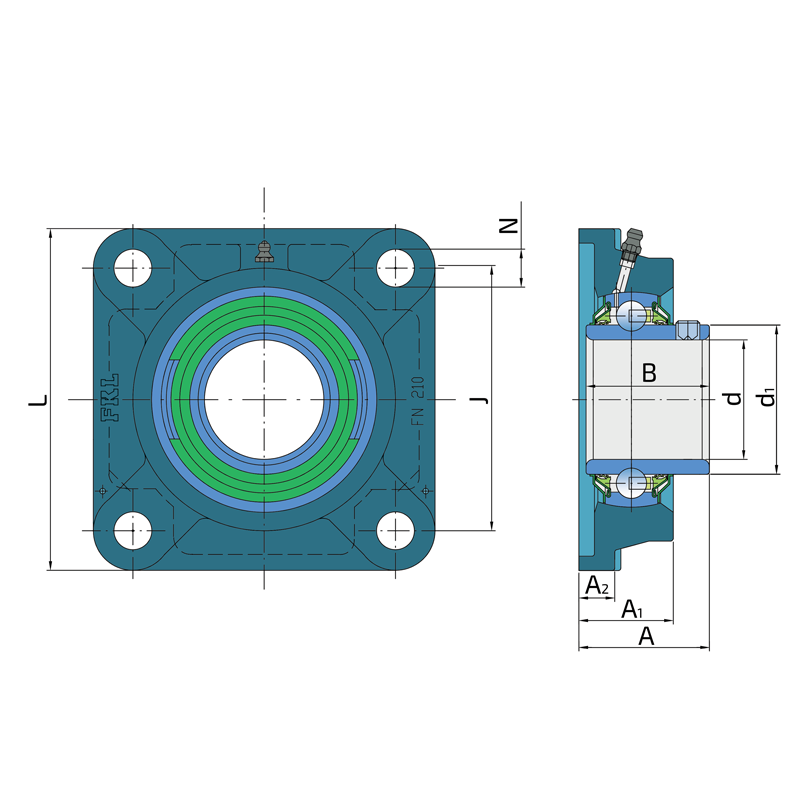

Technical datasheet:

d	Bore diameter	50
d1	Outer diameter inner ring	62.5
L	Total length	143
J	Distance between the holes	111
N	Hole diameter	O 16H13
A	Overall width	54.6
A1	Total housing width	40
A2	Housing flange thickness	11
B	Width inner ring	51.6
kg	Mass	2.6
Co	Static load rating	23.2
Cdyn	Dynamic load rating	35.1
Pu	Fatigue load limit	0.974

Interchange:

OEM	Manufacturer	Comments
FYJ50TF	SKF
KM040015	BEDNAR
UCF210	NSK

PB SEAL / PB SEAL (2PB)

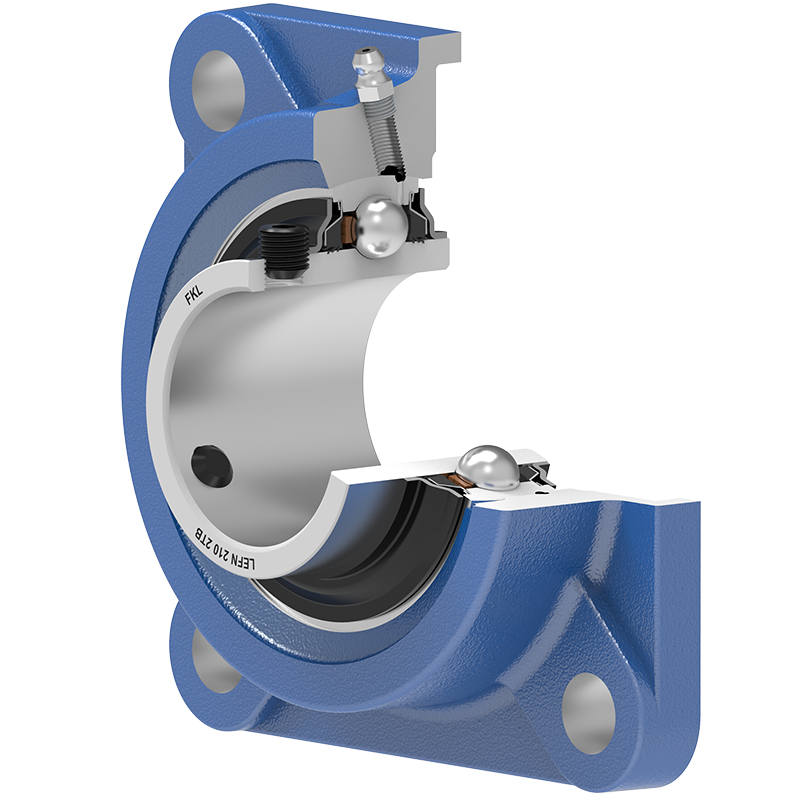

A 5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. 5-lip seal provides a high level of the bearing protection from impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects the seal from mechanical damage.
